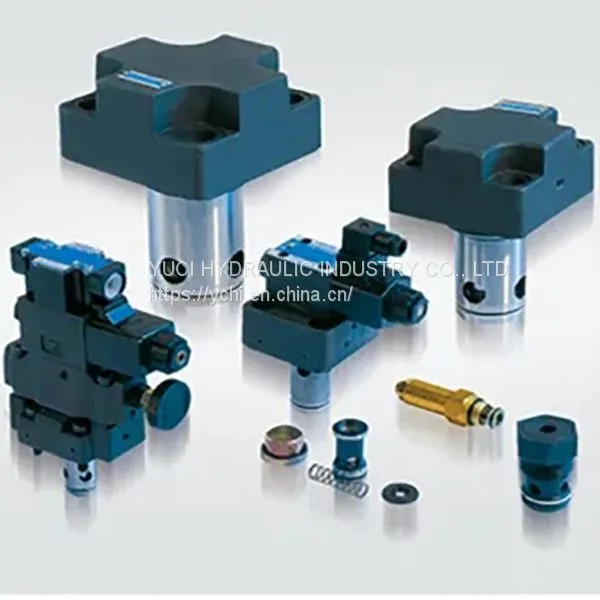

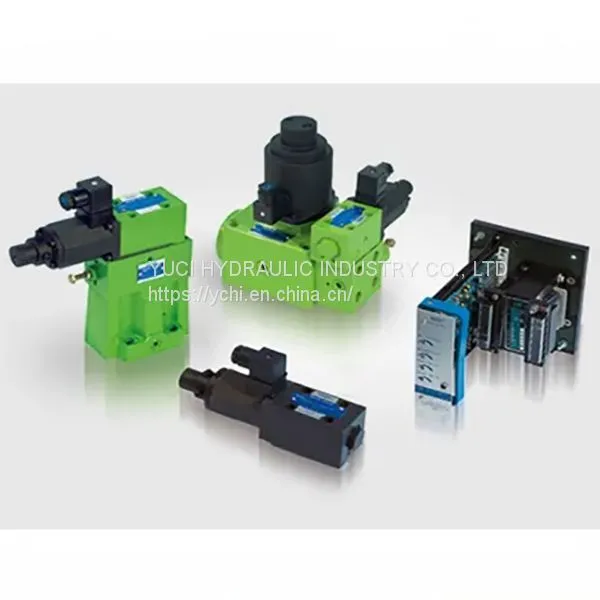

Hydraulic Directional Cartridge Valve With Solenoid Directional Valve
US$ 15 - 55
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MEDOX
Place of Origin:
China
Model Number:
F-LDS-32-05-S-1-O-X05-A100-C-N-12
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HONGKONG
Delivery Detail:
3 days
Related Products
-
Hydraulic Overflow Cartridge ValveUS$ 15 - 55MOQ: 1 Piece -
Hydraulic Overflow Cartridge Valve With Solenoid Reversing Valve; Proportional Cartridge Valve; Yuken Hydraulic Directional Valve; Hydraulic Check ValveUS$ 15 - 55MOQ: 1 Piece
-
High Pressure Valve-Hydraulic Cartridge Valve-Control Cover (with Reversing Valve)US$ 15 - 55MOQ: 1 Piece
-
Cast Iron Hydraulic Body Valves Two-Way Cartridge Directional ValveUS$ 15 - 55MOQ: 1 Piece
-
Hydraulic Valve Series Castings-Hydraulic Control Cover (with Reversing Valve)US$ 15 - 55MOQ: 1 Piece
Brand Name
MEDOX
Place of Origin
China
Model Number
F-LDS-32-05-S-1-O-X05-A100-C-N-12
Material
Stainless Steel
Application
General
Structure
Plug
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Hydraulic
Port Size
Shenzhen/HongKong
Media
Oil
Temperature of Media
Normal Temperature
The cartridge valve is mainly composed of a cartridge-type component (insertion) and a valve cover with a pilot passage. According to the loop requirements, direction, flow and pressure control can be formed. These valves are ideal for high pressure, high flow, low pressure loss systems, and for high speed switching and shockless operation.
MODEL INSTRUCTION
| Name | Model examples | Path |
| Hydraulic Direction Flow cartridge valve | F-LD-32-05-S-1-X-05-11 | 16/25/32/40/50/63/80/100 |
| Hydraulic Directional cartridge valve with solenoid directional valve | F-LDS-32-05-S-1-O-X05-A100-C-N-12 | 25/32/40/50/63 |
| Hydraulic Overflow cartridge valve | F-LB-32-V-Z1-11 | 16/25/32/50 |
| Hydraulic Overflow cartridge valve with solenoid reversing valve | F-LBS-32-V-1-A100-C-N-12 | 16/25/32/50 |
| Hydraulic SFV active with position monitoring cartridge valve | SFV-32-3-EL-CZ-10 | 16/25/32 |
| 40 | ||
| Hydraulic pilot operated position monitoring electromagnetic cartridge valve | DSFV16-3-E-EL-CZ-D24-10 | 16/25 |
| DSLV16-3-EL-CZ-D24-10 | 16/25/32 | |
| 50 |
TECHNICAL FEATURE
01.Multi-function with direction, flow and pressure
02.There is little internal leakage and no hydraulic clamping, quick response and fast conversio
03.Low pressure drop, suitable for high pressure and large flow system
04.No leakage, noise and vibration, high reliabilit
05.Compact integration, small installation space and low cos
SPECIFICATION
| Model | Maximum working pressure(MPa) |
Maximum working pressure (L/min) |
| LD-32-*-S-1 | 31.5 | 130~5500 |
| LDS-25/32/40/50/63 | 31.5 | 350~2100 |
| LB-16/25/32/50 | 31.5 | 125~1200 |
| LBS-16/25/32/50 | 31.5 | 125~1200 |
| SFV-16/25/32/40 | 31.5 | 220~950 |
| DSF(L)V | 31.5 | 220~1200 |
APPLICATION AREA
YUKEN series valves are mainly used in high-pressure and high-flow systems such as steel equipment, injection molding machines, and various machine tools.
