Home > Industrial Equipment & Components > Power Transmission Parts > Speed Reducer > Tatung KTE2 (128B） High Efficiency Three Phase Induction Motors

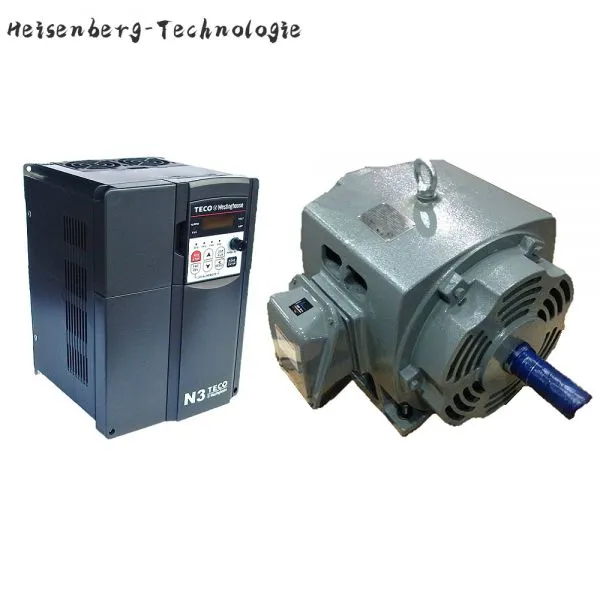

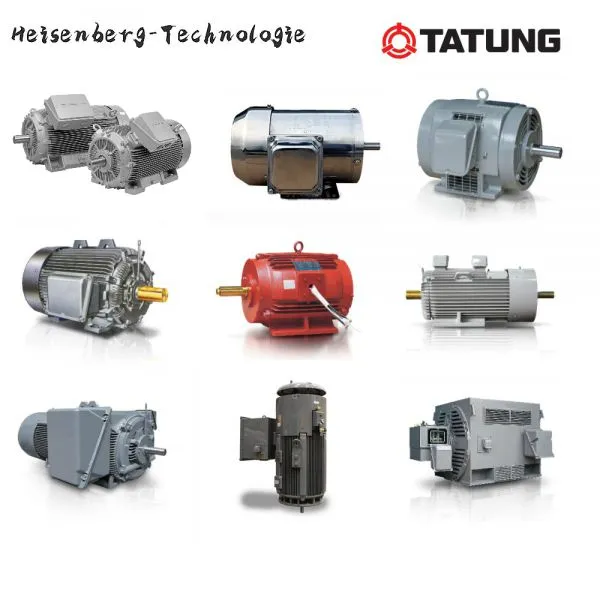

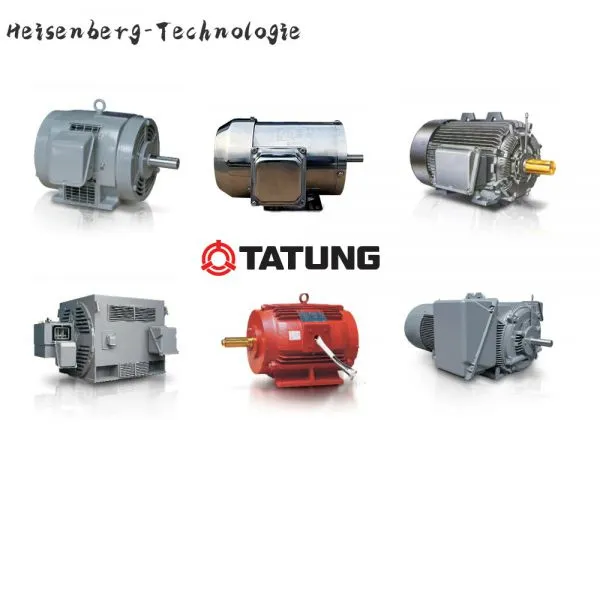

Tatung KTE2 (128B） High Efficiency Three Phase Induction Motors
US$ 1 - 222
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Tatung
Place of Origin:
China
Model Number:
+8613798579657
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
1 days
Related Products
-
Tatung Motor Heavy Electric Motor Supermax-841 TPU-CMUS$ 1 - 222MOQ: 1 Piece -
TECO Helical Gear Reducer MotorUS$ 1 - 222MOQ: 1 Piece
-
TECO Inverter Three-phase 380V T310 1.5/4/7.5/15/22/55/75KW Motor Speed ControllerUS$ 1 - 333MOQ: 1 Piece
-
Baumer HMG10 PMG10 Industrial Encoder HOG10D1024I HUEBNERUS$ 1 - 333MOQ: 1 Piece
-
SEW Eurodrive Gear Units GearmotorsUS$ 1 - 500MOQ: 1 Piece
Brand Name
Tatung
Place of Origin
China
Model Number
+8613798579657
Rated Power
80V,415V,440V,460V
Output Speed
100-3000
Input Speed
100-2000
Output Torque
280kW ~ 630kW
Gearing Arrangement
Helical
Large Low Voltage TS21FV Series
Output : 280kW ~ 630kW
Poles : 4P ~ 10P
Frame size : N315LL ~ N400LL
(IEC / METRIC)
Frequency : 50Hz, 60Hz
Poles : 4P ~ 10P
Frame size : N315LL ~ N400LL
(IEC / METRIC)
Frequency : 50Hz, 60Hz
Large Low Voltage TS21FV Series
Output : 280kW ~ 630kW
Poles : 4P ~ 10P
Frame size : N315LL ~ N400LL
(IEC / METRIC)
Poles : 4P ~ 10P
Frame size : N315LL ~ N400LL
(IEC / METRIC)
Frequency : 50Hz, 60Hz
STANDARD SPECIFICATIONS
Output : 280kW ~ 630kW
Poles : 4P ~ 10P
Frame size : N315LL ~ N400LL (IEC / METRIC)
Voltage : 380V,415V,440V,460V
Frequency : 50Hz, 60Hz
Enclosure : Totally Enclosed Fan Cooled (TEFC)
Mounting : Vertical Flange Mounted
Insulation : Class F
Temperature rise : Class B (80℃ by Resistance Method at S.F. 1.0)
Environment : Ambient Temperature 40℃
PREMIUM FEATURES
| Features | Standard |
Available Option |
| Frame |
Cast iron | Fabricated steel |
| Bearing Housings |
Cast iron or Fabricated steel | N/A |
| Main Terminal Box |
Cast iron | Large Fabricated steel |
| Auxiliary Boxes |
Cast iron | NEMA 4X |
| Shaft |
AISI 1045 for N315LL-N355LL AISI 1035 for N400LL |
AISI 4140 |
| Rotor |
Die cast aluminum for N315LL & most N355LS\LL frames, fabricated copper for N400LL | Fabricated copper for N315LL-N355LL frames |
| Lamination Material |
High grade low loss silicon steel | N/A |
| External Cooling Fan |
Aluminum or Fabricated steel |
Copper available |
| Fan Cover |
Fabricated steel | N/A |
| Insulation |
Class F random wound | N/A |
| Paint \ Color |
PU \ Wooden Grey(Munsell 7.5Y 8.9/0.4) | Special paint system \ Other colors |
| Bearing Type |
N.D.E Angular or Spherical bearing, N.E. Ball bearing |
High thrust plate bearing |
| Vibration | 0.12 IPS or as defined by NEMA | Special balance |
