sew eurodrive motor gearbox

ALLS  HAVE STOCK

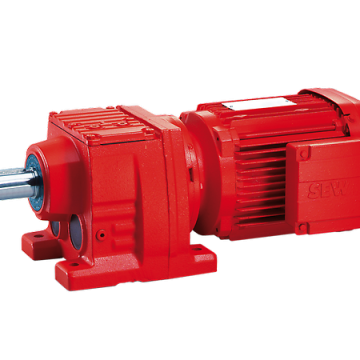

R series helical gear motor

Solid shaft, flange or foot mounting, can be used as the input stage part of multi-stage gearbox

Output speed: 0.05-1829rpm

Output torque/power: 50-18,000 Nm/ 0.12-160 kW

Frame number: R17/R27/R37/R47/R57/R67/R77/R87/R97/R107/R137/R147/R16

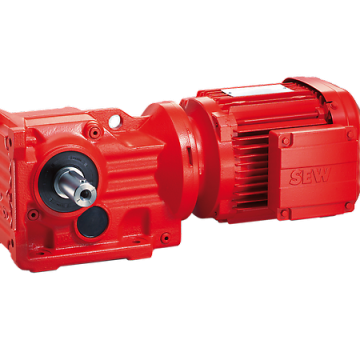

K series helical gear-bevel gear reducer motor

Three-stage helical gear-bevel gear has large output torque, hollow shaft or solid shaft, flange, foot or torque arm installation

Transmission efficiency is up to 98%, small size, light weight, low vibration and low noise

Output speed: 0.1-522 rpm

Output torque/power: 200-50,000 Nm/ 0.12-200 kW

Frame number: K37/K37/K47/K47/K57/K67/K77/K87/K97/K107/K127/F157/K16

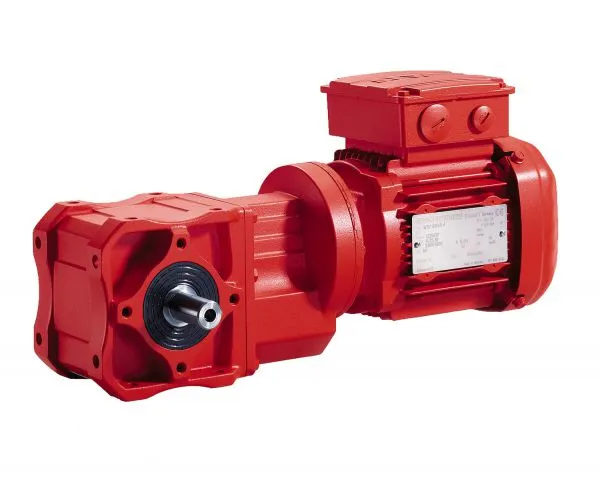

S series helical gear-worm gear motor

Secondary helical gear-worm gear, hollow shaft or solid shaft, flange, foot or torque arm installation

Transmission efficiency is up to 93%, small size, light weight, low noise, stable operation

Output speed: 0.1-397 rpm

Output torque/power: 70-4,200 Nm/0.12-22 kW

Frame number: S37/S47/S57/S67/S77/S87

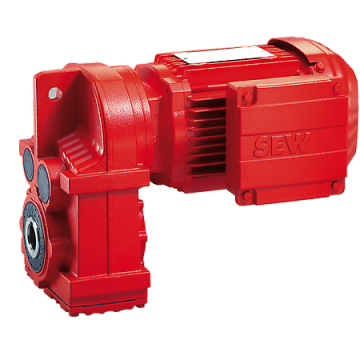

F parallel shaft helical gear motor

The series is compact and slim, hollow shaft or solid shaft, flange, foot or torque arm installation

The transmission efficiency is up to 98%, low vibration and low noise

Output speed: 0.1-752 rpm

Output torque/power: 130-18,000 Nm/ 0.12-200 kW

Frame number: F27/F37/F47/F47/F57/F67/F77/F87/F97/F107/F127/F157
