AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4

AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 thumbnail-1

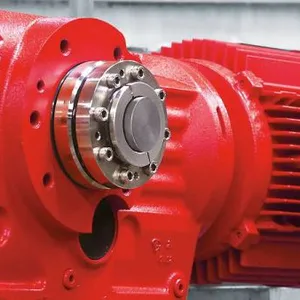

AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 thumbnail-2
AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 thumbnail-3
AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 thumbnail-4
AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 thumbnail-5
AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 photo-1

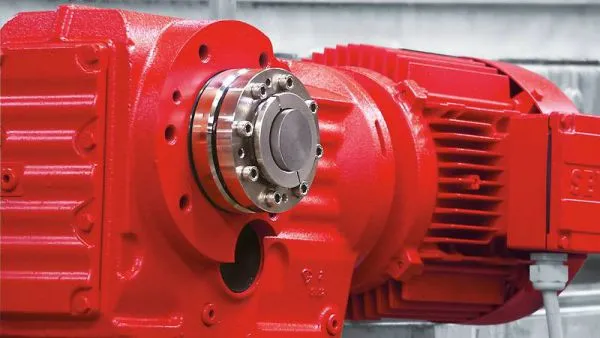

AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 photo-2
AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 photo-3
AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 photo-4
AC Motors SEW-EURODRIVE DR DRN DR2 FRE112M4 photo-5
EUR 1 - 2000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SEW-EURODRIVE
Place of Origin:
Canada
Model Number:
+8613798579657
Contact Supplier Request Quote Chat Now
Heisenberg Technik (Shenzhen) Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SEW-EURODRIVE
Place of Origin Canada
Model Number +8613798579657
Type Induction Motor
Output Power 0.18 – 200kw
Frequency 50Hz, 60Hz
Efficiency IE 4
AC Voltage 208-230 / 240 V
Certification CCC, CE, ROHS
Phase Three-phase
Protect Feature Drip-proof

  • DR../DRN/DR2.. motors support all global standards and norms

  • Motors for efficiency classes IE1 to IE4

  • Compact design saves space and costs

  • Significant time savings thanks to optimized processes in motor selection, order processing, and logistics

  • Future-proof, also as regards environmental protection (standards)

  • The “global motor” combines many energy efficiency regulations and laws in one design: the DR.. series

  • Reduction in operating costs when using energy-efficient motors; our energy-efficient motors conform to the efficiency classes

    • Standard Efficiency (IE1)

    • High Efficiency (IE2)

    • Premium Efficiency (IE3)

    • Super Premium Efficiency (IE4)

  • Comprehensive braking concept and combinations i.e. up to three different brake sizes per motor size featured in the range

  • Cost-optimized built-in encoders fully integrated into the motor


  Frequency 50 Hz Frequency 60 Hz
Connection D / Y D / Y YY / Y or DD / D
Standard voltages
V		 230/400 V or
400/690		 220 / 380 or
380 / 660,
254 / 440,
266 / 460 or
277 / 480		 220 / 440,
230 / 460
IE3 global motor
Standard voltages
V		 220 – 240 / 380 – 415,
220 – 230 / 380 – 400
or
380 – 400 / 660 – 690
 254 – 277 / 440 – 480
or
254 – 266 / 440 – 460
IE grade Number of poles Motor type
Size		 at frequency of 50 Hz at frequencies of 60 Hz and 50/60 Hz
Power
kW		 Power
kW		 Power
hp
IE1 2-pole DR2S..
56 – 80		 0.18 – 1.5 0.18 – 1.5 0.25 – 2
4-pole 0.09 – 1.1 0.09 – 1.1 0.10 – 1.5
6-pole 0.09 – 0.55 0.09 – 0.55 0.10 – 0.75
IE1 2-pole DR2S..
71 - 132		 0.37 – 9.2 0.37 – 9.2 0.50 – 12.3
4-pole DR2S..
71 - 315		 0.18 – 200 0.18 – 200 0.25 – 225
6-pole DR2S..
71 - 160		 0.25 – 7.5 0.25 – 7.5 0.33 – 10
IE2 4-pole DRE..J
71 – 100		 0.37 – 5.5 – –
IE3 2-pole DRN..
63 - 132		 0.18 – 7.5 0.18 – 7.5 0.25 – 10
4-pole DRN..
63 - 315		 0.12 – 200 0.12 – 225 0.15 – 300
6-pole DRN..
63 - 160		 0.09 – 7.5 0.09 – 7.5 0.10 – 10
8-pole DRN..
71 - 80		 0.09 – 0.25 0.09 – 0.25 0.10 – 0.34
IE4 4-pole DRU...J 0.18 – 4 – –
Energy efficiency specifications
on the nameplate


  • The nameplate contains the respective information on the local efficiency regulations, e.g. the marking according to IEC

  • IE classification with numerical value of efficiency during line operation for 50 Hz and 60 Hz

  • USA: ee label (by DoE, Department of Energy, EISA 2007)

  • Canada: CSA (Energy Verified) label (EER 2010)

  • China: CEL label (GB 18613)

  • Brazil: ENCE label

  • South Korea: KEL label in accordance with REELS 2010

  • India: BIS label


Product Tags: SEW motors DRS DR2S , SEW DRE Brakes and brake control Brakes and brake control , SEW DRU Explosion-proof industrial gear units , SEW motors encoder , SEW motors Brake control , SEW motors inverter , SEW motors ES2T , SEW motors Surface and corrosion protection;
