Mini Portable River Pebble Jaw Crusher pe 250 x 400 for Sale
Descriptions:
This series of jaw crusher ( jaw crusher) has the characteristics of large crushing ratio, uniform product size, simple structure, reliable work, easy maintenance and economical operation.
Pe 250*400 Hard Stone Rock Jaw Crusher Price For Mobile Stone Crusher

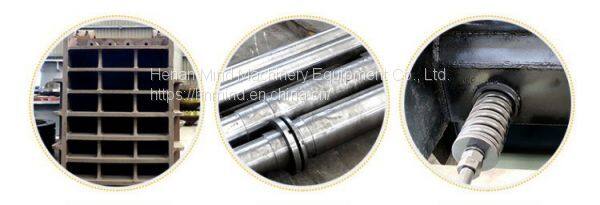

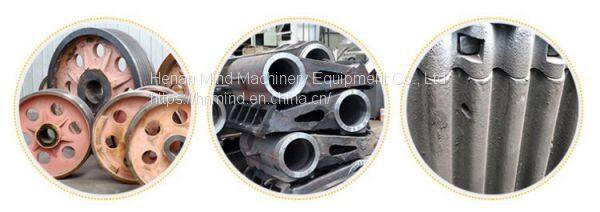

Structures:
Working Principles:
1. The motor drives the belt and the pulley, and moves the movable jaw up and down through the eccentric shaft. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, thereby pushing the movable jaw closer to the fixed jaw.
2. At the same time, the material is crushed or chopped to achieve the purpose of crushing;
Pe 250*400 Hard Stone Rock Jaw Crusher Price For Mobile Stone Crusher
3. When the moving jaw is down, the angle between the bracket and the moving jaw becomes smaller. The moving jaw is separated from the fixed jaw by the action of the tension rod and the spring. At this time, the broken material is discharged from the lower opening of the crushing chamber. Pe 250*400 Hard Stone Rock Jaw Crusher Price For Mobile Stone Crusher
Pe 250*400 Hard Stone Rock Jaw Crusher Price For Mobile Stone Crusher
4. As the motor rotates continuously, the crushing and maneuvering cycle motion crushes and excretes the material to achieve mass production.

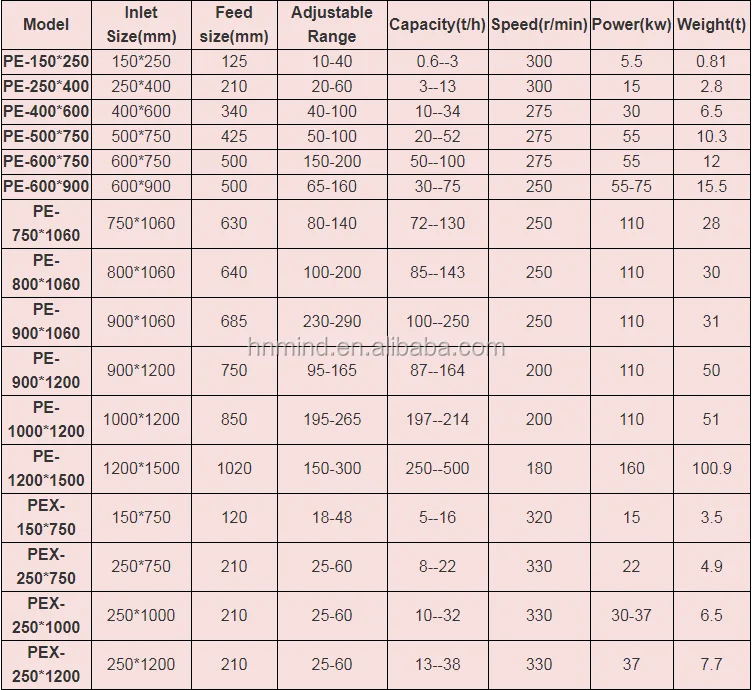

Technical Parameters:

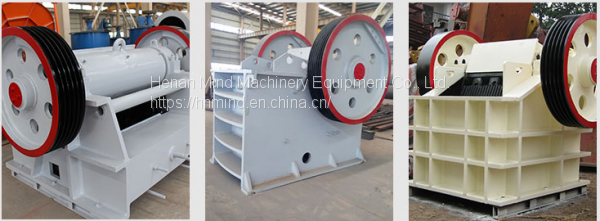

Detailed Images:
Applications:
Jaw crusher is widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries, and crushing various materials with compressive strength not exceeding 320 MPa. Pe 250*400 Hard Stone Rock Jaw Crusher Price For Mobile Stone Crusher
Delivery time |
Within 7-15 working days after receiving your payment; |
Payment terms |
T/T, L/C, Western Union, Trade Assurance; |
Packing |
a. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea; b. The machines are put in standard export wooden case, lined with metal wire if necessary. |
Quality Guarantee Terms |
Quality guarantee term is for one year. Malfunctions caused by machine itself and quality will be responsible for our manufacturer. Other malfunctions caused by operation mistakes, man-made problem etc., we won't take responsible. |
Pre-sale service: |
1.Instruct customers to choose the most suitable equipment model. 2. Can manufacture products according to special requirements. |
In-sale service: |
1. Professional and technical personnel install the distribution before the goods are issued. 2. The product is strictly inspected before delivery and delivered according to the contract. |
After-sales service: |
1. Equipment commissioning, operation, training operators. 2. Engineers available to service machinery overseas. |
Q1: If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1). You only need one cone crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).What is the max size of the stone (mm/inch)?
3).What is the output size you need?
Q2:What could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
