Thermal Mortar Production Line, Epoxy Resin Floor Tile Bond Making Machine
Product Introduction of Thermal Mortar Production Line:
1. Simple dry mortar production line (also known as simple dry mortar plant, small putty production line) is on the basis of efficient ribbon powder mixer, with adding configuration of hoist feeder, material storage tank, automatic filling machine and electric control cabinet, to form a effective and reasonable, easy operation production line.
2. Simple dry mortar production line can mix 1 ton per batch, capacity at 25 to 30 tons per day.Mixing time: 10-15min per batch.
Working Principles of Epoxy Resin Floor Tile Bond Making Machine:
1. The role of the machine the material in two opposite directions by the rotor, for a compound movement , the blade unit to drive along the tank wall material aspect rotate counterclockwise.
2. While turning around the material lead, in the shape of two overlapping rotors weightlessness area, in this area, regardless of the shape of the material, size, and how the density, so that the material can go up in the moment of weightlessness.
3. It makes a full range of material in the machine slot formed a continuous loop flip, staggered cut, so as to effect the rapid gentle mixing.
Technical Parameters of Tile Adhesive Making Machine:
| Model | Simple dry mortar plant | |||
| Output | 1-3 t/h | |||
| Components | screw conveyor, horizontal ribbon mixer, storage tank, packing machine, control cabinet, air compressor | |||
| Occupied area | 20 m2 | |||
| Total power | 5.5-7.5 kw | |||
| Mixer volume | 3300*1050*2100 (mm) | |||
| Equipment height | 3-4 m | |||
| Man power | 2-3 person | |||

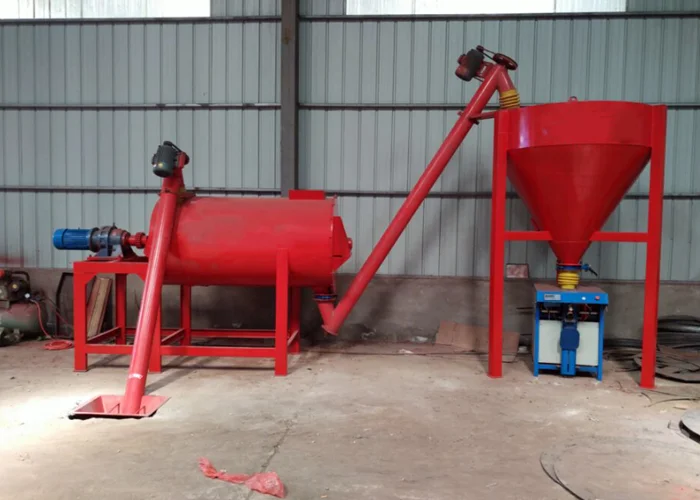

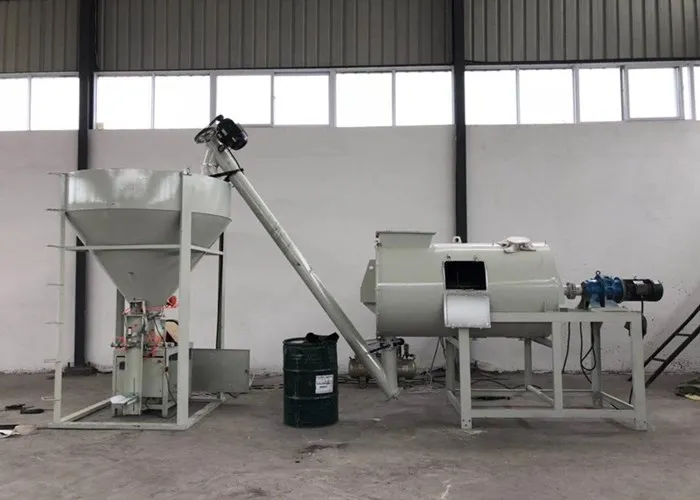

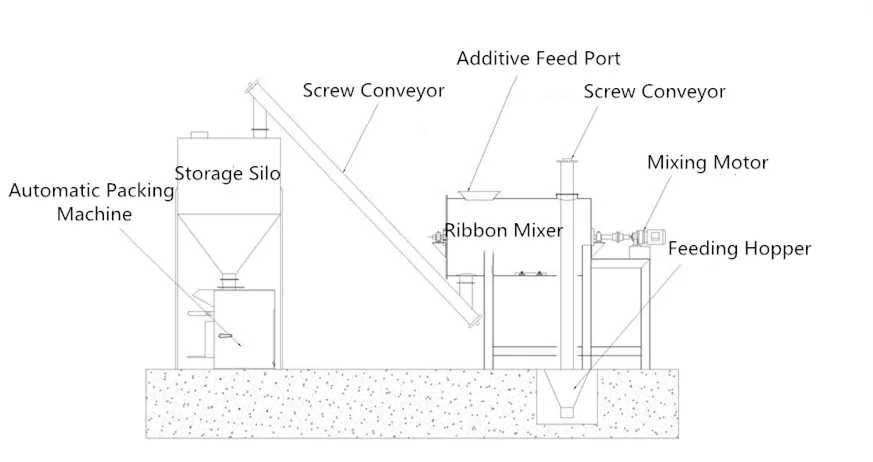

A Complete Dry Mortar Production Line:
| Main Configurations of Tile Bond Making Machine: | ||
| Picture | Machine Name | Use |
|
Material hoister | It is used for lifting material to mixer |
|
The horizontal multi-ribbon mixe | Used for uniform mixing of material |
|
The second hoister | Used for lifting materials to storage tank |
|
Storage Tank | It could store the mixed products |
|
Automatic packer | It is with automatic weighing for packing finished products |
|

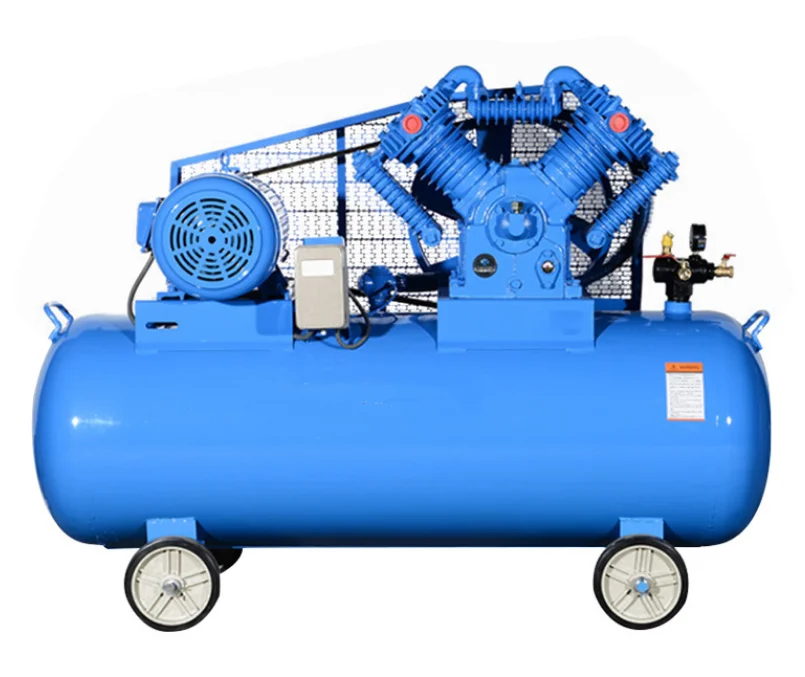

Compressor | Used to providing compressed air for air system |
| Delivery time: 10-20 days after receipt payment |
| Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery |
|
Package: a. Wire cables are used for fastening the machine on the trailer or inside the container b. Cork wood are placed in front or behind the machine to protect it c. Plastic film is covered on the machine as a rain-roof |
Since it has established, our company has paid great attention to the improvement of its own quality. In recent years, the company has made breakthroughs in market access and qualification certification, providing consumers with excellent product quality.
1.Provide Research & Development Service,For Customer Exclusive Model.
2.Provide OEM and ODM Service.dry mortar plant
3.Welcome Small and Big Size Customer Orders.dry mortar machines
4.After Sales Service with 12 Month Warranty dry mortar production mixer
5.You Are Not Alone After Your Purchase. Full AfterSales Phone and Email Support.
What are our advantage of our team and factory?
1.We have more than 60 machines and will guarantee the short production time and good quality.
2.We are located in Henan Province China,the largest construction town,there is a large advantage on experience and cost. It is easy for you to visit our company and the factory.we will also provide you 24h online chat service.
3.24h Online chat, quick reply, good quality.
4. Henan Mind Machinery is committed to produce the dry mix mortar equipment for more than 10 years to preview the questions and risks during producing and delivering.
