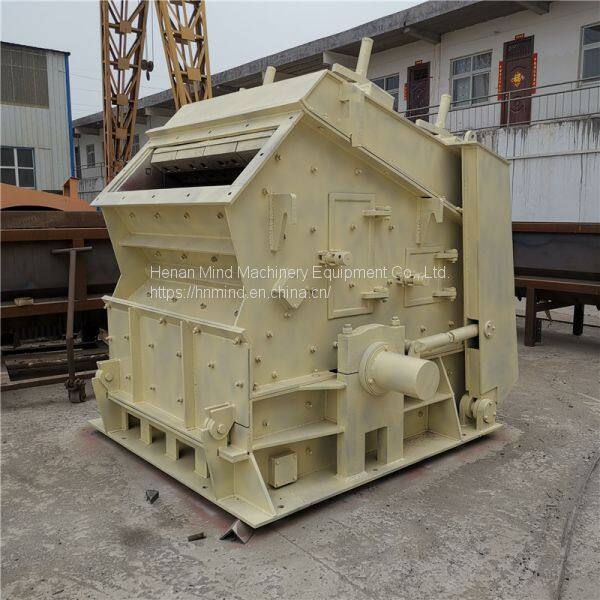

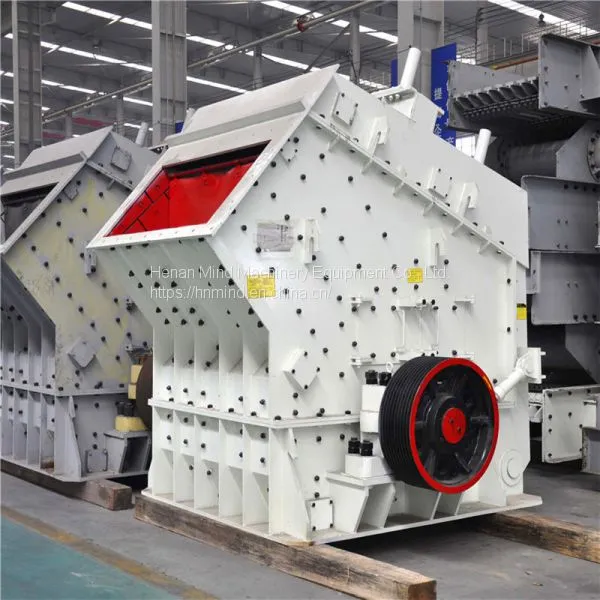

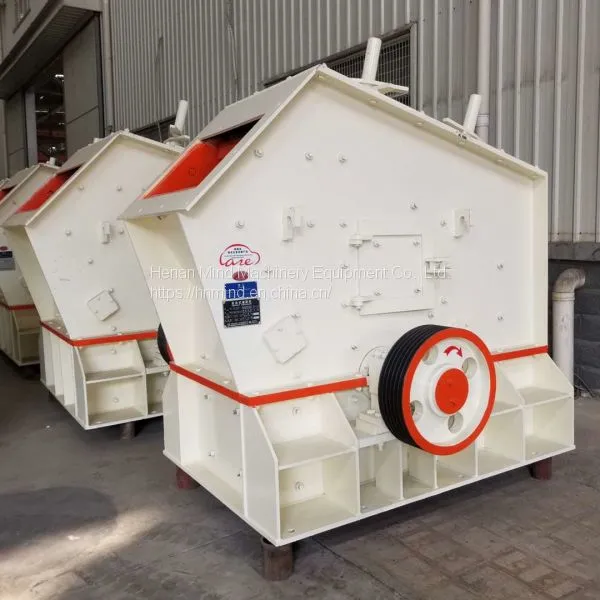

PF Heavy Duty Stone Impact Crusher Rock Concrete Crushing Equipment

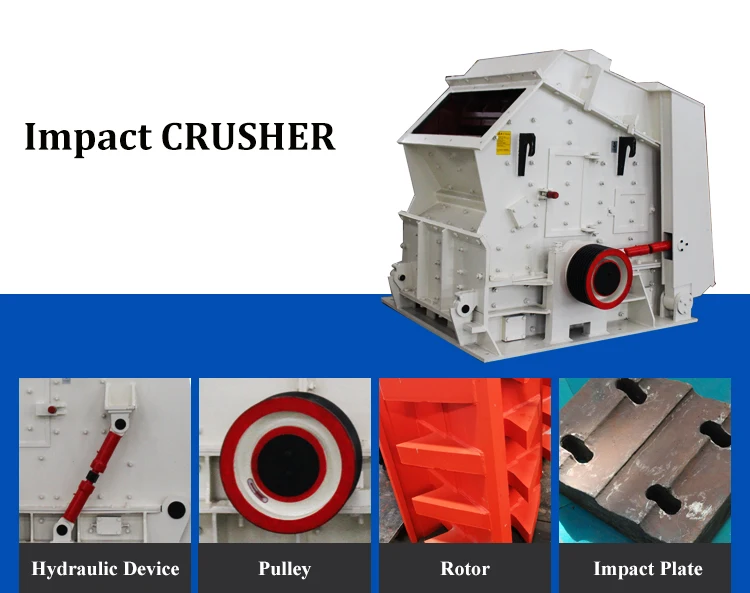

Introduction of impact crusher

This series product,abosorbing advantages of similar production abroad,optimized design,crush material whose compression strength not more than 320Mpa,such as lime stone,granite and basalt and etc.Enjoy the advantage of bigcushing ratio,high crushing efficiency,even cubic discharging,convenient maintenance.

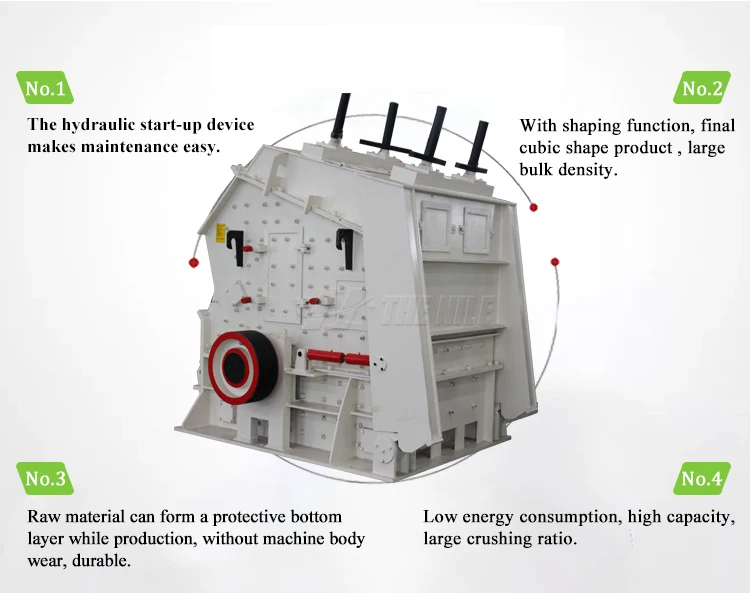

Advantages of impact crusher
1.High crushing ratio
2. High crushing efficiency
3.even cubic discharging
nvenient maintenance
Technical Datas
| Model | Specification (mm) |
Feeding Opening Size (mm) |
Max Feeding Size (mm) |
Capacity (t/h) |
Power (kw) |
Hammer (qnty) |
Dimension (mm) |
| PF-1007 | Φ1000×700 | 400×730 | 250 | 20-70 | 37-55 | 9 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 300 | 50-90 | 55-75 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 300 | 70-130 | 110 | 17 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 300 | 100-180 | 132 | 22 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 350 | 130-250 | 200 | 26 | 3180×2720×2620 |
| PF-1320 | Φ1320×2000 | 860×2030 | 400 | 300-350 | 315 | 30 | 3218×3320×2620 |
Different requirements apply to different models. If you have any questions, please feel free to contact me.After all, choosing the right machine is a key factor in productivity.
Our Services

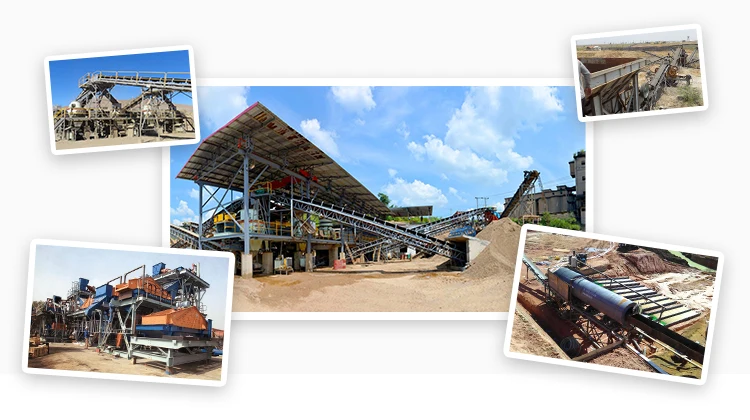

Project of company
Our company has contracted many large production lines in foreign countries and won the recognition of customers in terms of product quality and installation technology.
Pre-sale service:
1. Instruct customers to choose the most suitable equipment model.
2. Can manufacture products according to special requirements.
In-sale service:
1. Professional and technical personnel install the distribution before the goods are issued.
2. The product is strictly inspected before delivery and delivered according to the contract.
After-sales service:
1. Equipment commissioning, operation, training operators.
2. Engineers available to service machinery overseas.
Delivery Time |
a. If stock machine, we can send out your products within 5-7 days after receiving clients’ payment. b. If you need special molds or customized production line, the delivery time according to you machine quantity, but we will send out as soon as possible. |
Payment Terms |
T/T, L/C, D/P, D/A, Escrow, Paypal, Western Union |
Package Type |
Wooden Case |
Package |
a. If you order single machine, it can be packed in one wooden case. |
Quality Guarantee Terms |
a. Quality guarantee term is for one year. b. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. c. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
When you send an inquiry, please inform us the following information:
♠ What's your raw material?
♥ How about the hourly capacity?
♦ Do need the only machine or the whole line?
Friendly Reminder:
Dear friend, if you have any questions about the size, feel free to contact us.
Leave me a message at the bottom, tell me your detail requirement. Trust me ,you will get the most suitable product and price .
