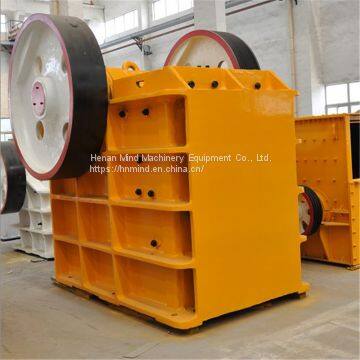

Small River Pebble Stone Breaker, Ballast PE 250 x 400 Jaw Crusher Machines

Descriptions:

This series of jaw crusher ( jaw crusher) has the characteristics of large crushing ratio, uniform product size, simple structure, reliable work, easy maintenance and economical operation.

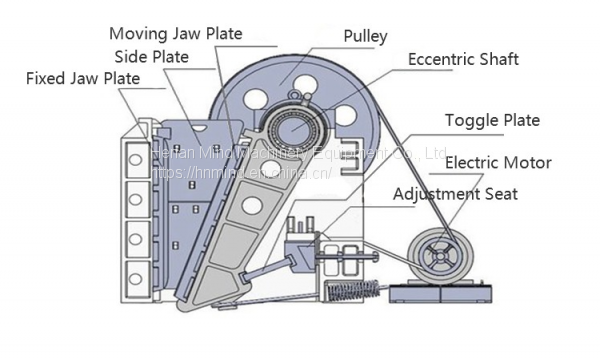

Structures:

Working Principles:

1. The motor drives the belt and the pulley, and moves the movable jaw up and down through the eccentric shaft. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, thereby pushing the movable jaw closer to the fixed jaw.

2. At the same time, the material is crushed or chopped to achieve the purpose of crushing;

3. When the moving jaw is down, the angle between the bracket and the moving jaw becomes smaller. The moving jaw is separated from the fixed jaw by the action of the tension rod and the spring. At this time, the broken material is discharged from the lower opening of the crushing chamber.

4. As the motor rotates continuously, the crushing and maneuvering cycle motion crushes and excretes the material to achieve mass production.

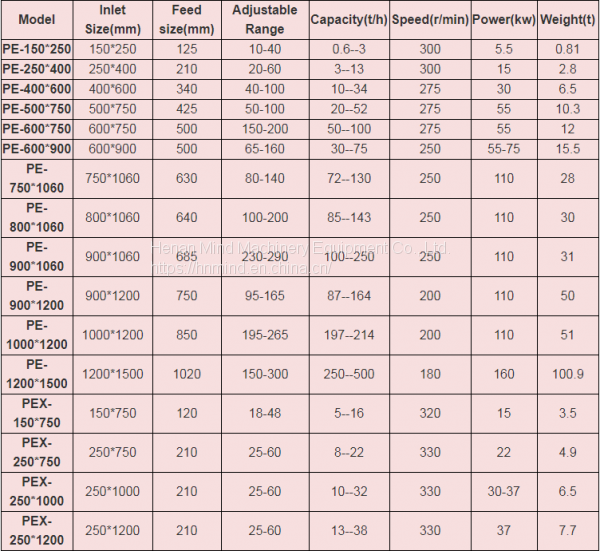

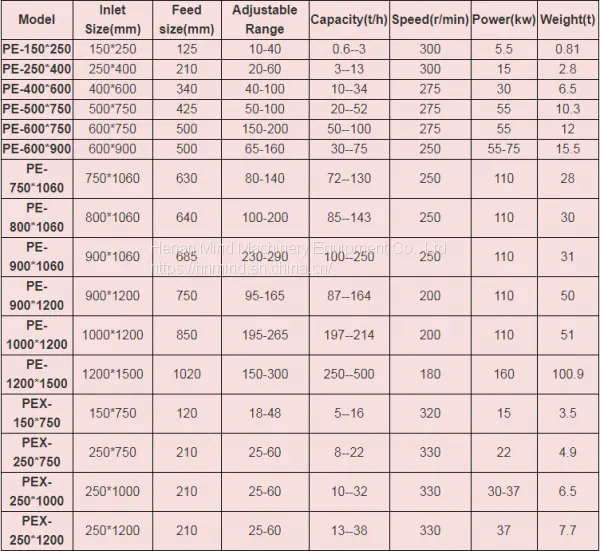

Technical Parameters:

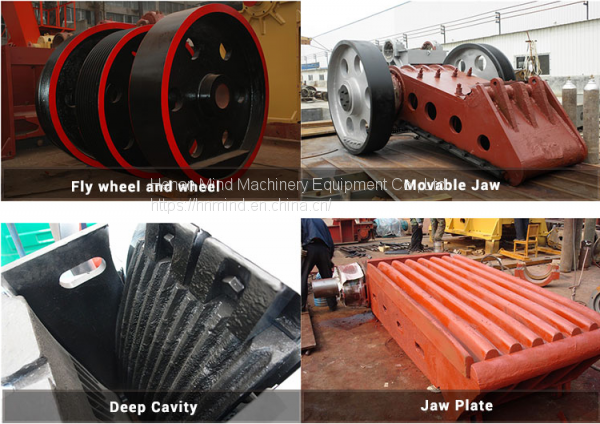

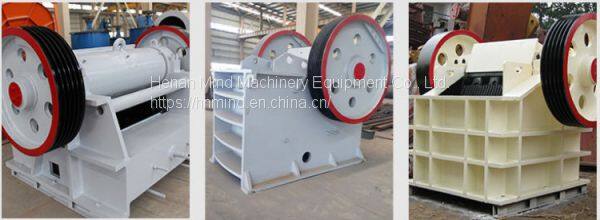

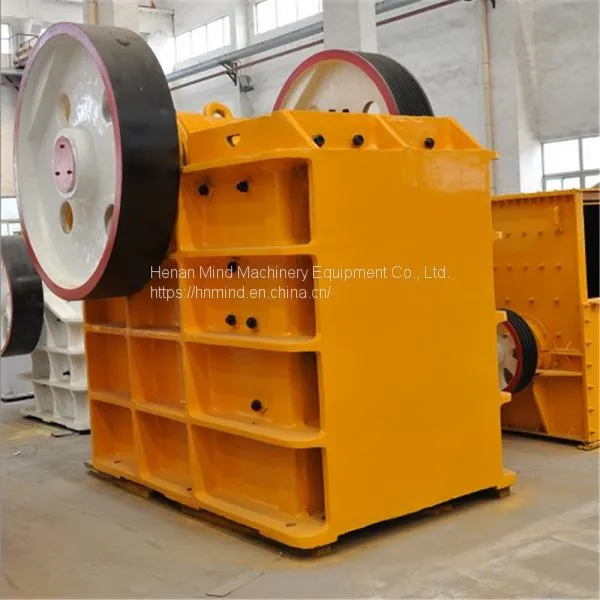

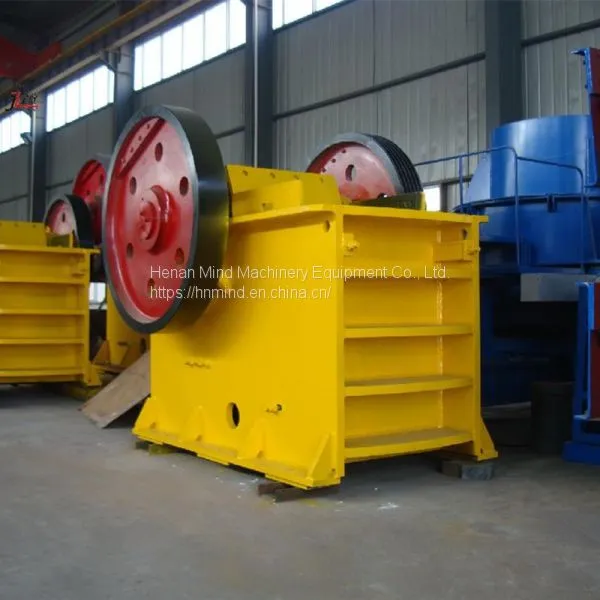

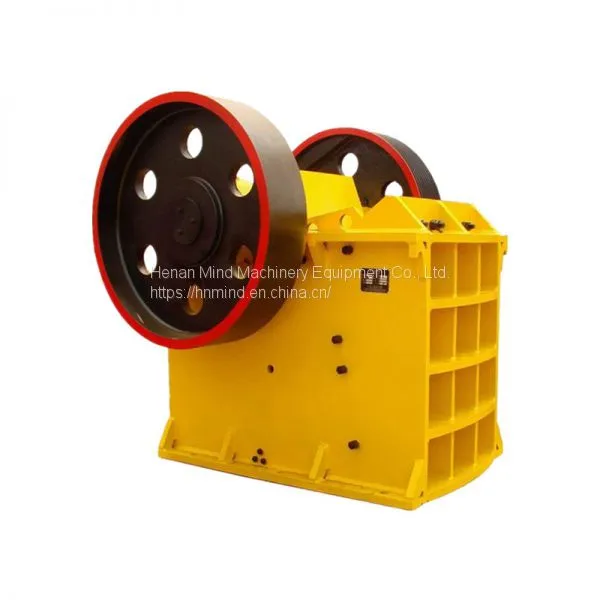

Detailed Images:

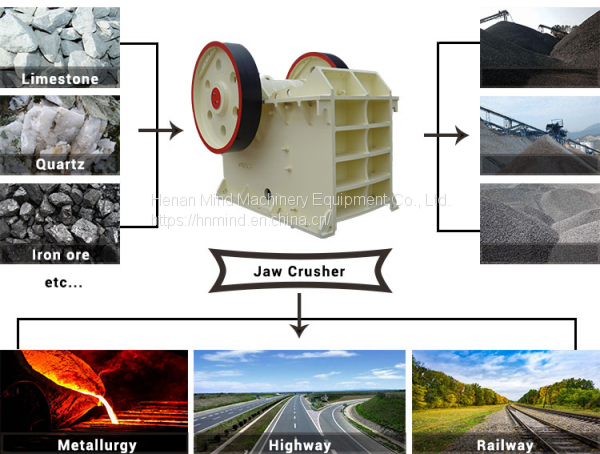

Applications:

Jaw crusher is widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries, and crushing various materials with compressive strength not exceeding 320 MPa.

Q1: If you want us recommend a suitable type and best offer for you ,please let us know as follows:

1). You only need one cone crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).What is the max size of the stone (mm/inch)?
3).What is the output size you need?

Q2:What could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
