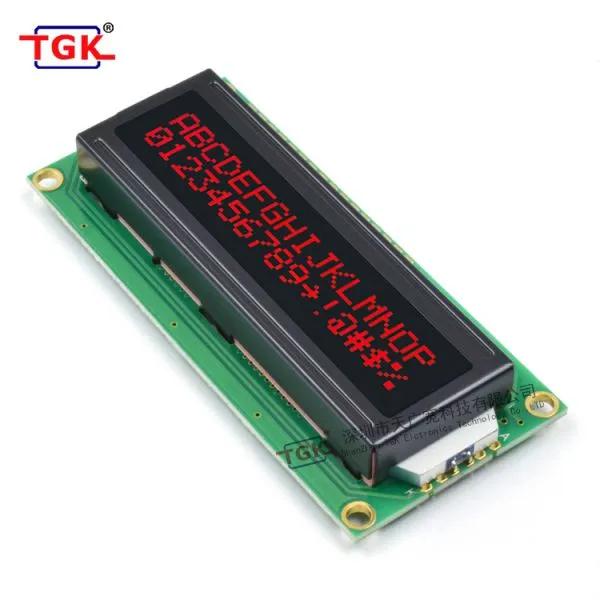

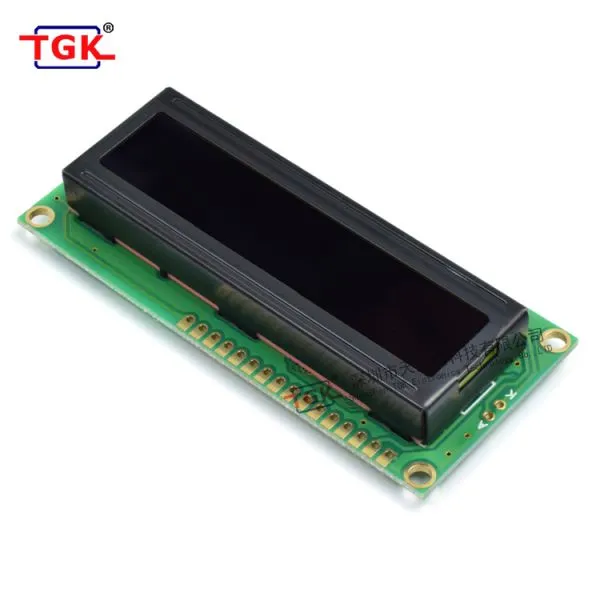

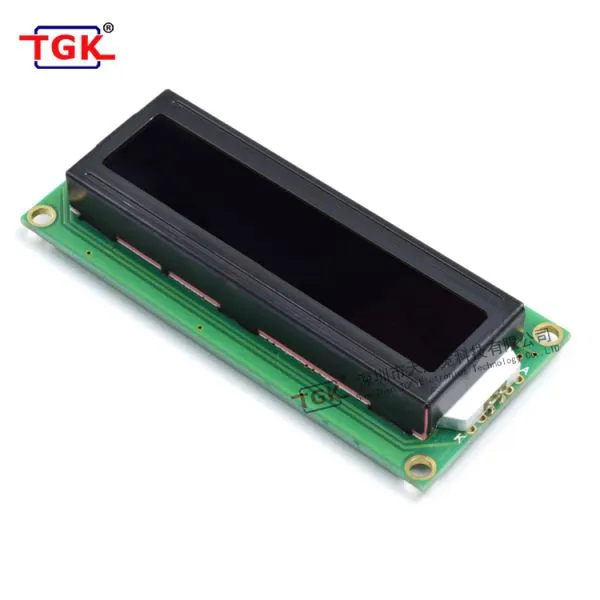

Help Center16X2 Lcd Display 1602 Lcd Modules TM162A-3 80X36mm Black Screen Dust-free Process 16X2 LCD Screen
Related Products
-
16X2 Lcd Display SPI IIC I2C Serial Port 6800 Timing 1602 Lcd Modules TM1602H3 80X36mm Black Screen Dust-free Process 16X2 LCD ScreenUS$ 1.5 - 1.7MOQ: 1 Piece -
Lcd 16X2 Display 1602 Lcd Modules TM162A-3 80X36mm 1602 LCD ScreenUS$ 1.4 - 1.7MOQ: 1 Piece
-
Lcd 16X2 Display 1602 Lcd Modules TM162A-3 80X36mm Upper and Lower Double-row Interface 1602 LCD ScreenUS$ 1.4 - 1.7MOQ: 1 Piece
-
Lcd 16X2 Display 1602 Lcd Modules TM162C-1 72X36mm Small Size, Small PCB Board 1602 LCD ScreenUS$ 1.4 - 1.7MOQ: 1 Piece
-
Lcd 16X2 Display 1602 Lcd Modules TM162D-1 84X44mm Big Size Big PCB Board 1602 LCD ScreenUS$ 1.5 - 1.7MOQ: 1 Piece

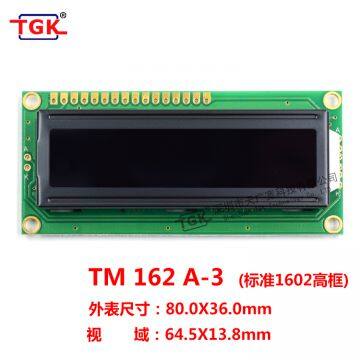

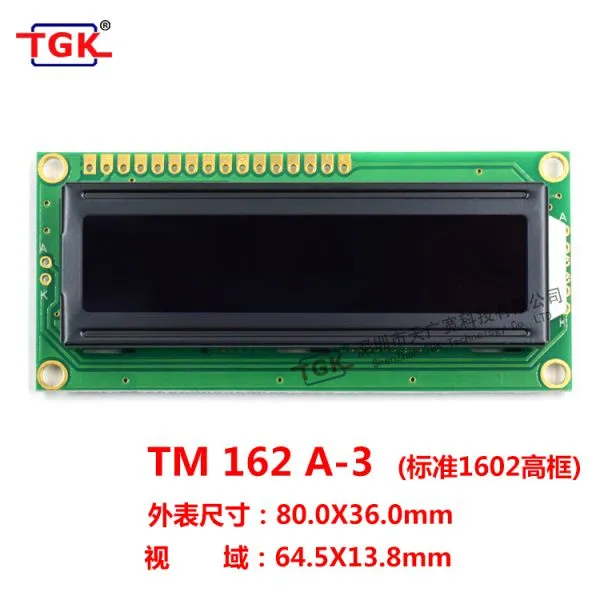

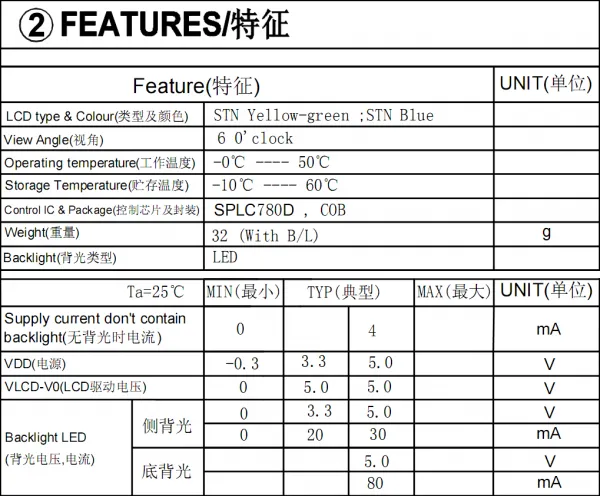

Model number: TM162A-3 (standard product) industrial grade high technology
Dot matrix: 16x2
Glass mode: black film multi-color display 3.3V or 5.0V power supply.

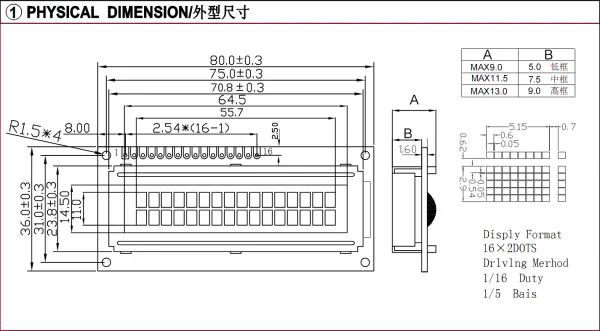

Dimensions: 80.0*36.0 mm (length and width)
Field of view size: 64.0*13.8 mm
Backlight: white side light, yellow side light, blue side light, orange side light, green side light, red side light, etc.

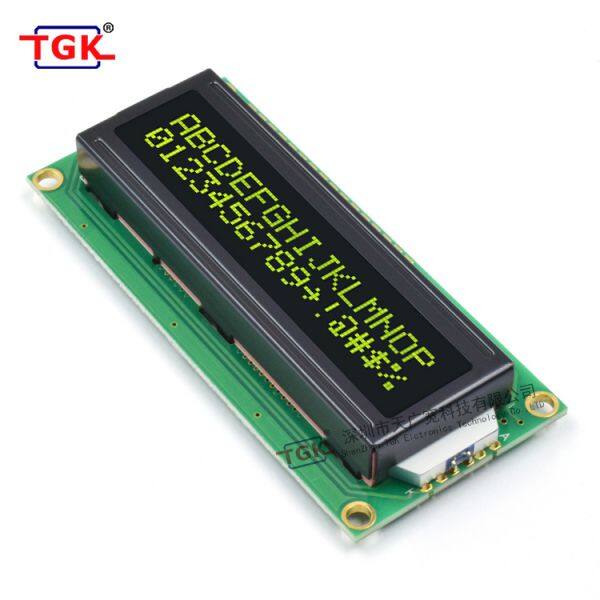

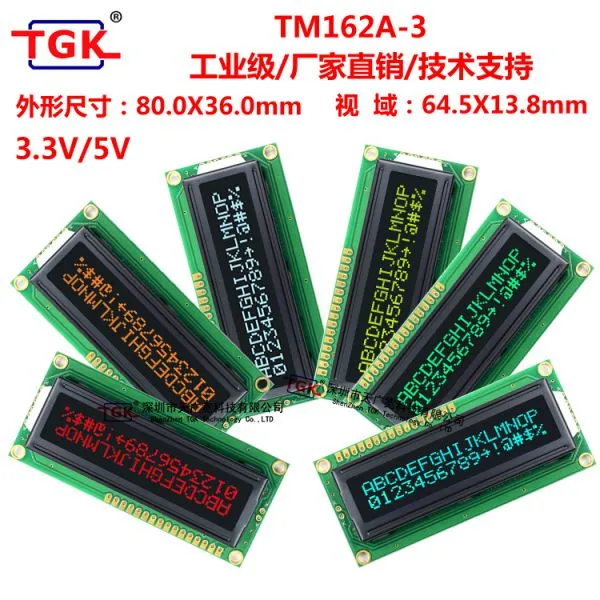

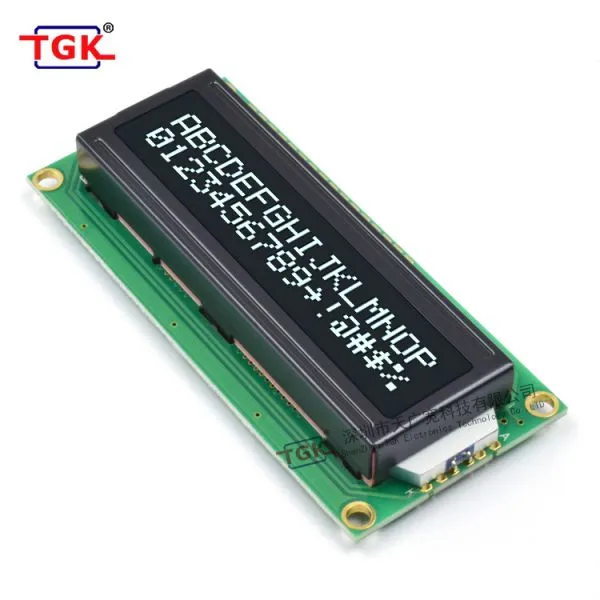

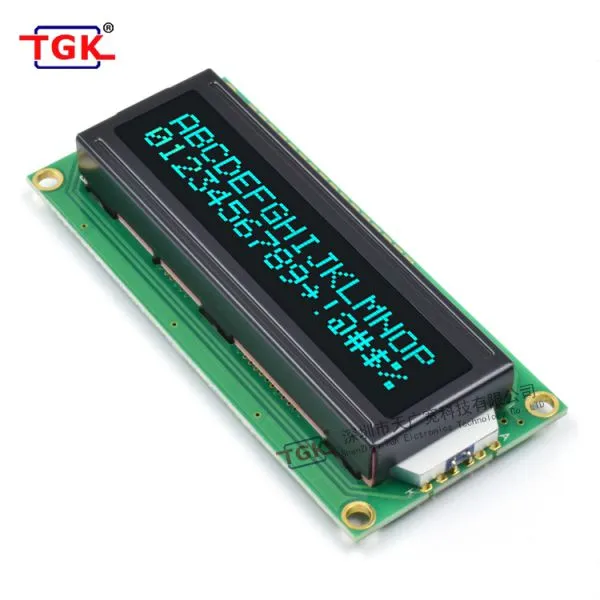

Display effect: white on black, yellow on black, blue on black, orange on black, green on black, red on black,

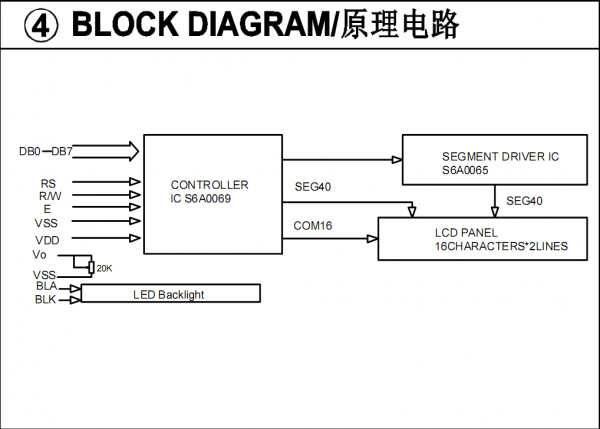

Outer frame: blackController: SPLC780D
Process: COB Bonding
Supports yellow-green screens, blue screens, gray screens, etc., and also contains various specifications and parameters such as LED backlight 1602, 1602, all in the TM162 series, please go to the store to check! Thank you! Professional factory production. Quality assurance, quality assured!Welcome to discuss in detail!
