Description

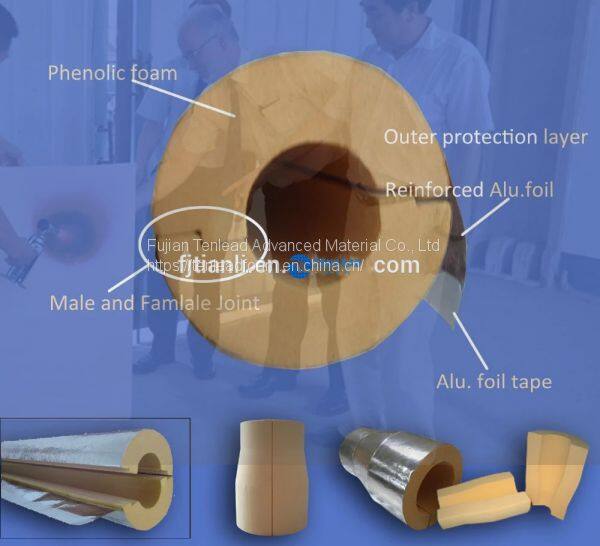

Ten-lead Phenolic Foam Pipe Insulation and pipe supports are most cost effective and better than conventional insulation materials because of various distinct properties like Low K Value, highest fire rating standards with 100% fire retardance.
Advanges
1. It is non - burning
2. Toxicity of Smoke is nil
3. Flame Spread is very low
4. During Continuous fire, it turns dark brown and shows surface cracks but does not either burn or loose shape.
Parameters
Item |
Standard |
Specification |
Standard Length |
1000mm |
|
Foam Density |
BS4370 |
40KG/m3 |
Thermal Conductivity |
BS4370 |
0.02W/m.K |
Compressive Strength |
ASTM D1621-00 |
137.7psi |
Tensile Strength |
ASTM D1623-00 |
61.4psi |
Fire Test Classification |
BS 476 part 6 & part 7 |
Class 0 |
Water Absorption (Volume) |
ASTM C209-98 |
0.25% |
Dimension Change |
ASTM C2126-99 |
0.3% |
Working Temperature |
°C |
-250- +150 |
CFCs & HCFCs Test |
Headspace GC/MS |
Not detected |
