PHENOLIC PRE-INSULATED DUCT BOARD
Negotiable
MOQ: 1000 Square Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TENLEAD
Place of Origin:
China
Model Number:
TL006
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN, CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Phenolic Foam Pipe InsulationNegotiableMOQ: 1500 Meters -
Phenolic Sandwich Panels -light Steel Structure, Cold Room, Roof InsulationNegotiableMOQ: 500 Square Meters
-
Phenolic Insulation Board---Wall Insulation SystemNegotiableMOQ: 1000 Square Meters
-
Phenolic Foam Insulation Panel---Wall and Roof Insulation SystemNegotiableMOQ: 1000 Square Meters
-
Low Thermal Conductivity Phenolic Insulation Board for BuildingsNegotiableMOQ: 1000 Square Meters
Brand Name
TENLEAD
Place of Origin
China
Model Number
TL006

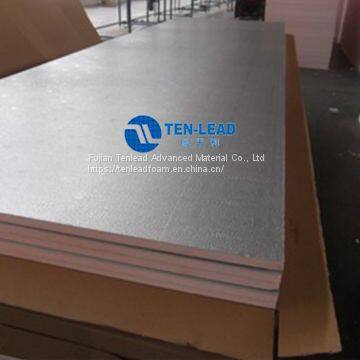

PHENOLIC PRE-INSULATED BOARD
Phenolic foam is a versatile insulation product with enhanced insulation and fire retardant properties.
It is manufactured in a range of thicknesses and densities individually designed for different applications.
Due to its complex formula manufacture phenolic foam is limited to very few specialist manufacturers. SAT Insulation is the only manufacturer in the Middle East.
Ideal applications are :
Pre-insulated ducts (high density)
Non carcinogenic alternative to bulk insulation (low density)
Wall / Ceiling panels (low density)
PHENOLIC – SPECIFICATION
| Property | Description | Unit Value | Standard |
|---|---|---|---|
| Dimension | Thickness | 20.00 mm ±1mm | |
| Length | 3950 mm | ||
| Width | 1200 mm | ||
| Panel Facing | Scrim foil with glass-fiber mesh – 20 micron Aluminum foil | ||
| Inner Face | 60micron lacquered Hygienic Aluminum foil Metal Embossed | ||
| Outer Face | |||
| Density | 50 kg/M3 ±5 | ASTM D 1622:03 | |
| Thermal Conductivity | 0.0234W/(m.K) | ASTM C518:2010 | |
| Compressive Resistance | 351.5 (kPa) | ASTM D1621:00 | |
| Water Vapor Transmission of Materials | Transmission | 0.0 g/h.m2 | ASTM E96:2000 |
| Permeance | 0.0 g/Pa.s.m2 | BS:4370 | |
| Water Absorption | Transmission | 0.25% | ASTM C209:1998 |
| Permeance | |||
| Dimensional Stability | Length | 0.0% | ASTM D2126:1999 |
| Width | 0.0% | ||
| Thickness | 0.5% | ||
| Ph Value | 6.47 | ISO 8975 | |
| CFC | CFC Free | SGS/J00202F-DB07 | |
| Halogen | Halogen Free | SGS/J00202F-DB07 | |
| Apparent Closed Cell | 95% | ASTM D 2856 | |
| Reaction to Fire | Class '0' | BS 476 -Part 6 & 7 | |
| Fire Performance | C- S3- d0 | BS EN 13823:2002 | |
| BS EN ISO 11925:2002 | |||
| Flame Spread Index (FSI) | 14.64 / Class 1 | ANSI/UL 723 – ASTM E 84-04 – BS 476-Part 7 | |
| Smoke Development Index (SDI) | 13.10 | ANSI/UL 723 – ASTM E 84-04 | |
| Warringtomfire Certificate | Certificate No. ME0021 | BS 476 -Part 6 & 7 | |
| Civil Defense Approval | Reg. No: 43693 | License No: 209489 |
