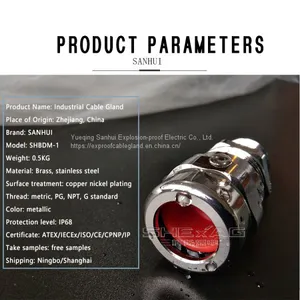

Help CenterIp68 Brass Explosion Proof Cable Gland Brass Nickel Cable Gland
Related Products
-
Atex Certified Cable Glands m8 M32,armoured Cable Gland SizesNegotiableMOQ: 500 Pieces -
ex Cable Gland Stainless Steel Armoured Cable Gland M20NegotiableMOQ: 500 Pieces
-
Stainless Steel Industrial Electrical Ip66 Explosion-Proof Metal Cable GlandNegotiableMOQ: 500 Pieces
-
High Quality Double Compression Explosion Proof ss Cable Gland M20 M40NegotiableMOQ: 500 Pieces
-
Wholesale Brass Cable Entry Gland Electrical Brass Cable Glands SizeNegotiableMOQ: 500 Pieces
SHBDM-2 Industrial cable gland (Armored cable)
Specification
Materials:Brass,Stainless steel 304,316
Surface treatment:Nickel planted,Passivation
Sealing materials:Silicon rubber,Neoprene,Teflon,PA6
Explosion mark:Exd IIC Gb/Exe II Gb/Ex tD A21 IP68
Fireproof grade:V0(UL94)
Protection level:IP68 (screwed-on the cap)
Ambient temperature:Static from -60℃ to 100℃,short up to 120℃
Dynamic from -20℃ to 80℃,short up to 100℃ without halide.
Environment condition:Zone1,Zone2 IIA-IIC Explosive gas atmosphere,Strict21,22 inflammable dust environment,it is widely used in petroleum, chemical, warehouse, food, pharmaceutical, military and other electrical cable fixing and sealing.
Mode |
Entry thread size AG |
Cable Acceptance details |
H |
GL |
Hexagon size |
||||||
Inner Sheath |
outside diameter(B) |
Wire armored /belt/knits |
|||||||||
M |
NPT.G |
Min |
Max |
Orientation 2 |
Across flats |
Across corners |
|||||
SHBDM-2-01o |
1/2” |
5.5 |
12.0 |
0.9/1.25 |
0/0.7 |
30.0 |
16 |
24.0 |
27.7 |
||
SHBDM-2-01S |
M20 |
1/2” |
9.5 |
16.0 |
0.9/1.25 |
0/0.7 |
38.0 |
16 |
24.0 |
27.7 |
|
SHBDM-2-02 |
M25 |
3/4” |
12.5 |
20.5 |
0.9/1.25 |
0/0.7 |
38.0 |
16 |
30.0 |
34.6 |
|
SHBDM-2-03 |
M32 |
1” |
16.9 |
26.0 |
1.25/1.6 |
0/0.7 |
44.0 |
18 |
36.0 |
41.6 |
|
SHBDM-2-04 |
M40 |
1 1/4” |
22.0 |
33.0 |
1.6/2.0 |
0/0.7 |
46.0 |
18 |
45.0 |
53.1 |
|
SHBDM-2-05 |
M50 |
1 1/2” |
28.0 |
41.0 |
1.8/2.5 |
0/0.7 |
50.0 |
20 |
55.0 |
63.5 |
|
SHBDM-2-06 |
M63 |
2” |
36.0 |
52.6 |
1.8/2.5 |
0/1.0 |
64.0 |
20 |
68.0 |
75.1 |
|
SHBDM-2-07 |
M75 |
2 1/2” |
46.0 |
65.3 |
1.8/2.5 |
0/1.0 |
70.0 |
20 |
80.0 |
92.4 |
|
SHBDM-2-08 |
M85 |
3” |
57.0 |
78.0 |
1.8/2.5 |
0/1.0 |
80.0 |
20 |
95.0 |
109.6 |
|
