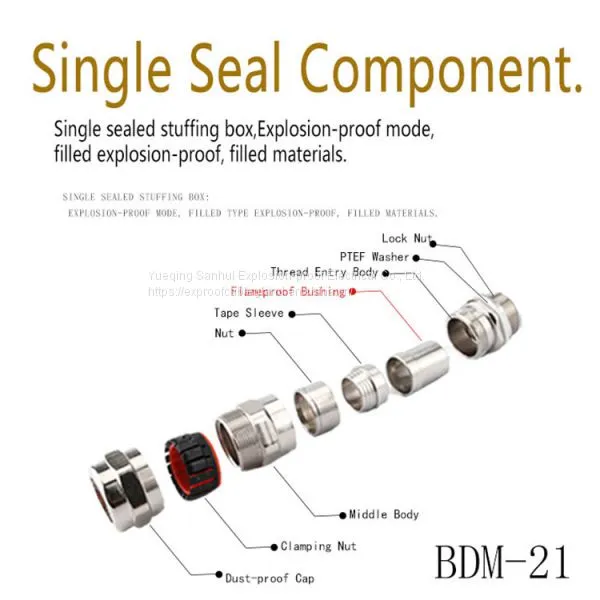

SHBDM-21
Explosion-proof cable glands(Hazardous area,armored cable)
Specification
Materials:Brass or stainless steel ,brass with nickel planted
Sealing materials:Silicon rubber,Neoprene,Teflon,PA6
Explosion mark:Exd IIC Gb/Exe II Gb/Ex tD A21 IP68
Fireproof grade:V0(UL94)
Environment condition:Zone1,Zone2 IIA-IIC Explosive gas atmosphere,Strict21,22 inflammable dust environment,it is Widely used in oil extraction, refining, chemical, military and so on hazardous environment places cable clamping and sealing.
|
Mode |
M |
NPT |
G |
Suitable cable diameter |
Thread length L1 |
Total length L |
Max diameter |
Armored layer thickness range(mm) |
||
Inner sheath diameter (outlet) |
Outer sheath diameter(inlet) |
Optionalouter sheath diameter(inlet) |
||||||||
SH-BDM-21-01 |
M20*1.5A |
NPT1/2A |
G1/2A |
5.5-12 |
--- |
15 |
66 |
30 |
0.3-1.0 |
|
SH-BDM-21-02 |
M20*1.5B |
NPT1/2B |
G1/2B |
9.5-16 |
--- |
15 |
66 |
30 |
0.3-1.0 |
|
SH-BDM-21-03 |
M20*1.5C |
NPT1/2C |
G1/2C |
12.5-20.5 |
6-12 |
15 |
68 |
30 |
0.3-1.0 |
|
SH-BDM-21-04 |
M25*1.5B |
NPT3/4B |
G3/4B |
12.5-20.5 |
9-15 |
15 |
68 |
37 |
0.3-1.0 |
|
SH-BDM-21-05 |
M25*1.5C |
NPT3/4C |
G3/4C |
17-26 |
9-15 |
15 |
73 |
37 |
0.4-1.2 |
|
SH-BDM-21-06 |
M32*1.5B |
NPT1B |
G1B |
17-26 |
14-22 |
19 |
77 |
45 |
0.4-1.2 |
|
SH-BDM-21-07 |
M32*1.5C |
NPT1C |
G1C |
22-33 |
14-22 |
19 |
81 |
45 |
0.4-1.4 |
|
SH-BDM-21-08 |
M40*1.5B |
NPT1-1/4B |
G1-1/4B |
22-33 |
19-28 |
19 |
81 |
55 |
0.6-1.9 |
|
SH-BDM-21-09 |
M40*15C |
NPT1-1/4C |
G1-1/4C |
28-41 |
24-33 |
19 |
88 |
55 |
0.6-2.2 |
|
SH-BDM-21-10 |
M50*1.5B |
NPT1-1/2B |
G1-1/2B |
28-41 |
29-41 |
19 |
88 |
65 |
0.8-2.3 |
|
SH-BDM-21-11 |
M50*1.5C |
NPT1-1/2C |
G1-1/2C |
36-52.6 |
29-41 |
19 |
96 |
65 |
0.8-2.3 |
|
SH-BDM-21-12 |
M63*1.5B |
NPT2B |
G2B |
36-52.6 |
38-52 |
19 |
96 |
77 |
0.9-2.4 |
|
SH-BDM-21-13 |
M63*1.5C |
NPT2C |
G2C |
46-65 |
38-52 |
19 |
114 |
82 |
0.9-2.4 |
|
SH-BDM-21-14 |
M75*1.5B |
NPT2-1/2B |
G2-1/2B |
46-65 |
38-58 |
19 |
114 |
93 |
0.9-2.4 |
|
SH-BDM-21-15 |
M75*1.5C |
NPT2-1/2C |
G2-1/2C |
57-78 |
47.5-74 |
19 |
119 |
110 |
0.9-2.4 |
|
SH-BDM-21-16 |
M90*1.5 |
NPT3 |
G3 |
68-88 |
--- |
19 |
119 |
121 |
0.9-2.8 |
|
SH-BDM-21-17 |
M110*1.5 |
NPT4 |
G4 |
83-103 |
--- |
19 |
125 |
137 |
0.9-2.8 |
|
