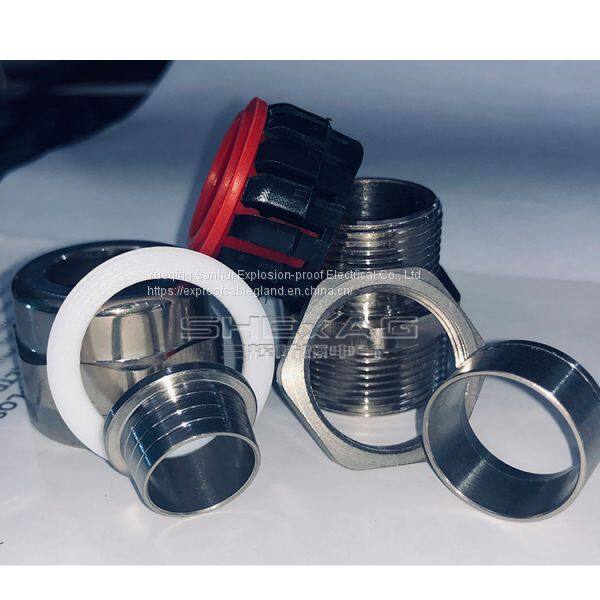

SHBDM-1 Industrial cable gland (Non-armored cable)

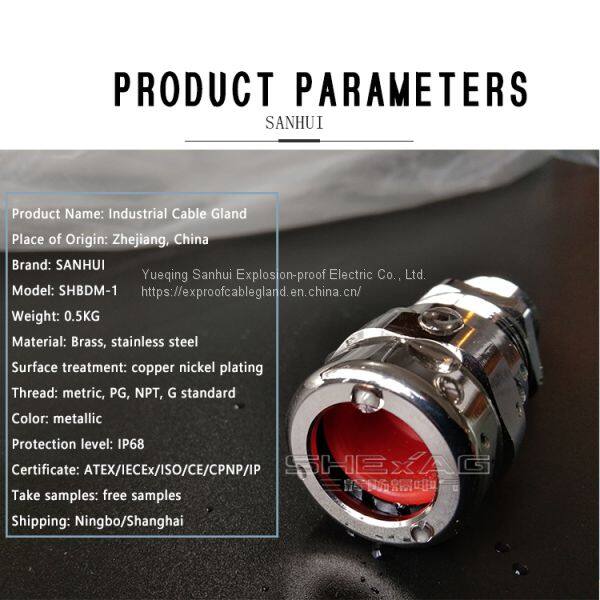

Specification
Materials:Brass,Stainless steel 304,316
Surface treatment:Nickel planted,Passivation
Sealing materials:Silicon rubber,Neoprene,Teflon,PA6
Explosion mark:Exd IIC Gb/Exe II Gb/Ex tD A21 IP68
Fireproof grade:V0(UL94)
Protection level:IP68 (screwed-on the cap)
Ambient temperature:Static from -60℃ to 100℃,short up to 120℃
Dynamic from -20℃ to 80℃,short up to 100℃ without halide.
Environment condition:Zone1,Zone2 IIA-IIC Explosive gas atmosphere,Strict21,22 inflammable dust environment,it is widely used in petroleum, chemical, warehouse, food, pharmaceutical, military and other electrical cable fixing and sealing.
Mode |
Entry thread size AG |
Acceptable cable detail |
H |
GL |
Hexagon size |
|||
Outer sheath (B) |
||||||||
M |
NPT/G |
Min |
Max |
Across flats |
Across corners |
|||
SH-BDM-1-01o |
M20*1.5 |
1/2” |
5.5 |
12.0 |
30.0 |
15 |
24.0 |
27.7 |
SH-BDM-1-01S |
M20*1.5S |
1/2” |
9.5 |
16.0 |
38.0 |
16 |
24.0 |
27.7 |
SH-BDM-1-02 |
M25*1.5 |
3/4” |
12.5 |
20.5 |
38.0 |
16 |
30.0 |
34.6 |
SH-BDM-1-03 |
M32*1.5 |
1” |
16.9 |
26.0 |
44.0 |
18 |
36.0 |
41.6 |
SH-BDM-1-04 |
M40*1.5 |
1 1/4” |
22.0 |
33.0 |
46.0 |
18 |
45.0 |
53.1 |
SH-BDM-1-05 |
M50*1.5 |
1 1/2” |
28.0 |
41.0 |
50.0 |
20 |
55.0 |
63.5 |
SH-BDM-1-06 |
M63*1.5 |
2” |
36.0 |
52.6 |
64.0 |
20 |
68.0 |
75.1 |
SH-BDM-1-07 |
M75*1.5 |
2 1/2” |
46.0 |
65.3 |
70.0 |
20 |
80.0 |
92.4 |
SH-BDM-1-08 |
M85*1.5 |
“3 |
57.0 |
78.0 |
80.0 |
20 |
95.0 |
109.6 |
