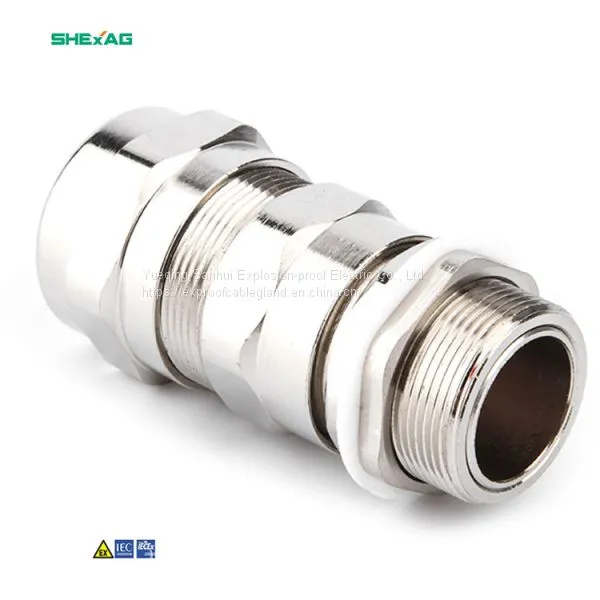

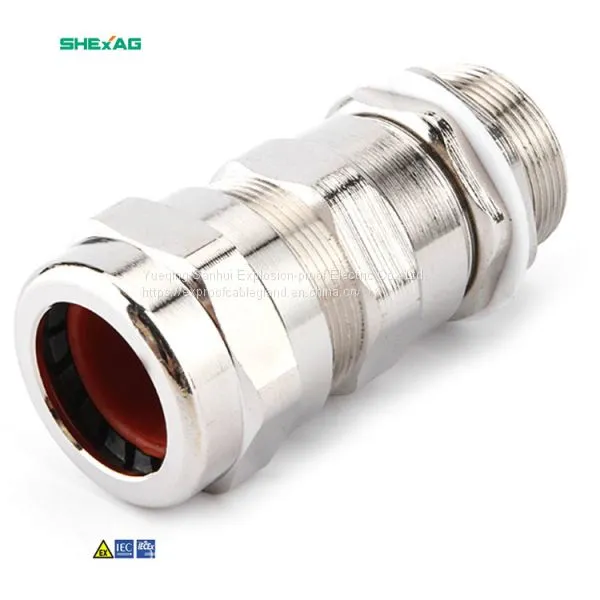

Free Sample IEC Atex brass ex- proof cable gland 50mm enlarger m20 to m16

Inner sheath diameter (outlet)

Outer sheath diameter(inlet)

Optionalouter sheath diameter(inlet)

SH-BDM-21-01

M20*1.5A

NPT1/2A

G1/2A

<12

5.5-12

 ---

15

66

30

0.3-1.0

SH-BDM-21-02

M20*1.5B

NPT1/2B

G1/2B

<12

9.5-16

 ---

15

66

30

0.3-1.0

SH-BDM-21-03

M20*1.5C

NPT1/2C

G1/2C

<15

12.5-20.5

6-12

15

68

30

0.3-1.0

SH-BDM-21-04

M25*1.5B

NPT3/4B

G3/4B

<15

12.5-20.5

9-15

15

68

37

0.3-1.0

SH-BDM-21-05

M25*1.5C

NPT3/4C

G3/4C

<21

17-26

9-15

15

73

37

0.4-1.2

SH-BDM-21-06

M32*1.5B

NPT1B

G1B

<21

17-26

14-22

19

77

45

0.4-1.2

SH-BDM-21-07

M32*1.5C

NPT1C

G1C

<27

22-33

14-22

19

81

45

0.4-1.4

SH-BDM-21-08

M40*1.5B

NPT1-1/4B

G1-1/4B

<27

22-33

19-28

19

81

55

0.6-1.9

SH-BDM-21-09

M40*15C

NPT1-1/4C

G1-1/4C

<33

28-41

24-33

19

88

55

0.6-2.2

SH-BDM-21-10

M50*1.5B

NPT1-1/2B

G1-1/2B

<33

28-41

29-41

19

88

65

0.8-2.3

SH-BDM-21-11

M50*1.5C

NPT1-1/2C

G1-1/2C

<43

36-52.6

29-41

19

96

65

0.8-2.3
