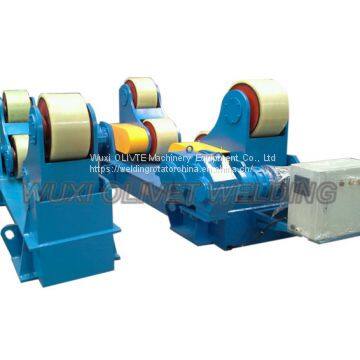

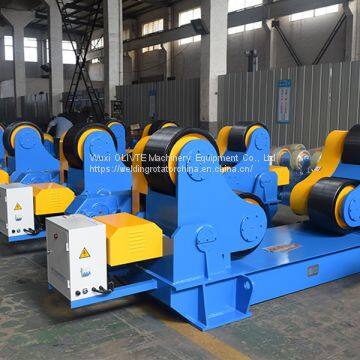

Double Driving Self Aligning Rotator-HGZT Series Self aligning Welding Rotator small positioner manufacturer
Stable Rotating Process
The HGZT series double driving self aligning rotator has two drive units which arrange of a continuous rotation with frequency convension stepless speed controlling. The 4 rollers joint align themselves via the diameter of the workpiece.
self-aligning rotator Features
A. For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.
B. Welded, robust steel construction.
C. Adjustable rotating speed.
D. Automatically matching different diameter of workpiecec
E. Unit equipped with 4 rollers each.
Scope of Delivery
A. 1 Power and 1 Idler turning rolls
B. 1 Electric control system
1 control panel
1 remote pendant
Self-aligning Welding Rotator Main Technical Parameters
Model |
Max. load |
Workpieces dia. |
Roller material |
Roller dia. |
Roller width |
Rolling speed |
Roller motor |
HGZT-5 |
5,000kg |
Ø250-Ø2,500mm |
Steel coated with PU |
Ø250mm |
100mm |
6-60m/h |
2x0.37kw |
HGZT-10 |
10,000kg |
Ø320-Ø3,200mm |
Steel coated with PU |
Ø300mm |
120mm |
6-60m/h |
2x0.55kw |
HGZT-20 |
20,000kg |
Ø500-Ø3,800mm |
Steel coated with PU |
Ø350mm |
150mm |
6-60m/h |
2x1.1kw |
HGZT-30 |
30,000kg |
Ø550-Ø4,000mm |
Steel coated with PU |
Ø350mm |
160mm |
6-60m/h |
2x1.5kw |
HGZT-40 |
40,000kg |
Ø600-Ø4,500mm |
Steel coated with PU |
Ø400mm |
160mm |
6-60m/h |
2x1.5kw |
HGZT-60 |
60,000kg |
Ø750-Ø5,000mm |
Steel coated with PU |
Ø450mm |
180mm |
6-60m/h |
2x2.2kw |
HGZT-80 |
80,000kg |
Ø850-Ø5,500mm |
Steel coated with PU |
Ø450mm |
240mm |
6-60m/h |
2x3kw |
HGZT-100 |
100,000kg |
?1,000-?6,300mm |
Steel coated with PU |
?500mm |
240mm |
6-60m/h |
2x3kw |
HGZT-150 |
150,000kg |
?1,000-?6,300mm |
Steel coated with PU |
?500mm |
300mm |
6-60m/h |
2x4kw |
Welding Rotator contain self-Adjusting welding rotator and adjustable welding Rotating Machine, you can't miss the single-driving self-alignment welding turning-roll in our company.
For more welding equipment, please click here to visit our website.
/
