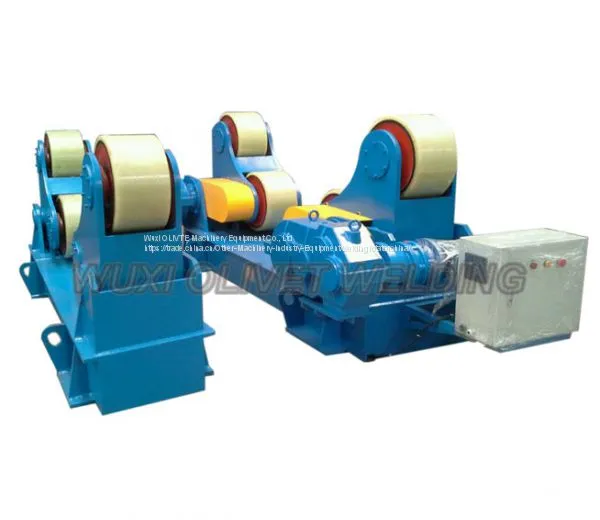

Double Driving Self Aligning Rotator-HGZT Series
Welding rotators are designed to move the work piece under the welding head.
Olivet’s range of double driving self aligning welding rotators provide an economical and practical answer to cylindrical vessel rotating and handling problems.
Stable Rotating Process
The HGZT series double driving self aligning rotator has two drive units which arrange of a continuous rotation with frequency convension stepless speed controlling. The 4 rollers joint align themselves via the diameter of the workpiece.
Features
A. For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.
B. Welded, robust steel construction.
C. Adjustable rotating speed.
D. Automatically matching different diameter of workpiecec
E. Unit equipped with 4 rollers each.
Scope of Delivery
A. 1 Power and 1 Idler turning rolls
B. 1 Electric control system
1 control panel
1 remote pendant
Main Technical Parameters
Model |
Max. load |
Workpieces dia. |
Roller material |
Roller dia. |
Roller width |
Rolling speed |
Roller motor |
HGZT-5 |
5,000kg |
Ø250-Ø2,500mm |
Steel coated with PU |
Ø250mm |
100mm |
6-60m/h |
2x0.37kw |
HGZT-10 |
10,000kg |
Ø320-Ø3,200mm |
Steel coated with PU |
Ø300mm |
120mm |
6-60m/h |
2x0.55kw |
HGZT-20 |
20,000kg |
Ø500-Ø3,800mm |
Steel coated with PU |
Ø350mm |
150mm |
6-60m/h |
2x1.1kw |
HGZT-30 |
30,000kg |
Ø550-Ø4,000mm |
Steel coated with PU |
Ø350mm |
150mm |
6-60m/h |
2x1.5kw |
HGZT-40 |
40,000kg |
Ø600-Ø4,500mm |
Steel coated with PU |
Ø400mm |
160mm |
6-60m/h |
2x1.5kw |
HGZT-60 |
60,000kg |
Ø750-Ø5,000mm |
Steel coated with PU |
Ø450mm |
180mm |
6-60m/h |
2x2.2kw |
HGZT-80 |
80,000kg |
Ø850-Ø5,500mm |
Steel coated with PU |
Ø450mm |
240mm |
6-60m/h |
2x3kw |
HGZT-100 |
100,000kg |
Ø1,000-Ø6,300mm |
Steel coated with PU |
Ø500mm |
240mm |
6-60m/h |
2x3kw |
HGZT-150 |
150,000kg |
Ø1,000-Ø6,300mm |
Steel coated with PU |
Ø500mm |
300mm |
6-60m/h |
2x4kw |
