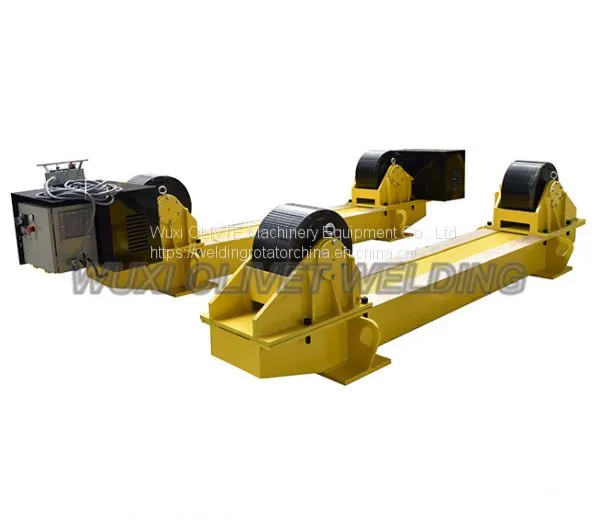

Adjustable Turning Rolls - HGK Series
The HGK series Adjustable Turning Rolls has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling.
Adjustable Turning Rolls - HGK Series
Stable Rotating Process
The HGK series adjustable turning rolls has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling. A hand held, low voltage control pendant on a 10-metre cable provides the operator with full control of the rotator including a potentiometer for varying the speed, forward/reverse and stop.
Single-driving Self-alignment Welding turning-roll Features
A. For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.
B. Welded, robust steel construction.
C. Adjustable rotating speed.
D. Large range center distance to match diffrent diameter of workpiecec
E. Compact and robust design, easy to operate.
Scope of Delivery
A. 1 Power and 1 Idler turning rolls
B. 1 Electric control system
1 control panel
1 remote pendant
Welding Rotator Main Technical Parameters
Model |
Max. load |
Workpieces dia. |
Roller material |
Roller dia. |
Roller width |
Rolling speed |
Roller motor |
HGK-2 |
2,000kg |
Ø150-Ø2,000mm |
Steel coated with PU |
Ø200mm |
80mm |
6-60m/h |
2x0.18kw |
HGK-5 |
5,000kg |
Ø250-Ø2,800mm |
Steel coated with PU |
Ø250mm |
120mm |
6-60m/h |
2x0.37kw |
HGK-10 |
10,000kg |
Ø300-Ø3,200mm |
Steel coated with PU |
Ø300mm |
130mm |
6-60m/h |
2x0.55kw |
HGK-20 |
20,000kg |
Ø500-Ø4,500mm |
Steel coated with PU |
Ø350mm |
180mm |
6-60m/h |
2x1.1kw |
HGK-40 |
40,000kg |
Ø500-Ø5,000mm |
Steel coated with PU |
Ø400mm |
220mm |
6-60m/h |
2x1.5kw |
HGK-60 |
60,000kg |
Ø500-Ø5,000mm |
Steel coated with PU |
Ø450mm |
2x180mm |
6-60m/h |
2x2.2kw |
HGK-80 |
80,000kg |
Ø800-Ø6,000mm |
Steel coated with PU |
Ø450mm |
2x180mm |
6-60m/h |
2x3kw |
HGK-100 |
100,000kg |
Ø800-Ø6,000mm |
Steel coated with PU |
Ø500mm |
2x200mm |
6-60m/h |
2x3kw |
HGK-160 |
160,000kg |
Ø800-Ø6,000mm |
Forging Steel 42CrMo |
Ø550mm |
200mm |
6-60m/h |
2x4kw |
HGK-200 |
200,000kg |
Ø800-Ø6,500mm |
Forging Steel 42CrMo |
Ø650mm |
250mm |
6-60m/h |
2x4kw |
HGK-250 |
250,000kg |
Ø800-Ø6,500mm |
Forging Steel 42CrMo |
Ø650mm |
250mm |
6-60m/h |
2x5.5kw |
HGK-300 |
300,000kg |
Ø800-Ø6,500mm |
Forging Steel 42CrMo |
Ø700mm |
300mm |
6-60m/h |
2x5.5kw |
HGK-500 |
500,000kg |
Ø1,000-Ø8,000mm |
Forging Steel 42CrMo |
Ø750mm |
350mm |
6-60m/h |
2x7.5kw |
HGK-800 |
800,000kg |
Ø1,000-Ø8,000mm |
Forging Steel 42CrMo |
Ø850mm |
400mm |
6-60m/h |
2x11kw |
HGK-1000 |
1,000,00kg |
Ø1,000-Ø8,000mm |
Forging Steel 42CrMo |
Ø900mm |
500mm |
6-60m/h |
2x15kw |
