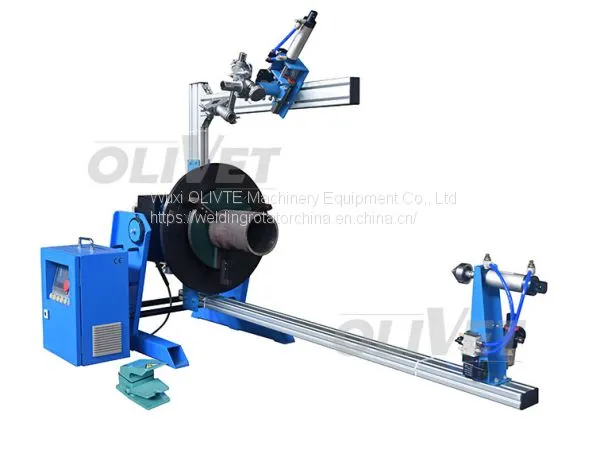

HBJ-PLC Automatic Welding Positioner
Olivet has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work.
Light-duty Positioner - HBJ-PLC Series
Pratical and Versatile
Olivet has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's HBJ-PLC Series light duty welding positioners are with capacities ranging for 100 to 300kgs.
light duty welding postioner, pipe positioner, small positioner, welding positioner
Features
l For annular welding, cutting, polishing and assembly.
l Easy to set up a small welding center equipped with quick chuck, torch holder and roller supports.
l PLC + touch screen to ensure fully auto welding control.
l 4 welding models and 2/4 cycles for free choose.
l Kinds of extended devices, pneumatic torch holder, cone and welder connecting delay control
l High frequency protection on electric box
l Compact and robust design, easy to operate.
Scope of Delivery
A. 1 Body
B. 1 PLC + tourch screen electric box
1 control foot switch
Main Technical Parameters
Model |
Horizontal load |
Vertical Load |
Rotation speed |
Tilting range |
Table dia. |
Table center hole |
HBJ-PLC100 |
100 kg |
50 kg |
0-9 rpm |
0 º -90 º/ manual |
Ø 400 mm |
Ø 45 mm |
HBJ-PLC200 |
200 kg |
100 kg |
0-5 rpm |
0 º -90 º/ manual |
Ø 400 mm |
Ø 45 mm |
HBJ-PLC300 |
300 kg |
150 kg |
0-5 rpm |
0 º -90 º/ manual |
Ø 500 mm |
Ø 90 mm |
PLC+ touch screen + stepper motor for fully automatic welding | ||||||
