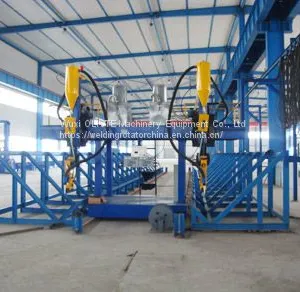

H-Beam Automatic Welding Machine
There LHA gantry type, LHC cantilever type H-Beam Automatic Welding Machine and LHT double column-beam automatic welding machine.
It adopts A.C.inverter control, with functions of stable running and fast traveling speed; The seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy; The main frame and welding machine are intergrated control, with flux auto-recovering system and it is easy to operate with high efficiency.
LHT double column-beam automatic welding machine can weld two pieces of beam at the same time, and the web height of beam is not limited by main machine.
Applied flange width |
200-800mm |
Applied web height |
200-1500mm |
Beam length |
4000-15000mm |
Rail span |
4000mm |
Rail length |
18000mm |
Welding speed |
120-1200mm/min |
Welding position |
Vessel position |
Wire size |
3.2－5mm |
Flux recycling system |
100kg*2 |
Main machine power |
9Kw (excluding two SAW welders |
