Total Solution Turnkey Service for Hospital Constructing Project of Modular Clean Operating Rooms

Total Solution Turnkey Service for Hospital Constructing Project of Modular Clean Operating Rooms

Modular Clean Operating Rooms are mature products, widely used by many modern hospitals / clinics in different countries all over the world.

All equipment and materials of the Modular Clean Operating Rooms are designed to different modules, finished in manufacturers' workshops. Comparing with traditional civil Operating Theaters, the Modular Operating Theaters need much less installing jobs and costs.

Especially, with Laminar Air Flow Clean technologies, the Modular Clean Operating Rooms can supply a constact temperature & humidity clean environment for medical operation.

As normal, a Modular Clean Operating Room includes different series equpment and materials as:

1, Contructing Materials, including operating theater wall modules, operating theater ceiling modules, Manual / Automatic Air-Tight Doors, Pass Box, etc., to construct an air-sealed space;

2, Air Clean Equipment, including Air Handling Unit / AHU, Air Ducts, Air Outlets (supply air and return air), Controllers, etc., to supply Laminar Air Flow in operating theater and keep air in constact temperature, constant humidity, and clean staturs;

3, Operating Theatre Furniture, including in-wall-mounting Stainless Steel Cabinets, Recording Shelf, out room Scrub Sink Unit, etc.;

4, Medical Equipment, including Ceiling Mount Medical Pendants, Surgery Lamps, Medical Gas Outlets Unit, Operating Room Central Control Panel, X-Ray Viewer, this equipment shall be installed when modular operating theatre constructing.

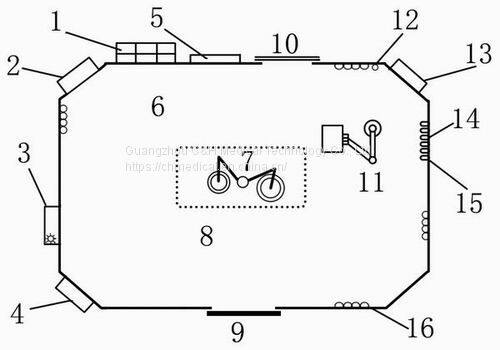

In a typical Modular Clean Operating Rooms with Laminar Air Flow function, we can see equipment as follow picture shows:

They are:

1, Central Operating Theater / Operating Room Control Panel Unit

2, Stainless Steel Pharmaceutical Cabinet

3, Fold-able Writting Shelf

4, Stainless Steel Medical Instrument Cabinet

5, X-Ray Viewer

7, Surgery Lamp

8, Ceiling Mount Infusion Poles & Rails

9, Hermetic Operating Theater Door (to Clean Area Corridor)

10, Pass Box (to Non-Clean Area Corridor)

11, Ceiling Medical Pendant Column

12, Electrical Socekts Unit (for 3 Phase Electricity Supply)

13, Stainless Steel Anesthesia Cabinet

14, Medical Gas Outlets Unit

15, Anesthesia Gas Scavenging System / AGSS

16, Electrical Socket Unit (for 1 Phase Electricity Supply)

To avoid effecting laminar air flow in room by equipment and furniture, all these equipment and furniture are installed in wall (flush with wall) or ceiling mounted (off ground).

Also, to avoid air exchanging between clean area and non-clean area, the Laminar Air Flow Clean Operating Theater / Operating Room shall be a air-sealed room. All equipment and furniture in walls / ceilings shall be air-sealed.

However, most of the Laminar Air Flow Clean System equipment, are installed in machine rooms, above ceilings, behind walls. These equipment and installing is called as consealed works, and these consealed works is more important then those we can see, to decide a modular operating room's quality.

Guangzhou C&H Medical Technology Co., Ltd. is a professional manufacturer of Laminar Air Flow Clean Operating Theater / Operating Room equipment in China. We supply all equipment, furniture, and contructing materials of the Modular Type Laminar Air Flow Clean Operating Theaters / Operating Rooms.

Also, we supply turn-key service for the Modular Type Laminar Air Flow Clean Operating Theaters / Operating Rooms (and other function auxiliary rooms such as ICU, CSSD, etc.) including designing, manufacturing, installing, testing, commissioning.

We have good experience for many turn-key projects in China and oversea countries.

Please contact us for more inforamtion.

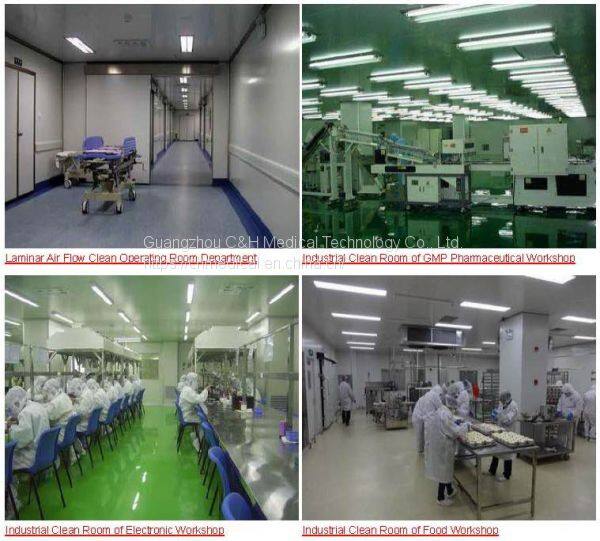

Laminar Air Flow Clean Operating Room Department
