Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Price of 4c x 25mm2 Copper Power Cable Armoured Cable

Price of 4c x 25mm2 Copper Power Cable Armoured Cable

Name: Price of 4c x 25mm2 Copper Power Cable Armoured Cable
Brand: Qingzhou cable
SKU: 164030419

Price of 4c x 25mm2 Copper Power Cable Armoured Cable thumbnail-1

Price of 4c x 25mm2 Copper Power Cable Armoured Cable thumbnail-2

Price of 4c x 25mm2 Copper Power Cable Armoured Cable thumbnail-3

Price of 4c x 25mm2 Copper Power Cable Armoured Cable thumbnail-4

Price of 4c x 25mm2 Copper Power Cable Armoured Cable thumbnail-5

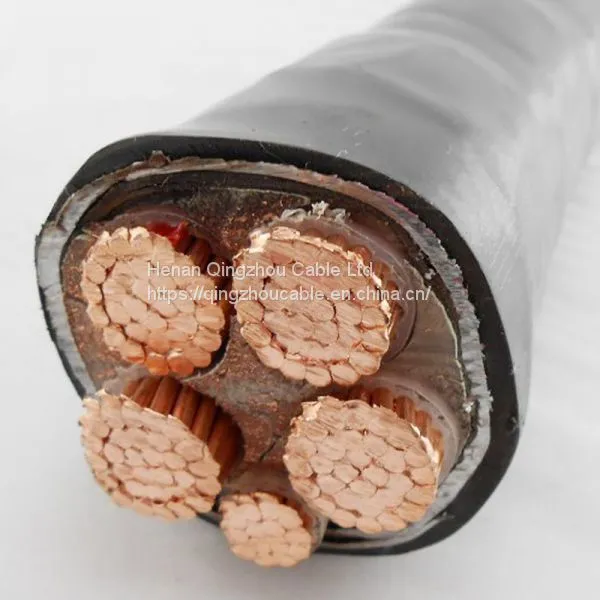

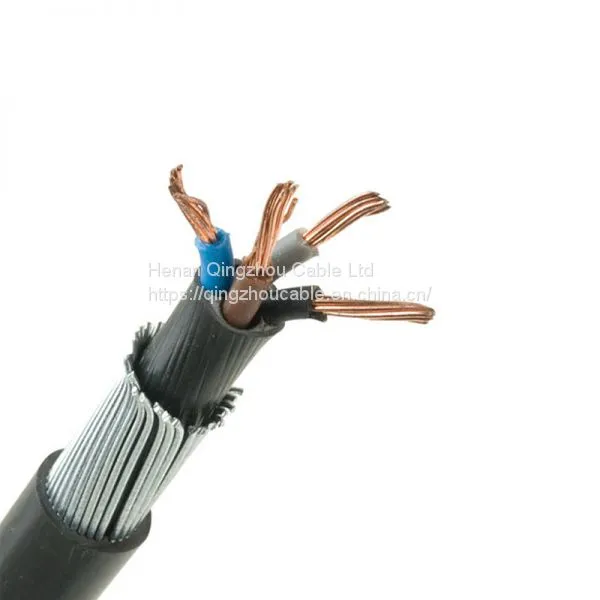

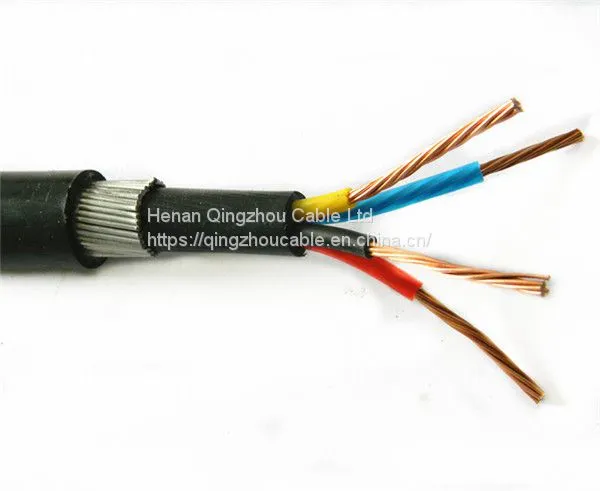

Price of 4c x 25mm2 Copper Power Cable Armoured Cable photo-1

Price of 4c x 25mm2 Copper Power Cable Armoured Cable photo-2

Price of 4c x 25mm2 Copper Power Cable Armoured Cable photo-3

Price of 4c x 25mm2 Copper Power Cable Armoured Cable photo-4

Price of 4c x 25mm2 Copper Power Cable Armoured Cable photo-5

US$ 1 - 50 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Brand Name:

Qingzhou cable

Place of Origin:

China

Model Number:

YJV YJLV YJV22 YJV32 VV VV22 VV32

Contact Supplier Request Quote Chat Now

Henan Qingzhou Cable Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao,shanghai,tianjin

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Brand Name Qingzhou cable

Place of Origin China

Model Number YJV YJLV YJV22 YJV32 VV VV22 VV32

Type Low Voltage

Application Construction

Insulation Material XLPE

Jacket PVC

Conductor Material Copper

APPLICATION

XLPE/PVC Armoured Power Cable

These include low voltage and medium voltage SWA steel wire armour cable, and all sizes of these widely used armoured power cables with current ratings up to 35kV. For single core cables, aluminium wire armour - AWA - is used to prevent induced current in the armour. Armoured power cables are available with both copper and aluminium conductors as required.
The armour provides additional protection where mechanical stress has the potential to cause damage to the cable, such as direct burial, outdoors or underground. The armour also enables the cable to withstand higher pulling loads. It should be noted, however, that the armour provides no protection for climatic conditions.

Armoured cables are often referred to as steel wire armoured cables, SWA cable, mains power cable, single core power cable, and multi-core booklet armoured cable.

Armoured Control Cable,450/750V Control Cable

Control cable are suitable for the wiring of electric controlling equipments and instrument, monitoring and controlling return circuit ,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750 AC

CONSTRUCTION

Voltage rating for Armoured Cable	No. x Nominal Cross Section of Conductor No. x mm2
Voltage rating for Armoured Cable	1 core	2 core	3 core	3+1 core	4core	3+2 core	4+1 core	5 core
0.6/1 kV	1x4 mm2	2x4 mm2	3x4 mm2	3x4 mm2 + 1x2.5mm2	4x4 mm2	3x4 mm2 + 2x2.5mm2	4x4 mm2 + 1x2.5mm2	5x2.5 mm2
	1x6 mm2	2x6 mm2	3x6 mm2	3x6 mm2 + 1x4 mm2	4x6 mm2	3x6 mm2 + 2x4 mm2	4x6 mm2 + 1x4 mm2	5x4 mm2
	1x10 mm2	2x10 mm2	3x10 mm2	3x10 mm2 + 1x6 mm2	4x10 mm2	3x10 mm2 + 2x6 mm2	4x10 mm2 + 1x6 mm2	5x6 mm2
	1x16 mm2	2x16 mm2	3x16mm2	3x16 mm2 + 1x10 mm2	4x16 mm2	3x16 mm2 + 2x10 mm2	4x16 mm2 + 1x10 mm2	5x10 mm2
	1x 25 mm2	2x 25 mm2	3x 25 mm2	3x25 mm2 + 1x16mm2	4x25 mm2	3x25 mm2 + 2x16mm2	4x25 mm2 + 1x16mm2	5x16 mm2
	1x35 mm2	2x35 mm2	3x 35 mm2	3x35 mm2 + 1x16mm2	4x35 mm2	3x35 mm2 + 2x16mm2	4x35 mm2 + 1x16mm2	5x25 mm2
	1x50 mm2	2x50 mm2	3x 50 mm2	3x50 mm2 + 1x25mm2	4x50 mm2	3x50 mm2 + 2x25mm2	4x50 mm2 + 1x25mm2	5x35 mm2
	1x70 mm2	2x70 mm2	3x 70 mm2	3x70 mm2 + 1x35mm2	4x70 mm2	3x70 mm2 + 2x35mm2	4x70 mm2 + 1x35mm2	5x50 mm2
	1x95 mm2	2x95 mm2	3x 95 mm2	3x95 mm2 + 1x50mm2	4x95 mm2	3x95 mm2 + 2x50mm2	4x95 mm2 + 1x50mm2	5x70 mm2
	1x120 mm2	2x120 mm2	3x 120 mm2	3x120mm2 + 1x70mm2	4x120 mm2	3x120mm2 + 2x70mm2	4x120mm2 + 1x70mm2	5x95 mm2
	1x150 mm2	2x150 mm2	3x 150 mm2	3x150mm2 + 1x70mm2	4x150 mm2	3x150mm2 + 2x70mm2	4x150mm2 + 1x70mm2
	1x185 mm2	2x185 mm2	3x 185 mm2	3x185mm2 + 1x95mm2	4x185 mm2	3x185mm2 + 2x95mm2	4x185mm2 + 1x95mm2
	1x240 mm2		3x 240 mm2	3x240mm2 + 1x120mm2	4x240 mm2	3x240mm2 + 2x120mm2	4x240mm2 + 1x120mm2
	1x300 mm2		3x 300 mm2	3x300mm2 + 1x150mm2	4x300 mm2	3x300mm2 + 2x150mm2	4x300mm2 + 1x150mm2
	1x400 mm2
	1x500 mm2

XLPE insulated Armored Power Cable

1). 0.6/1kV, Single Core, Cu or Al/XLPE/PVC Power Cable;
0.6/1kV, Single Core, Cu or Al/XLPE/PVC/AWA/PVC Power Cable;

(2). 0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(3). 0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(4). 0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC Power Cable;

0.6/ 1kV ,3 +1Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(5). 0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(6). 0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(7). 0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(8). 0.6/ 1kV ,3+2 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

PVC insulated Armored Power Cable

0.6/1kV PVC Insulated Power Cable	Conductor		Insulation	Armor				Outer Sheath
0.6/1kV PVC Insulated Power Cable	Aluminum	Copper	PVC	SW	ST	DST	AW	PVC	PE
Cu/PVC/PVC		P	P	---	---	---	---	P
Cu/PVC/PE		P	P	---	---	---	---		P
Al/PVC/PVC	P		P	---	---	---	---	P
Al/PVC/PE	P		P	---	---	---	---		P
Cu/PVC/STA/PVC		P	P	---	P	---	---	P
Cu/PVC/STA/PE		P	P	---	P	---	---		P
Al/PVC/STA/PVC	P		P	---	P	---	---	P
Al/PVC/STA/PE	P		P	---	P	---	---		P
Cu/PVC/DSTA/PVC		P	P	---	---	P	---	P
Cu/PVC/DSTA/PE		P	P	---	---	P	---		P
Al/PVC/DSTA/PVC	P		P	---	---	P	---	P
Al/PVC/DSTA/PE	P		P	---	---	P	---		P
Cu/PVC/SWA/PVC		P	P	P	---	---	---	P
Cu/PVC/SWA/PE		P	P	P	---	---	---		P
Al/PVC/SWA/PVC	P		P	P	---	---	---	P
Al/PVC/SWA/PE	P		P	P	---	---	---		P
Cu/PVC/AWA/PVC		P	P	---	---	---	P	P
Cu/PVC/AWA/PE		P	P	---	---	---	P		P
Al/PVC/AWA/PVC	P		P	---	---	---	P	P
Al/PVC/AWA/PE	P		P	---	---	---	P		P
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

Armoured Control Cable

Name	Section Area(m㎡)	No. of Core	Application Site
Copper Conductor, PVC Insulated and Sheathed Control Cable	0.75、1.0、1.5、2.5	1-16	Permanent installation indoors, in cable ditches or pipes
	4、6	2-14
	10	2-10
Copper Conductor, PVC Insulated and Sheathed ,Braiding Shielded Control Cable	0.75、1.0、1.5、2.5	2-61	Permanent installation indoors, in cable ditches or pipes where shielding is required
	4、6	2-14
	10	2-10
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable	0.75、1.0、1.5、2.5	4-10	Permanent installation indoors, in cable ditches or pipes where shielding is required
	4、6	7-61
	10	4-10
Copper Conductor, PVC Insulated and Sheathed, Steel tape Armoured Control Cable	0.75、1.0、1.5、2.5	7-16	Permanent installation indoors, in cable ditches, Be able to withstand stronger external mechanical force
	4、6	4-14
	10	4-14
Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
Copper Conductor, PVC Insulated and Sheathed ,Braiding Shielded Flexible Control Cable	0.5、0.75、1.0	4-61	Installation indoors where flexibility shielding and movability are required
	1.5、2.5	4-48
Copper Conductor, XLPE Insulated and PVC Sheathed Control Cable	0.75、1.0、1.5、2.5	2-16	Permanent installation indoors, in cable ditches or pipes
	4、6	2-14
	10	2-10
Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Control Cable	0.75、1.0、1.5、2.5	2-61	Permanent installation indoors, in cable ditches or pipes where shielding is required
	4、6	2-14
	10	2-10
Copper Conductor, XLPE Insulated, Steel-tape Armoured, PVC Sheathed Control Cable	0.75、1.0、1.5、2.5	7-61	Permanent installation indoors, in cable ditches, pipes or underground. Be able to withstand stronger external mechanical force
	4、6	4-14
	10	4-10
Copper Conductor, XLPE Insulated, Copper tape Screened, PVC Sheathed Control Cable	0.75、1.0、1.5、2.5	7-61	Permanent installation indoors, in cable ditches or pipes where shielding is required
	4、6	4-14
	10	4-10
Copper Conductor, XLPE Insulated, PVC Sheathed Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable	0.5、0.75、1.0	4-61	Installation indoors where flexibility shielding and movability are required
	1.5、2.5	4-48

Product Tags: 25mm armoured cable price , electrical cables manufacturers , armoured cable prices , armoured cables 2.5 mm 3core , swa cable , armoured cables
