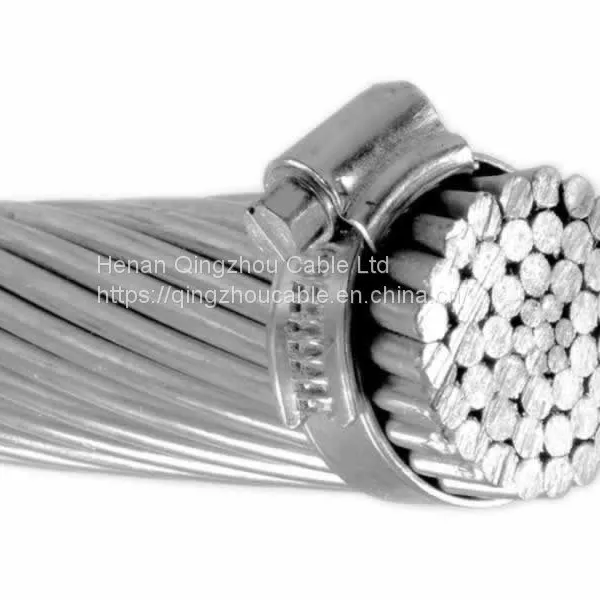

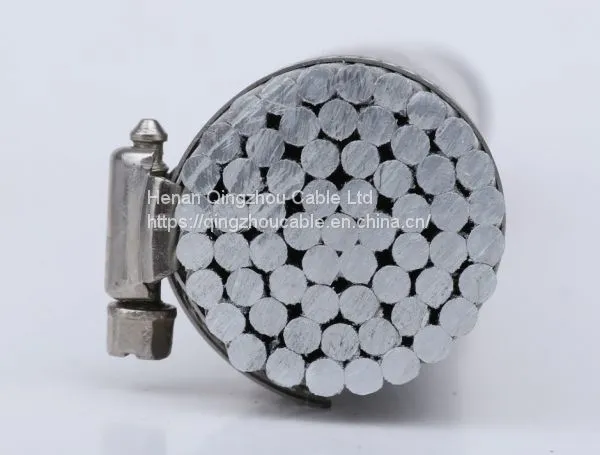

Help CenterAS/NZS 3607 ACSR/GZ Aluminium Conductors, Galvanised Steel Reinforced Overhead Conductor Bare Conductor Transmission Line
Related Products
-
ASTM B-230/ASTM B-231/CSA C49 AAC 1350 Conductor Overhead Conductor Bare Conductor Transmission LineUS$ 1 - 1.1MOQ: 1000 Meters -
AAAC 6201 Conductor Conductor Overhead Conductor Bare Conductor Transmission LineUS$ 1 - 1.1MOQ: 1000 Meters
-
Aluminium Alloy 1120 Conductors Manufactured to AS 1531 Overhead Conductor Bare AAAC Conductor Transmission LineUS$ 1 - 1.1MOQ: 1000 Meters
-
Aluminium Alloy 1120 Conductors Manufactured to AS 1531 Overhead Conductor Bare AAAC Conductor Transmission LineUS$ 1 - 1.1MOQ: 1000 Meters
-
Copper Clad Steel CCS ConductorUS$ 1 - 1.1MOQ: 1000 Meters
ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.
ACSR/GZ – Aluminium conductors, galvanised steel reinforced
AS/NZS 3607
Product |
Strand/wire |
Cross sectional area |
Nominal |
Approximate |
Calculated |
Calculated |
Coefficient |
|||
Alum |
Steel |
Alum |
Steel |
Total |
||||||
QUINCE |
3/1.75 |
4/1.75 |
7.2 |
9.6 |
16.8 |
5.3 |
96 |
12.7 |
136 |
13.9 |
RAISIN |
3/2.50 |
4/2.50 |
14.7 |
19.6 |
34.3 |
7.5 |
193 |
24.4 |
136 |
13.9 |
SUPER SULTANA |
3/3.00 |
4/3.00 |
21.2 |
28.3 |
49.5 |
9 |
280 |
35 |
136 |
13.9 |
SULTANA |
4/3.00 |
3/3.00 |
28.3 |
21.2 |
49.5 |
9 |
242 |
28.3 |
119 |
15.2 |
WALNUT |
4/3.75 |
3/3.75 |
44.2 |
33.1 |
77.3 |
11.3 |
379 |
43.9 |
119 |
15.2 |
ALMOND |
6/2.50 |
1/2.50 |
29.2 |
4.9 |
34.4 |
7.5 |
119 |
10.5 |
83 |
19.3 |
APRICOT |
6/2.75 |
1/2.75 |
35.6 |
5.9 |
41.5 |
8.3 |
144 |
12.6 |
83 |
19.3 |
APPLE |
6/3.00 |
1/3.00 |
42.4 |
7.1 |
49.5 |
9 |
171 |
14.9 |
83 |
19.3 |
BANANA |
6/3.75 |
1/3.75 |
66.3 |
11 |
77.3 |
11.3 |
268 |
22.8 |
83 |
19.3 |
CHERRY |
6/4.75 |
7/1.60 |
106 |
14.1 |
120 |
14.3 |
404 |
33.2 |
80 |
19.9 |
GRAPE |
30/2.50 |
7/2.50 |
147 |
34.4 |
182 |
17.5 |
677 |
63.5 |
88 |
18.4 |
LEMON |
30/3.00 |
7/3.00 |
212 |
49.5 |
262 |
21 |
973 |
90.4 |
88 |
18.4 |
LYCHEE |
30/3.25 |
7/3.25 |
249 |
58.1 |
307 |
22.8 |
1140 |
105 |
88 |
18.4 |
LIME |
30/3.50 |
7/3.50 |
289 |
67.3 |
356 |
24.5 |
1320 |
122 |
88 |
18.4 |
MANGO |
54/3.00 |
7/3.00 |
382 |
49.5 |
431 |
27 |
1440 |
119 |
78 |
19.9 |
ORANGE |
54/3.25 |
7/3.25 |
448 |
58.1 |
506 |
29.3 |
1690 |
137 |
78 |
19.9 |
OLIVE |
54/3.50 |
7/3.50 |
519 |
67.3 |
587 |
31.5 |
1960 |
159 |
78 |
19.9 |
PAW PAW |
54/3.75 |
19/2.25 |
596 |
75.5 |
672 |
33.8 |
2240 |
178 |
77 |
20 |
PEACH |
54/4.75 |
19/2.85 |
957 |
121 |
1078 |
42.8 |
3600 |
284 |
77 |
20 |
