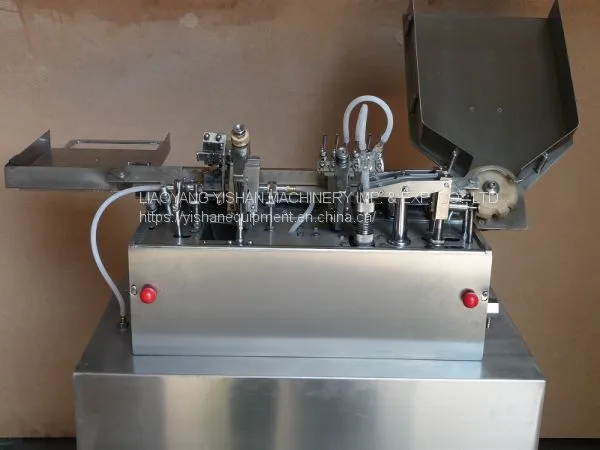

The machine is a new generation of the ampoule drawing, filling and sealing combined equipment for injections. It adopts the rectangular feeding instead of the traditional ampoule feeding methods. In such case, the feeding is steady with no easy broken ampoule. A modern clutch is mounted under the ampoule feed hopper. Therefore, the ampoule feeding can be stopped at any time while the machine is still running. So the ampoule lost can be reduced. In the part of stopping filling, it changes electromagnetic switch into mechanical switch. It is reliable and durable. Bottle reverse and bottle arranging structure are used in the device of bottle outlet. It reduces the broken rate of the finished products of ampoules tremendously.
Main Technical Specifications
| Name | Double needle ampoule drawing, filling and sealing machine | Model | AGL |
| Capacity | 3600/4200 pcs/hr | Power | 0.37kw |
| material | SS304 | Overall dimension | 1300×700×1400mm |
| Oxygen consumption | 2-3m3/hr | LPG consumption | 200L/hr |
| It’s suitable for filling and sealing in sterile condition. It adopts two step driving system. Take two ampoules each time, consisting of ampoule feeding, pre nitrogen filling, liquid filling, post nitrogen filling, drawing and sealing. | |||
