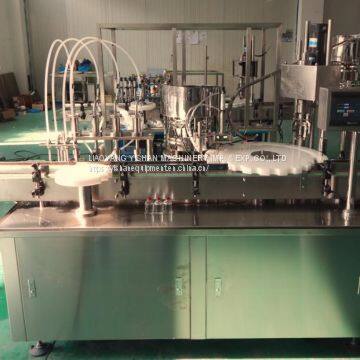

Automatic Liquid Filling Stoppering and Capping Machine

Automatic liquid filling stoppering and capping machine

     Features

·          sensitive control system, stable performance, and easy operation

·          continuously bottle feeding and out- feeding, no bottle jam, no bottle fallen

·          fine adjustment for filling pump, high filling accuracy

·          star-wheel can be changed easily, simple operation

·          capping head can be changed to fit plastic or aluminum caps, or other different type of caps

·          capping head’s height can be adjusted to treat different bottle from short to long

·          All the part contact with bottle or medicine liquid is made of SS304 or SS316L, or the material comply with FDA, and GMP.

Technical parameter and main component

1.  Bottle feeding machine

This automatic filling machine is composed of turn table, bottle transfer channel. This machine can store and buffer bottles and change the bottle flow direction.

application: round bottle that can stand on the table steadily

turn table dia. :   φ700

transfer capability : comply with the filling machine

power supply:    220V   50HZ

power:    0.12KW

outside dimension:    720×1100×950mm

2.  Filling stoppering and capping machine

Integrated the filling stoppering and capping machine in one compact machine, it can finish the following procedure automatically , filling , stopper arranging, stopper putting, and stopper pressing, bottle out feeding and capping etc. the machine runs smoothly with stable function, accurate filling, and complies with GMP.

Capacity:  50-60pcs/min

Filling station:  4

Filling range:   30-250ml

filling tolerance ：±1%

Capping station: ONE

Qualified cap putting: more or equal then 98%

Qualified capping: more or equal then 98%

Speed regulation: by inverter

power supply：    380V  50Hz

power：     1.5kw

outside dimension：2440×1270×1550mm

This liquid filling line can be customized as per client's bottle and requirement.
