TDP Series Single Punch Tablet Press
US$ 750 - 1200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Single Punch
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days
Related Products
-
Rotary Tablet Press (Pressure Enhanced Type)US$ 3000 - 3500MOQ: 1 Set -
THP Series Flower Basket Tablet PressUS$ 3000 - 7000MOQ: 1 Set
-
ZP15/17/19 Rotary Tablet Press MachineUS$ 3500 - 8000MOQ: 1 Set
-
DP-12/25 Single Punch Tablet Press MachineUS$ 1000 - 5000MOQ: 1 Set
-
ZP33 Rotary Tablet PressNegotiableMOQ: 1 Set
Place of Origin
China
Type
Single Punch
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New

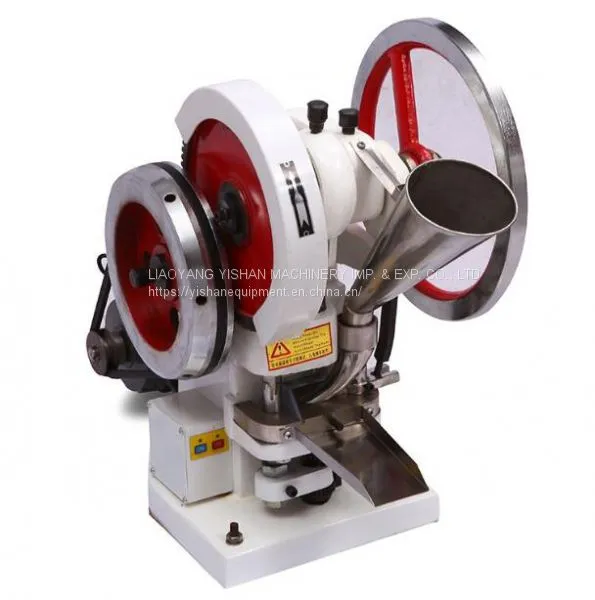

TDP Series Single Punch Tablet Press
Features
This machine is designed for pressing round and irregular shaped tablets from various granular materials, applicable to lab research and small scale production. As its feature, it is a small desk-top continuous press driven by motor or man-power. Only one set of punch and die is mounted, the depth of the filling material and the thickness of the tablets can be adjusted.
Technical parameter
Model |
TDP-1.5 |
TDP-5 |
TDP-6 |
Max. pressure（KN） |
15 |
50 |
60 |
Max. tablet diameter（mm） |
12 |
20 |
25 |
Max. filling depth（mm） |
12 |
16 |
16 |
Max. tablet thickness（mm） |
6 |
6 |
8 |
Capacity（pcs/hr） |
About 6000 |
About 6000 |
About 5000 |
Power（KW） |
0.37 |
0.75 |
1.1 |
Overall dimension（mm） |
700*370*800 |
700*400*800 |
700*500*900 |
weight（KG） |
45 |
125 |
140 |
