Main application

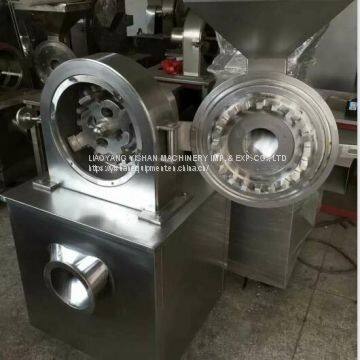

This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Our brand:YISHAN
Working principle:
By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. Designed according to GMP standard and wholly made of stainless steel, model 30B, model 40B and 60B crushing chamber are equipped with water cooling jacket. With simple structure, high output and easy cleaning, this machine is the mot ideal crushing equipment at present
More information you can click here
Technical parameter
Spec | unit | 20B/20B Set | 30B/30B Set | 40B/40B Set | 60B/60B Set |
productive capacity | kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
speed of main shaft | r/min | 4500 | 3800 | 3400 | 2800 |
feeding granule size | mm | 6 | 10 | 12 | 15 |
finess of pulverization | mesh | 60-150 | 60-120 | 60-120 | 60-120 |
grinding motor power | kw | 4 | 5.5 | 11 | 15 |
fan power | kw | 1.5 | 1.5 | 1.5 | 2.2 |
weight | kg | 250 | 320 | 550 | 680 |
overall dimension（L×W×H） | mm | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
overall dimension （set）（L×W×H） | mm | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×1000×1750 |
