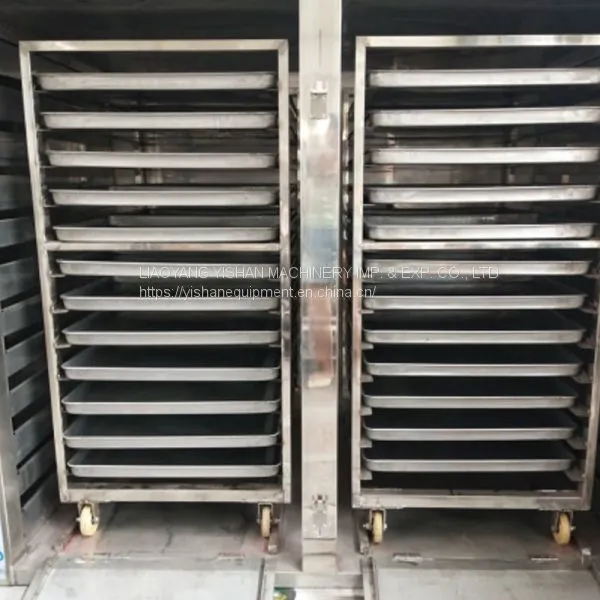

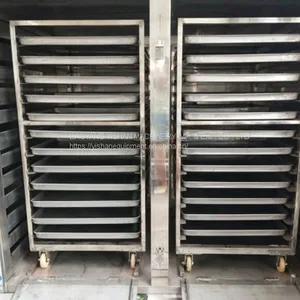

CT-C Series Hot Air Circulation Oven
Features
High heating efficiency
By means of forced air blast, the drying chamber can dry materials evenly.
Multiple heating resources, e.g. steam, hot water, electricity, far infrared.
Low noise, balanced operation, and easy temperature control, installation and maintenance.
Universal drying equipment.
Yishan-Hot Air Circulation drying Oven-Application
Heating, solidification, drying and dehydration of drugs, chemicals, food, agricultural and sideline products, marine products, e.g. raw medicines, crude drugs, traditional Chinese medicines prepared in ready-to-use forms, extracturms, powders, granular drugs, packing bottles, pigments, dyestuffs, vegetables, melons and fruits, sausages, plastic resins, electronic components and coatings.
/product-list-drying-mixing-and-granulating-machine.html
Technical data
spec. of industry standard | Spec. | batch drying cap.（Kg） | Power(Kw) | Steam to be consumed(Kg/h) | Heat radiation area（m2） | Airvelocity（m3/h） | Temp. between top and bottom （℃） | Baking trays（pcs） | Overall dimension （L×W×H）mm | Baking cart to be used （set） |
RXH-5-C | CT-C-0 | 50 | 0.45 | 10 | 10 | 3400 | ±2 | 24 | 1400×1200×2000 | 1 |
RXH-14-C | CT-C-Ⅰ | 100 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 |
RXH-27-C | CT-C-Ⅱ | 200 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 |
RXH-41-C | CT-C-Ⅲ | 300 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3220×2000 | 6 |
RXH-54-C | CT-C-Ⅳ | 400 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4450×2200×2000 | 8 |
RXH-25-A | high efficiency and high temperature far infrared sterilizing oven | 1200×1000×1600 | 1 | |||||||
