Home > Manufacturing & Processing Machinery > Glass Machine > Glass Production Line > High Quality Horizontal Glass Cleaning Machine 2500mm
US$ 24,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lever
Place of Origin:
China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal Glass Washing and Drying Machine 2000mmUS$ 24,000 - 25,000MOQ: 1 Set -
High Quality Horizontal Glass Washing and Drying Machine 2500mmUS$ 24,000 - 25,000MOQ: 1 Set
-
Customized Low E Washing Glass Machine , Flat Glass Washing Machine Max Glass Size 2500mmUS$ 1 - 100MOQ: 1 Set
-
Ceramic Tube Parts for Glass Tempering Furnace Pottery and Porcelain TubesUS$ 2 - 50MOQ: 50 Pieces
-
Universal Castor Wheels Used on Glass Process Tempering Drilling Cutting MachineUS$ 2 - 5MOQ: 1 Piece
Brand Name
Lever
Place of Origin
China
Certification
CE
Warranty
1 YEAR
Weight
3000KGS
Dimension(L*W*H)
7000mm*1000mm*2500mm
Production Capacity
98%
Condition
New
Voltage
380V
Product Description

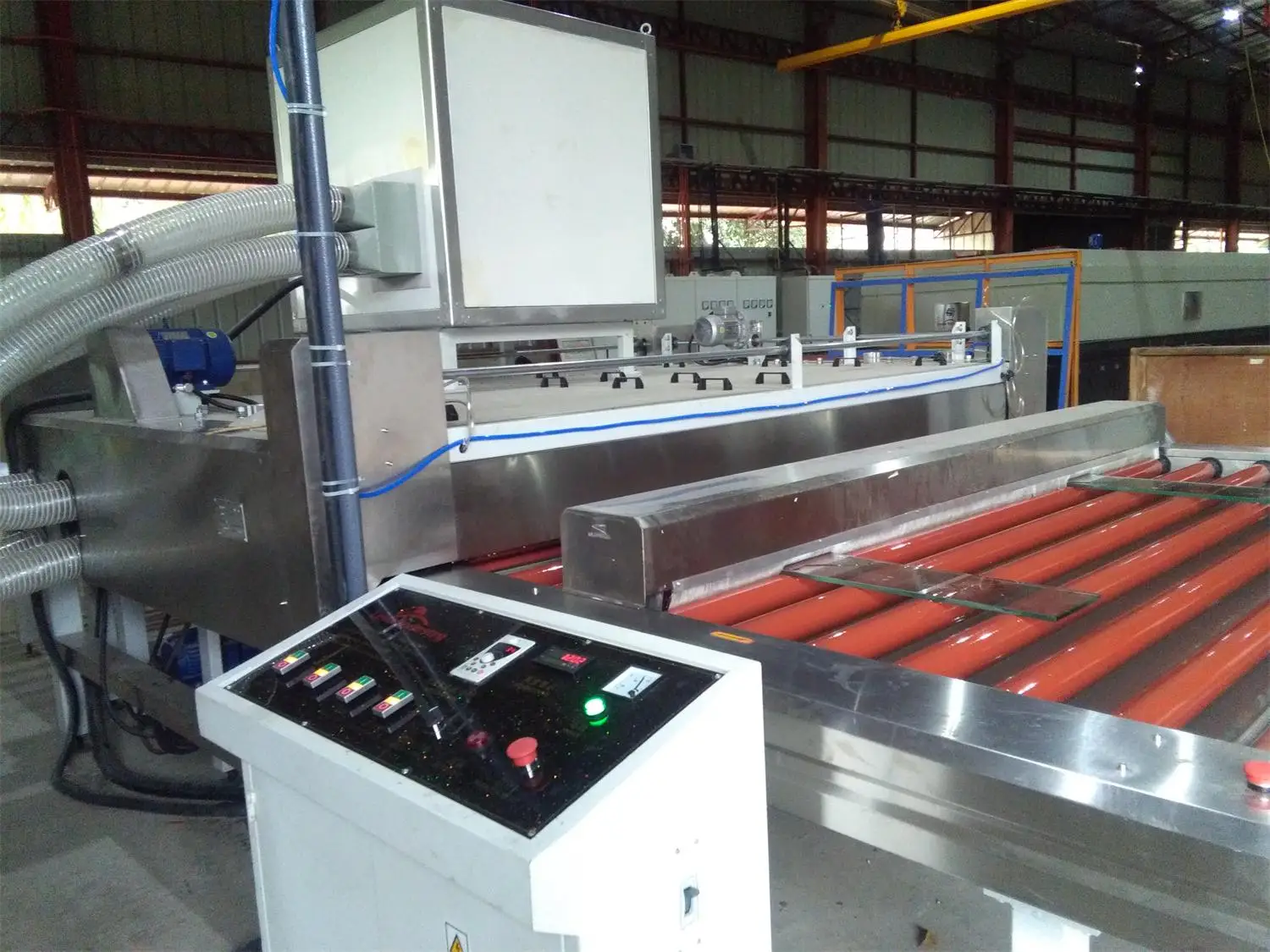

Glass washing machine is used for the flat glass washing and drying. It's a necessary equipment for glass processing Plants.
Main Features
1. Main drive is gear drive,inverter speed control and digital display,Brush roller drive of washing
section is drove by upper and lower motors with separate belts,the rotation frequency conversion to adjust speed smoothly, longer
service life, with independent air cylinder rise and fall to achieve high requirements of clearing the special glass. 2. The
machine structure is aluminum alloy assembled structure,never scrap,permanent service life,energy-efficient ,can save 70% energy.
3. The sheet metal are sprayed with powder coating or high quality oil paint. 4. The rubber roller(Φ75mm) is made of vulcanized
rubber fully coated 304 stainless steel shaft structure (no contact with acidic liquid). 5. The whole machine’s bearing seat
adopts the new waterproof and wear-resistant bearing seat developed independently 6. Cleaning section and water contact parts
sheet metal is all 304 stainless steel 7. The machine has three pairs of brushes (φ160mm), (it can be used for washing LOW-E
glass, ordinary coated glass without scratch the surface) 8. Cleaning section,air drying section can lifted 300mm(easy to cleaning
the rubber roller,roller brush,and convininent for machine maintenance. 9. The machine has two pairs of air knife which has large
wind and good drying effect. The machine has heating system. 10. Blower inlet air chamber is equipped with air filter,air knife
section using a variety of muffler measures and exhaust device, to ensure low noise interference is small;independent frame of
blower,the entire upper blower box installed in the workshop,convenient to check and clean. 11. The water tanks can be remove,
easy for cleaning, changing water, checking..etc, it can make washing effect more clean. 12. Touch screen intelligent
display,convenient for staff use, and simple operation,to use with the glass edging machine is the best way to reduce labor use.
section is drove by upper and lower motors with separate belts,the rotation frequency conversion to adjust speed smoothly, longer
service life, with independent air cylinder rise and fall to achieve high requirements of clearing the special glass. 2. The
machine structure is aluminum alloy assembled structure,never scrap,permanent service life,energy-efficient ,can save 70% energy.
3. The sheet metal are sprayed with powder coating or high quality oil paint. 4. The rubber roller(Φ75mm) is made of vulcanized
rubber fully coated 304 stainless steel shaft structure (no contact with acidic liquid). 5. The whole machine’s bearing seat
adopts the new waterproof and wear-resistant bearing seat developed independently 6. Cleaning section and water contact parts
sheet metal is all 304 stainless steel 7. The machine has three pairs of brushes (φ160mm), (it can be used for washing LOW-E
glass, ordinary coated glass without scratch the surface) 8. Cleaning section,air drying section can lifted 300mm(easy to cleaning
the rubber roller,roller brush,and convininent for machine maintenance. 9. The machine has two pairs of air knife which has large
wind and good drying effect. The machine has heating system. 10. Blower inlet air chamber is equipped with air filter,air knife
section using a variety of muffler measures and exhaust device, to ensure low noise interference is small;independent frame of
blower,the entire upper blower box installed in the workshop,convenient to check and clean. 11. The water tanks can be remove,
easy for cleaning, changing water, checking..etc, it can make washing effect more clean. 12. Touch screen intelligent
display,convenient for staff use, and simple operation,to use with the glass edging machine is the best way to reduce labor use.
Main configuration
Main frame:steel plate bending+powder coating(Make sure the frame does not change and the water does not penetrate the steel plate)
Transmission support: Custom thickening profile (to ensure the smoothness of the transmission roller and will not rust, firm and durable)
Inverter:Taida
PLC:Taida
Touch screen:Beijing Kunlun Tongtai
Up-down speed motor:Foshan Mingyiyang
Convey motor:Zhejiang Taizhou
Brush motot:Shanghai Jiaxuan
Electric elements:Delixi
High pressure blower:Nanhai Taiwei
Water Pump:Taizhou Mingou
Transmission rubber roller:made of vulcanized rubber fully coated 304 stainless steel shaft structure (gray color).
Brush:Anhui(Use nylon bristles and soft wool brushes)
All water touched parts(include sheet metal and air knife) is stainless steel
Waterproof effect (three layers of protection up and down to ensure no leakage)
Air Knife: Homemade stainless steel aluminum profiles assembled
Shield: The whole machine shield is made of sus304 stainless steel
Packing&Shipping
Plastic film packing in container by sea
