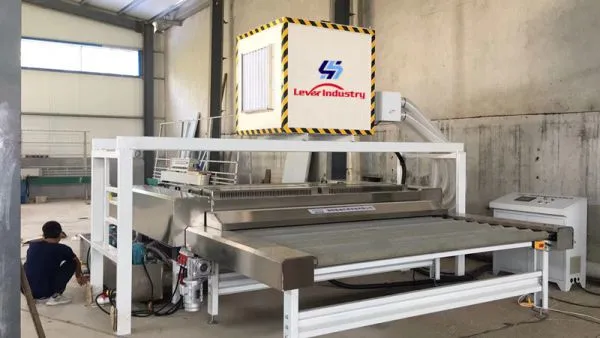

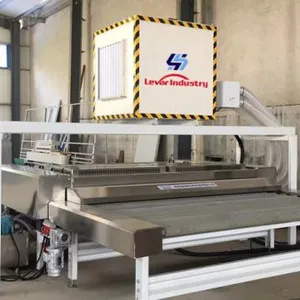

High Quality Glass Washing Machine with soft brush for Low-e glass avaiable
1. Brief introduction:
1.1. The working speed is adjustable via step regulator.
1.2. Dry system with strong wind blade which supplies strong cold wind. It have two air knifes.
1.3. The temperature is showed in digital readout.
1.4. The height working section can be adjusted integrally when glass thickness changes.
1.5. The whole cover is made in stainless steel.
2. Specification
| Model | LV-QX2500B |
| Max. width | 2500mm |
| Min. size | 380×380mm |
| Glass thickness | 3-25mm |
| Transmission speed | 0.5-10m/min |
| Power | 25kw |
| Size (L×W ×H) | 6000×3100×2700mm |
| Weight | 4000 kg |
| Volt/HZ | 3P,380V,50HZ |
3. Advanced feature with HIGH QUALITY
(1) Stainless steel cover, stainless steel water tank
(2) Washing section: brush, roller shaft with stainless steel shaft
(3) With wind blower+ wind blade cool drying system
(4) Washing section can be UP& DOWN driven by motor, max.lift height 400mm
(5) Digital display
