3 Layers EVA Laminated Glass Machine Independent System From China Factory
US$ 19,000 - 19,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lever
Place of Origin:
China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EVA Laminated Glass Machine 2 Layers Independent System From China FactoryUS$ 15,000 - 60,000MOQ: 1 Set -
EVA Film Laminated Glass Oven Machine Without AutoclaveUS$ 25,000 - 60,000MOQ: 1 Set
-
Glass Laminating Machine With EVA Film Without AutoclaveUS$ 15,000 - 60,000MOQ: 1 Set
-
Full Automatic Flat Glass Laminating Line With Air Tank Autoclave SystemUS$ 280,000 - 600,000MOQ: 1 Set
-
Laminated Glass Sheet Manufacturing Equipment Flat Glass Laminating Machine With AutoclaveUS$ 280,000 - 600,000MOQ: 1 Set
Brand Name
Lever
Place of Origin
China
Certification
CE
Warranty
1 YEAR
Weight
2000KGS
Dimension(L*W*H)
according to sizes
Production Capacity
98%
Condition
New
Voltage
380V
Product Description
EVA film Glass Laminating machine

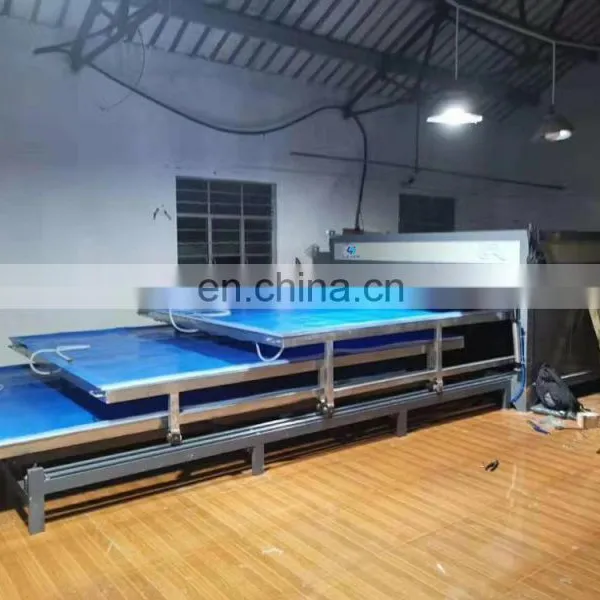

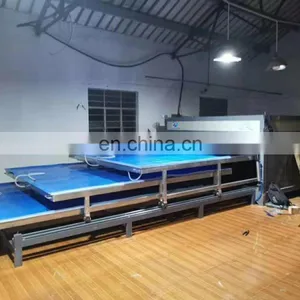

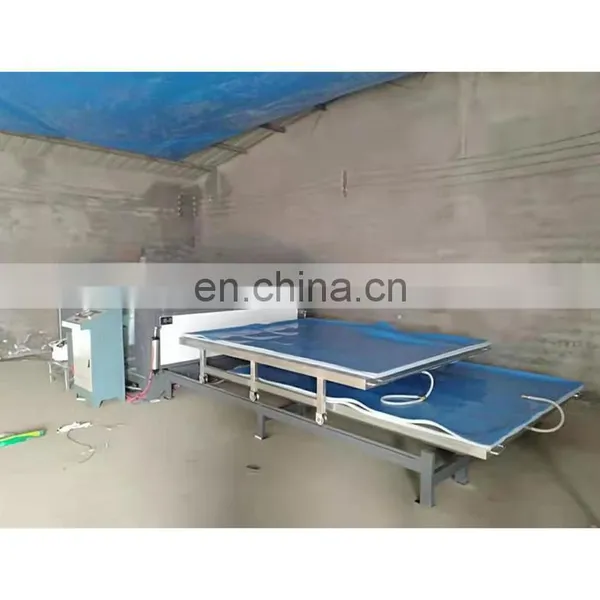

Glass laminating furnace, or called Glass Vaccum Heating and Laminating machine, is a kind of furnace developed by Lever Industry co.,ltd. By adopting vacuum bag principle, it can laminate two sheets of glass into one whole art glass through heating laminated materials and glass for perptizing under vacuum conditions.

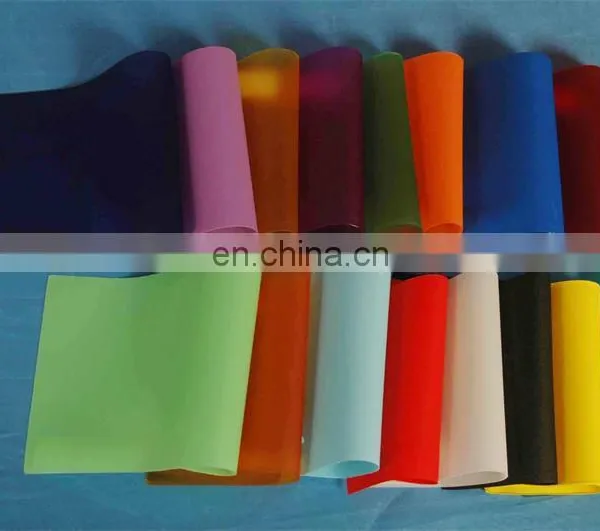

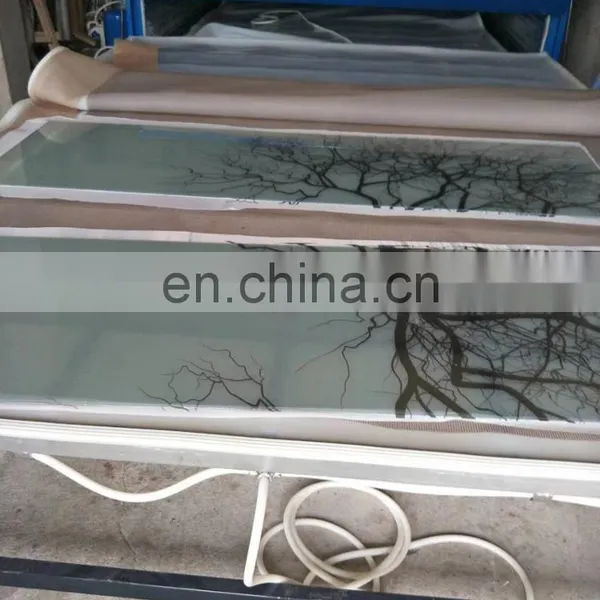

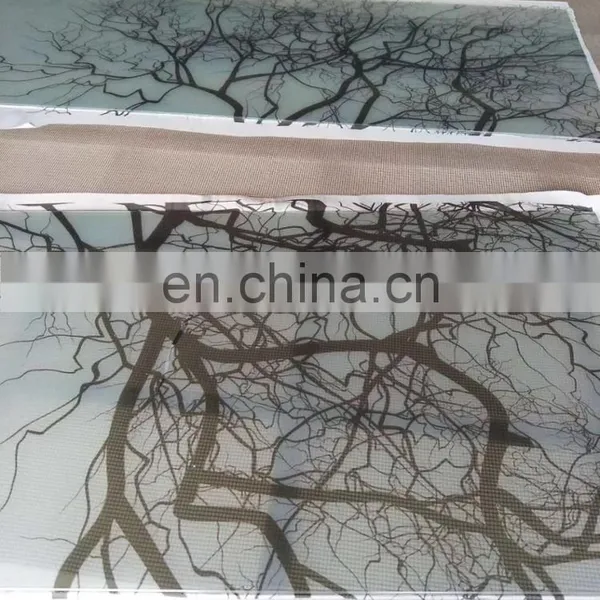

This machine can laminated normal float glass with silk, cotton, paper,paintings, PET films or EVA films, to make various of beautiful art glass and decrotive glass.
It can also be used for laminating glass with PC sheets, soft sheet, to produce laminated glass, laminated glass, curved laminated glass, marble laminated, conductive glass, wired glass, tempered laminated glass, float laminated glass, process laminated glass, LED glass, art glass , home appliance panel glass, tile glass, microcrystalline composite brick, etc.
This equipment can produce laminated glass no need autoclave.
It is able to produce various laminated glass.
You can insert the silk, paper, plastic film, metal mesh, fibre or other films into normal glass Sheets in order to produce
decorative and functional laminated glass.
Controlled by PLC, it has the features of low consume, flexisble, accurate control, easy for operation.
This machine can laminated normal float glass with silk, cotton, paper,paintings, PET films or EVA films, to make various of beautiful art glass and decrotive glass.
It can also be used for laminating glass with PC sheets, soft sheet, to produce laminated glass, laminated glass, curved laminated glass, marble laminated, conductive glass, wired glass, tempered laminated glass, float laminated glass, process laminated glass, LED glass, art glass , home appliance panel glass, tile glass, microcrystalline composite brick, etc.
This equipment can produce laminated glass no need autoclave.
It is able to produce various laminated glass.
You can insert the silk, paper, plastic film, metal mesh, fibre or other films into normal glass Sheets in order to produce
decorative and functional laminated glass.
Controlled by PLC, it has the features of low consume, flexisble, accurate control, easy for operation.
Manufacturing Technique
No. |
Name |
Parameters |
1 |
Rated voltage |
430V,3 Phase |
2 |
Oven Body dimensions |
3800*3000*1800mm for reference only |
3 |
Total dimensions |
7800*3000*1800mm |
4 |
Heating type |
Stainless steel finned heating (copper row connection, uniform heat dissipation, long life) |
5 |
Heating power |
36KW |
6 |
Total Power |
43KW |
7 |
Available Glass area size |
2200mm*3200mm |
8 |
Circulating fans |
6 sets * 1.1kw/set (multi-wing low noise and increased air volume suction type circulating fan) (Speed: 2800r/min Air volume: 1800-2400m3/h) Fan motor is copper wire motor |
9 |
Lifting Device |
1 set |
10 |
Control system |
PLC control (Automatic start and stop, no need personnel to guard, automatic failure alarm) Vacuum detection, heating system detection, circulating air detection Schneider (Zhengtai) + Siemens PLC + Kunlun display |
11 |
Vacuum bags |
3sets (high tear resistance type) |
12 |
Vacuum pump |
1set Direct type (automatically keep vacuum when power is off) |
13 |
Mesh gridding cloth |
6 sheets (high temperature resistant Teflon) |
14 |
Frame material |
Frame material border GB angle iron 10*10 National standard square tube 40*80, thickness 2mm |
15 |
Insulation material |
Double-layer high-density aluminum silicate insulation material, thickness: 10 cm |
16 |
Guide rail |
GB 25# round steel Unique design of round tube wheel (long service life, light and easy to push and pull) |
17 |
Lifting platform |
elevator type lifting platform 1 4700*1530*400mm |
Main Features
Machine Main Features:
1. Double-layer insulation, good effect, less heat loss, fast heating, high efficiency and energy saving;
2. Leaping track design, simple and labor-saving, round tube wheel + round tube track is lighter and more durable;
3. Multiple circulating fans, forced hot air convection, more uniform temperature. More accurate data.
4. PLC + touch screen, one-key start, with reservation start function, pneumatic door opens automatically;
5. Digital pressure display, pressure can be set in multiple stages, which is convenient for processing of various glasses;
6. The equipment reserves a double station, and the double station can be changed if the quantity is large.
Certifications
Packing & Delivery
Packaging |
||
Size |
2000 (L) * 3500 (W) * 1000 (D) |
|
Weight |
3.2 T |
|
Packaging Details
|
The normal package is film packing in container. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
|
