EVA Film Laminated Glass Oven Machine Without Autoclave
US$ 25,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lever
Place of Origin:
China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Glass Laminating Machine With EVA Film Without AutoclaveUS$ 15,000 - 60,000MOQ: 1 Set -
Full Automatic Flat Glass Laminating Line With Air Tank Autoclave SystemUS$ 280,000 - 600,000MOQ: 1 Set
-
Laminated Glass Sheet Manufacturing Equipment Flat Glass Laminating Machine With AutoclaveUS$ 280,000 - 600,000MOQ: 1 Set
-
High Quality With Eva Glass Laminating MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
Glass Laminating Machine Two Layers Two Doors 4 Trays Glass Sizes 1830*3050mm 415v 50hUS$ 30,000 - 80,000MOQ: 1 Set
Brand Name
Lever
Place of Origin
China
Certification
CE
Warranty
1 YEAR
Weight
5000KGS
Dimension(L*W*H)
9400*2700*1900mm
Production Capacity
98%
Condition
New
Voltage
380V
Machine Type
Glass Laminating Machine
Product Description
1. Machine Application

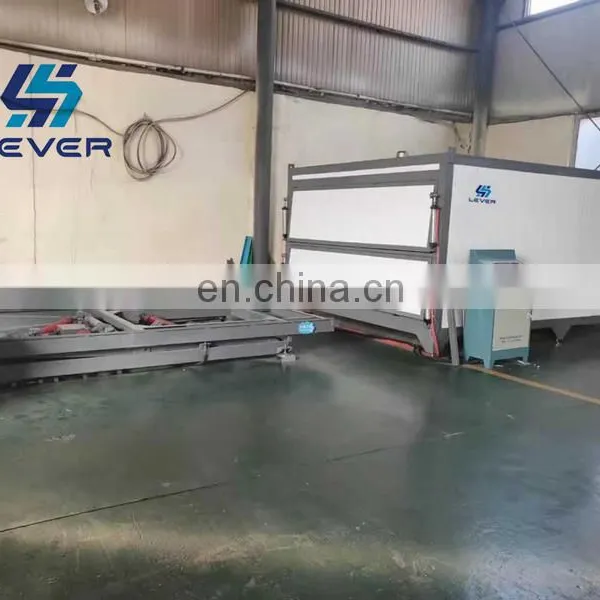

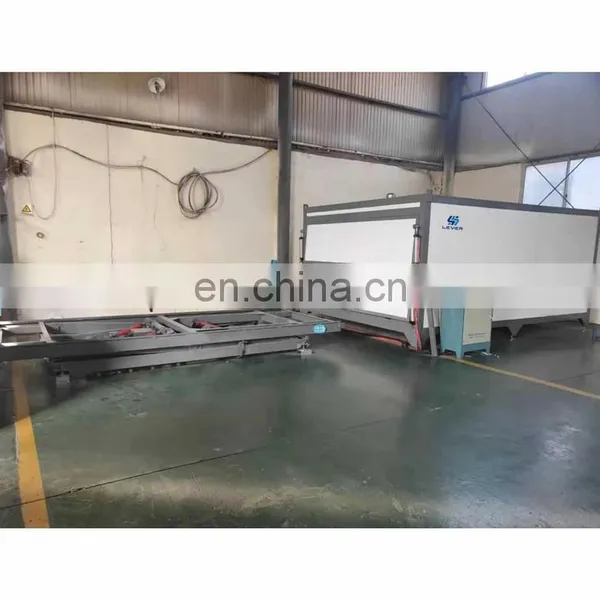

Glass laminating furnace, or called Glass Vaccum Heating and Laminating machine, is a kind of furnace developed by Lever Industry co.,ltd. By adopting vacuum bag principle, it can laminate two sheets of glass into one whole art glass through heating laminated materials and glass for perptizing under vacuum conditions.

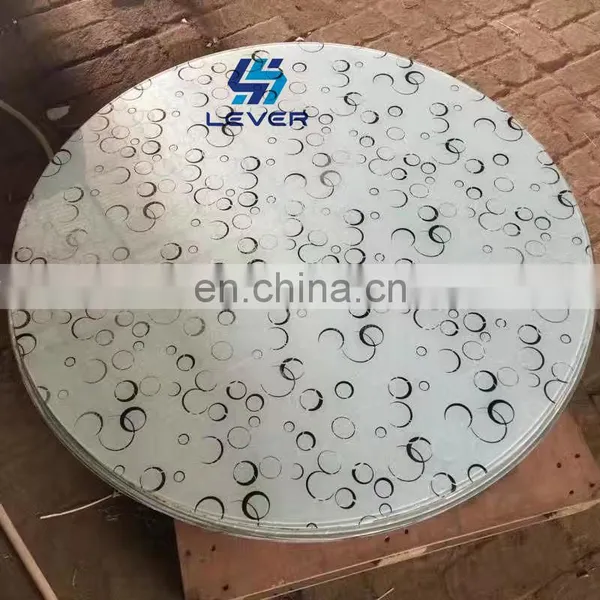

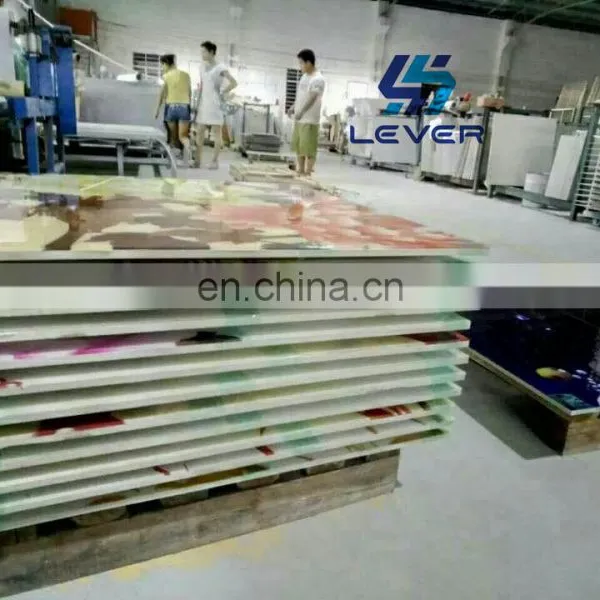

This machine can laminated normal float glass with silk, cotton, paper,paintings, PET films or EVA films, to make various of beautiful art glass and decrotive glass.
It can also be used for laminating glass with PC sheets, soft sheet, to produce laminated glass, laminated glass, curved laminated glass, marble laminated, conductive glass, wired glass, tempered laminated glass, float laminated
glass, process laminated glass, LED glass, art glass , home appliance panel glass, tile glass, microcrystalline composite brick,etc.
This equipment can produce laminated glass without autoclave.
It is able to produce various laminated glass.
You can insert the silk, paper, plastic film, metal mesh, fibre or other films into normal glass Sheets in order to produce
decorative and functional laminated glass.
Controlled by PLC, it has the features of low consume, flexisble, accurate control, easy for operation.
This machine can laminated normal float glass with silk, cotton, paper,paintings, PET films or EVA films, to make various of beautiful art glass and decrotive glass.
It can also be used for laminating glass with PC sheets, soft sheet, to produce laminated glass, laminated glass, curved laminated glass, marble laminated, conductive glass, wired glass, tempered laminated glass, float laminated
glass, process laminated glass, LED glass, art glass , home appliance panel glass, tile glass, microcrystalline composite brick,etc.
This equipment can produce laminated glass without autoclave.
It is able to produce various laminated glass.
You can insert the silk, paper, plastic film, metal mesh, fibre or other films into normal glass Sheets in order to produce
decorative and functional laminated glass.
Controlled by PLC, it has the features of low consume, flexisble, accurate control, easy for operation.
No. |
Name |
Parameters |
1 |
Rated voltage |
380V |
2 |
Oven Body dimensions |
4700*2700*1900mm for reference only |
3 |
Total dimensions |
9400*2700*1900mm (equipment size + lifting platform) |
4 |
Heating type |
Stainless steel finned heating (copper row connection, uniform heat dissipation, long life) |
5 |
Heating power |
58KW |
6 |
Total Power |
66.6KW |
7 |
Available Glass area size |
2200mm*4200mm |
8 |
Circulating fans |
6 sets * 1.1kw/set (multi-wing low noise and increased air volume suction type circulating fan) (Speed: 2800r/min Air volume: 1800-2400m3/h) Fan motor is copper wire motor |
9 |

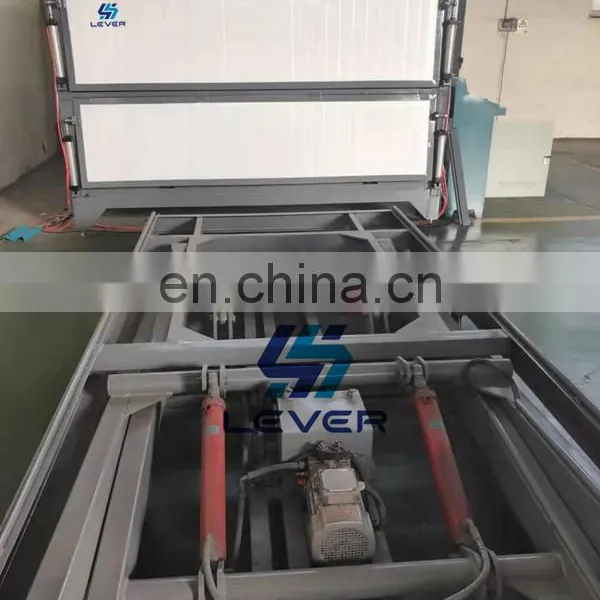

Lifting Device |
1 set |
10 |
Control system |
PLC control (Automatic start and stop, no need personnel to guard, automatic failure alarm) Vacuum detection, heating system detection, circulating air detection Schneider (Zhengtai) + Siemens PLC + Kunlun display |
Certifications
Packing & Delivery
Packaging |
||
Size |
4900 (L) *135 (W) * 1900mm (D) |
|
Weight |
1800KGS |
|

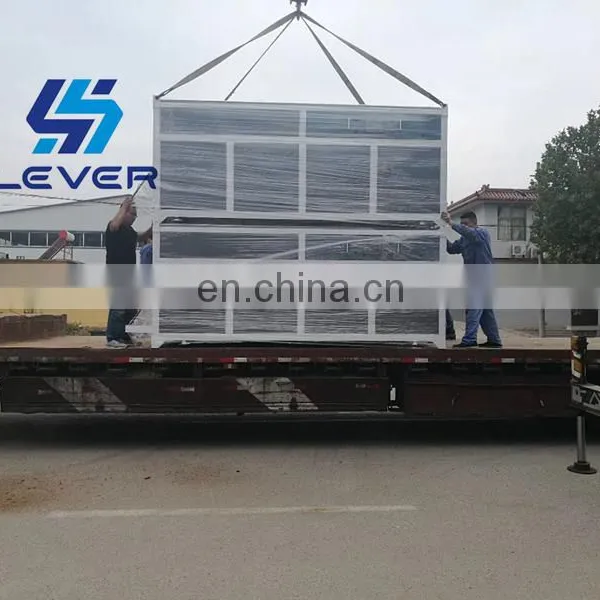

Packaging Details
|
The normal package is film packing in container. If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request. |
|
