CQB Stainless steel magnetic drive pump
- 1000 Set / Sets per Month
- Shanghai
- T/T
- 10 days
- GDL vertical multistage booster centrifugal pump
- WQR submersible sewage pump for high temperature wastewater
- CHL,QDLF stainless steel multistage centrifugal pump vertical or horizontal
- QJ Submersible deep well pump
- LXLZ two phase flow paper pulp pump
- CYZ Self priming centrifugal oil transfer pump explosion proof
Product Details
Brand Name: | kenshine-pump | Place of Origin: | China | Model Number: | 50CQB-40-160 |
Application: | Other, Chemical liquid transfer | Fuel: | Other, electric motor | Power: | Electric |
Usage: | Other, chemical fluid transfer | Theory: | Centrifugal Pump | Standard or Nonstandard: | Standard |
Structure: | Single-stage Pump | Pressure: | Low Pressure |
Product Description

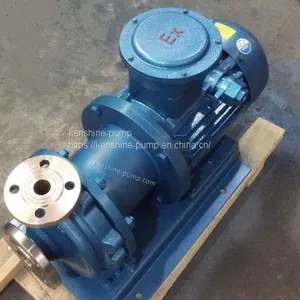

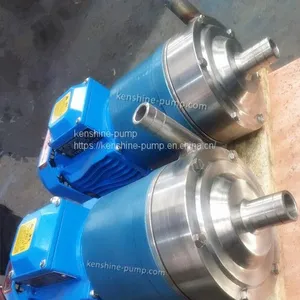

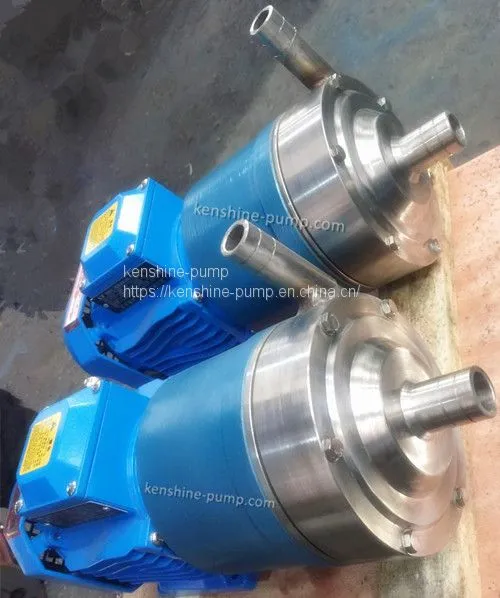

CQB Stainless steel magnetic drive pump
The wet parts of this pump are made of full stainless steel material to perform outstanding corrosion resistance to organicacid,organic compound,alkali,neutral solution and a great many of gases. double helix carbon graphite bearing and hard alloy bearing are provided with good abrasion-resisting property to ensure the service life of product.It is an optimal pump for handling corrosive mediums without leakage.
Material of wet parts:stainless steel
Connecting types: flange and pipe
Flow:1.9-120m3/h
Head:20-80m
Power:0.75-75KW
Kinematic viscosity of medium: ≤30*10-6m3/s
Medium temperature:-20 to 100 degree celsius
Parameter:
Model | Flow(Q) | Head(H) | Speed (n) | Effic. | Motor type | Power |
m3/h | m | rpm | % | kw | ||
CQB32-20-125 | 3.2 | 20 | 2900 | 35 | YB802-2 | 1.1 |
CQB32-20-160 | 3.2 | 32 | 2900 | 35 | YB90S-2 | 1.5 |
CQB40-25-105 | 6.3 | 12.5 | 2900 | 45 | YB802-2 | 1.1 |
CQB40-25-125 | 6.3 | 20 | 2900 | 42 | YB90L-2 | 2.2 |
CQB40-25-160 | 6.3 | 32 | 2900 | 35 | YB100L-2 | 3 |
CQB40-25-200 | 6.3 | 50 | 2900 | 28 | YB132S1-2 | 5.5 |
CQB50-40-85 | 12.5 | 8 | 2900 | 56 | YB802-2 | 1.1 |
CQB50-32-105 | 12.5 | 12.5 | 2900 | 54 | YB90L-2 | 2.2 |
CQB50-32-125 | 12.5 | 20 | 2900 | 50 | YB100L-2 | 3 |
CQB50-32-160 | 12.5 | 32 | 2900 | 46 | YB112M-2 | 4 |
CQB50-32-200 | 12.5 | 50 | 2900 | 39 | YB132S2-2 | 7.5 |
CQB50-32-250 | 12.5 | 80 | 2900 | 30 | YB160L-2 | 18.5 |
CQB65-50-125 | 25 | 20 | 2900 | 58 | YB132S1-2 | 5.5 |
CQB65-50-160 | 25 | 32 | 2900 | 56 | YB132S2-2 | 7.5 |
CQB65-40-200 | 25 | 50 | 2900 | 49 | YB160M-2 | 15 |
CQB65-40-250 | 25 | 80 | 2900 | 46 | YB180M-2 | 22 |
CQB80-65-125 | 50 | 20 | 2900 | 66 | YB132S2-2 | 7.5 |
CQB80-65-160 | 50 | 32 | 2900 | 64 | YB160M-2 | 15 |
CQB80-50-200 | 50 | 50 | 2900 | 60 | YB160L-2 | 18.5 |
CQB80-50-250 | 50 | 80 | 2900 | 55 | YB200L1-2 | 30 |
CQB100-80-125 | 100 | 20 | 2900 | 72 | YB160M-2 | 15 |
CQB100-80-160 | 100 | 32 | 2900 | 70 | YB160M-2 | 22 |
CQB100-65-200 | 100 | 50 | 2900 | 68 | YB200L1-2 | 30 |
CQB100-65-250 | 100 | 80 | 2900 | 64 | YB225M-2 | 45 |
