Home > Products > Drilling Rig > QZ-1A type two-phase electric portable multi-purpose drilling machine

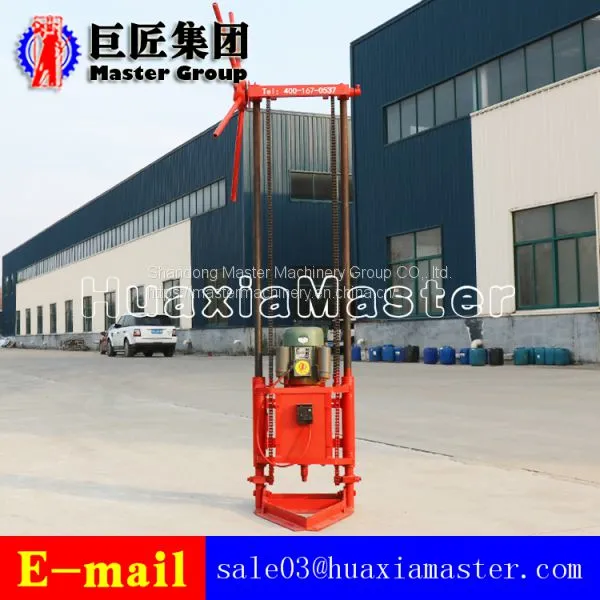

QZ-1A type two-phase electric portable multi-purpose drilling machine
- 100 Set / Sets per Month
- Qingdao
- T/T L/C
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | Master Machinery | Place of Origin: | China | Model Number: | QZ-1A |
| Type: | Core Drilling Rig | Certification: | iso-9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | six months | Weight: | 130kg | Dimension(L*W*H): | 115cm*64cm*59 cm |
| Power Type: | Electric | Voltage: | 220v | Usage: | Ore |
| Condition: | New | Power(W): | Electricity |
Product Description
QZ-1A type electric two-phase sampling drilling rig is a kind of portable multi-purpose micro engineering drill produced by Shandong Master Machinery Group Co.,Ltd, it is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geophysical prospecting hole guiding, advanced drilling and grouting holes, embedded hole guiding, broken hole, hole, check out the small home with wells.
2.The technical parameter of QZ-1A two phase electric sampling drill
QZ-1A two phase electric sampling drill | |
Borehole diameter (mm) | 32-46 |
Borehole depth（m） | layer 20-25m/rock1 5-20m |
Drill pipe diameter (mm) | 25 |
Speed（r/min） | 175 |
Torque（n.m） | 80 |
Two phase electromotor (kw） | 1.5 |
Shape size（l*w*h） | 600*450*1900 |
Drill weight（kg） | 80 |
3.The packing list of QZ-1A two phase electric sampling drill
Name | Model | Unit | Quantity |
Two phase electric sampling drill | QZ-1A | platform | 1 |

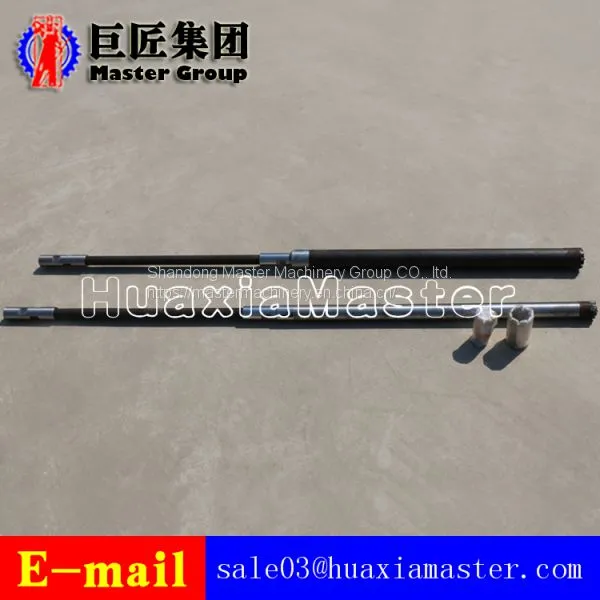

Drill pipe | φ25*1500 | root | 6 |
Drill pipe | φ25*800 | root | 8 |
Lock the hand | φ32 | pcs | 14 |
Core tube | φ32*800 | root | 1 |
Alloy bit | φ32 | pcs | 1 |
Head | φ45/32 | pcs | 1 |
Core tube | φ45*800 | root | 1 |
Alloy bit | φ46 | pcs | 1 |
Scavenging bit | φ60 | pcs | 1 |
Plate fork | hold | 1 | |
Water seal type | Y 30*45*8 | pcs | 4 |
Driving wheel | platform | 1 |
