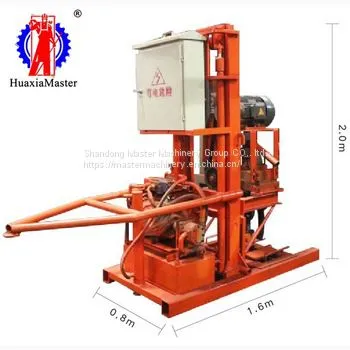

SJDY-3B ground source heat pump water well drilling rig
Introduction of SJDY-3B ground source heat pump drilling rig
SJDY-3B ground source heat pump drilling rig is a hydraulic drilling rig that has been successfully improved and widely promoted by Shandong Master Machinery Group Co;Ltd. It is divided into forklift door frame and channel steel door frame. This drilling rig is suitable for drilling in mud, quicksand and a small amount of rock and soil. It has been widely used for drilling ground source heat pump air-conditioning wells, engineering precipitation wells, drought-resistant wells, industrial wells and other occasions.
1. Features of SJDY-3B ground source heat pump drilling rig.
. Forklift gantry will be more durable and difficult to deform.
. The mast has a large lifting force, is safe and reliable, and has a large load.
. The gearbox is designed to rotate with a mandrel, with a unique and practical structure, higher torque and fast drilling speed.
. The launching faucet uses a power transmission universal joint, which greatly cushions the shock of the drill pipe to the host.
. The rig automatically moves up and down the pole, which greatly reduces the labor intensity of the workers.
. The wire teeth at both ends of the drill pipe are all heat-treated and should not be worn.
type |
SJDY-3B |
|||
Applicable voltage（v） |
380 |
380 |
380 |
380 |
Main motor power（kw） |
5.5 |
7.5 |
11 |
15 |
Hydraulic motor power（kw） |
5.5 |
5.5 |
7.5 |
7.5 |
Working torque（kn） |
20 |
25 |
30 |
35 |
Drilling diameter（mm） |
100~650 |
100~700 |
100~750 |
100~800 |
Drilling depth（m） |
130~1 |
150~1 |
170~1 |
200~1 |
Loading size（mm） |
1600*800*2000 |
|||
Construction size（mm） |
1600*1200*4000 |
|||
Total weight（kg） |
700 |
850 |
1000 |
1300 |
2. Technical parameters of SJDY-3B ground source heat pump drilling rig.
