1.The brief introduction of QTZ-3 portable driller
QTZ-3 portable earth drilling rig is further improved on the basis of the QTZ-2 portable drilling rig, which is more humanized and more suitable for researchers in scientific research institutions or universities. The power is further strengthened, which can meet the requirement of soil sampling for 15~20 meters depth.It is Shandong Master Machinery Group Co.,Ltd latest drilling rig.
2.The range of application of QTZ-3 portable soil drilling rig
a.Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
b.Groundwater survey; coastal geological survey; wetland environment investigation.
c.Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3.The technical parameter of QTZ-3 portable soil drilling rig
QTZ-3 portable earth drilling rig | ||
|
Power |
Power |
3.8hp |
Fire mode |
Backflush pull rope |
|
Oil consumption |
0.6 l/h |
|
Impact times |
2460 r/min |
|
Impact energy |
35j-70j |
|
Core depth |
15m-20m |
|
Host weight |
26kg |
|

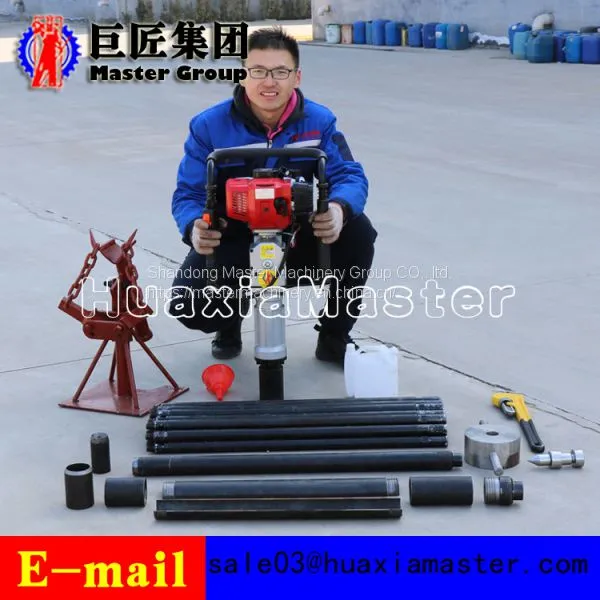

4.The packing list of QTZ-3 portable drilling rig
Name |
Model |
Unit |
Quantity |
Portable driller |
QTZ-3 |
platform |
1 |
Cylinder impact Hand |
φ52*107 |
pcs |
1 |
Cones |
φ32*80 |
pcs |
19 |
Drill pipe |
φ32*700 |
root |
19 |
Taper wire |
φ32*100 |
pcs |
19 |
Head |
φ32*50 |
pcs |
1 |
Collar |
φ50*150 |
pcs |
1 |
Open tube |
φ50*600 |
root |
1 |
Double-edged pipe boots |
φ50*100 |
pcs |
2 |
Head |
φ32*70 |
pcs |
1 |
Collar |
φ70*150 |
pcs |
1 |
Open tube |
φ70*600 |
root |
1 |
Inner edge pipe boots |
φ70*100 |
pcs |
1 |
Outer edge pipe boots |
φ70*100 |
pcs |
1 |
Portable sounding hammer |
10kg |
pcs |
1 |
Sounding the head |
φ32 |
pcs |
1 |
Double sided hand |
φ32 |
pcs |
1 |
Touch probe |
φ32 |
pcs |
1 |
Puller |
Three force arm |
set |
1 |
The ratio of oil |
25:1 |
pcs |
1 |
Oil injection funnel |
pcs |
1 |
|
Forceps |
80mm |
hold |
1 |
Wrench |
24/27 |
1 |
|
Small wrench |
8/10 |
1 |
|
Internal six party |
#4 |
1 |
|
Internal six party |
#5 |
1 |
|
Internal six party |
#6 |
1 |
|
Six prismatic wrench |
1 |
||
Spark plug wrench |
1 |
||
Bolt driver |
1 |
||
Spare spark plug |
1 |
