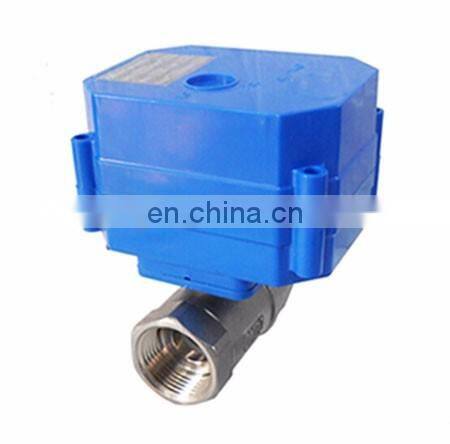

6NM bsp/npt 2,3,5 wires control Mini ball water valve electric actuator

6NM bsp/npt 2,3,5 wires control Mini ball water valve electric actuator

Features:
♦ can be used in Kaishuifang, and is an excellent product to replace the solenoid valve
1, POM gears and metal gears complement each other structure, POM gear used in high-speed level reduced gear noise, while low-grade metal gears, to ensure the reliability of the gear.
2, long life, switching frequency of 100,000 times.
3, electrical and mechanical limit stop integrated design, positioning accuracy, high consistency, eliminate the actuator may even turn.
4, the actuator and valve assembly can be multi-angle, convenient for space allocation requirements.
5, the ball floating seal structure, no drip, suitable for heavy dirt and long-term non-action situations.

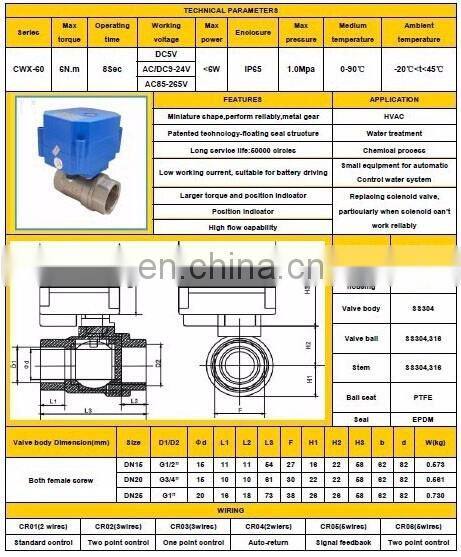

Specification

 Dimensions

   cables

Situable for :
1. IC card meters,heat energy meters,air-warm valve.
2. HVAC and fire works.
3. Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control
4. Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5. Replacing solenoid valve, particularly when solenoid cannot work reliably,the circumstance pneumatic valve can not work.
6. Multiple voltage and control mode, applicable to a variety of occasions.
