Help CenterCWX Marine Centrifugal Vortex Pump
Related Products

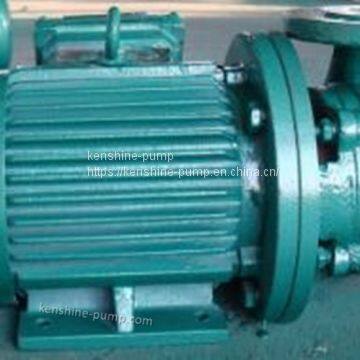

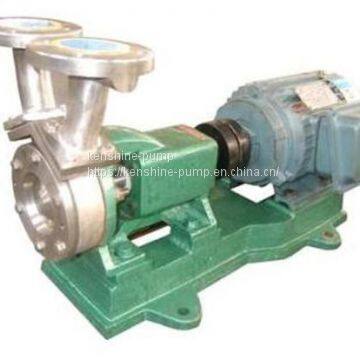

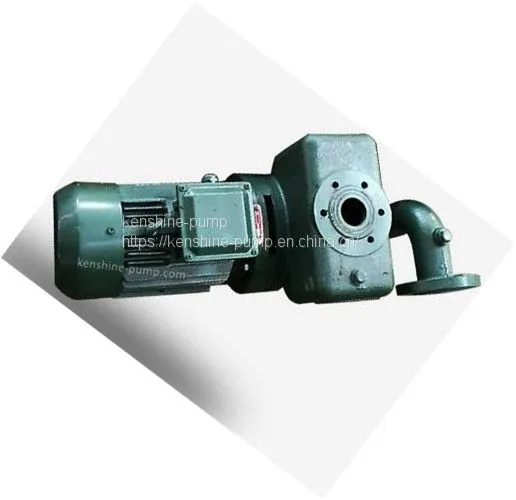

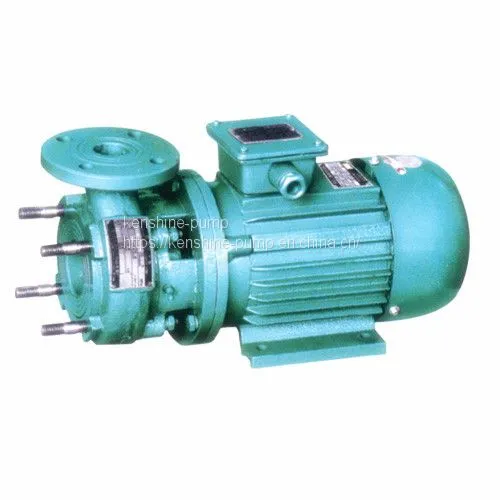

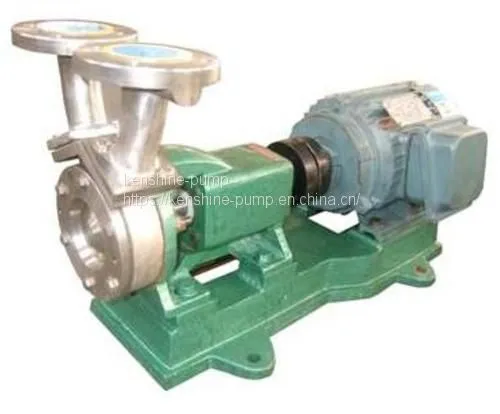

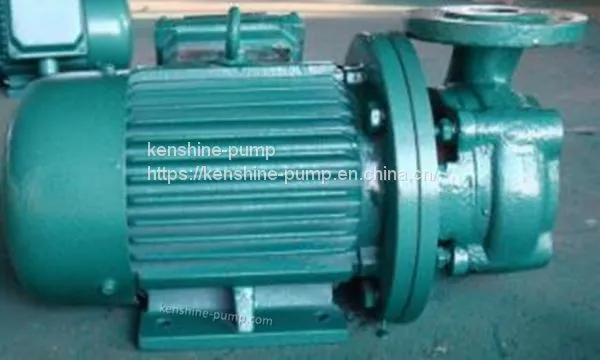

CWX electric centrifugal vortex pump
CWX centrifugal vortex self-priming pump is often made of cast iron pump body and bronze impeller and stainless-steel shaft. The pump is widely used to supply fresh water or seawater, washing water, sanitary water, drinking water etc. in Marine device. The connection way between pump and motor can be closed coupling or shaft coupling.
Features:
Vortex pump has small volume and light weight. It is convenient for marine device
The pump has the performance of self-priming performance. Suction height:4m
Vortex pump has the sharp drop head. It is not easy to affect the system pressure
Some vortex pump can be used for gas-liquid transport. It is suitable to convey the liquid which is volatile.
Vortex pump has the simple structure and convenient installation.
Model explanation
1.5CWX-2
1.5: Pump inlet (1.5inch)
CWX: marine centrifugal vortex pump
2: Specific devided by 10
Performance range
Flow rate: 3-10m3/h
Head:35-40m
Speed:2900rpm
Motor power:2.2KW-4KW
| model | Q | H | Speed | power | efficiency | NPSH | Weight | remark | |
| (m3/h) | (l/s) | (m) | (r/min) | (kw) | % | (m) | (kg) | ||
| 1.5CWX-2 | 3 | 0.83 | 40 | 2900 | 2.2 | 17.5 | 4 | 45 | closed couple |
| 1.5CWX-2A | Max.(8m) | 63 | shaft couple | ||||||
| 1.5CWX-3 | 6.5 | 1.8 | 35 | 2900 | 3 | 4 | 45 | closed couple | |
| 1.5CWX-3A | Max(8m) | 60 | shaft couple | ||||||
| 1.5CWX-4 | 10 | 2.8 | 35 | 2900 | 4 | 40 | 4 | 65 | closed couple |
| 1.5CWX-4A | Max(8m) | 84 | shaft couple | ||||||
