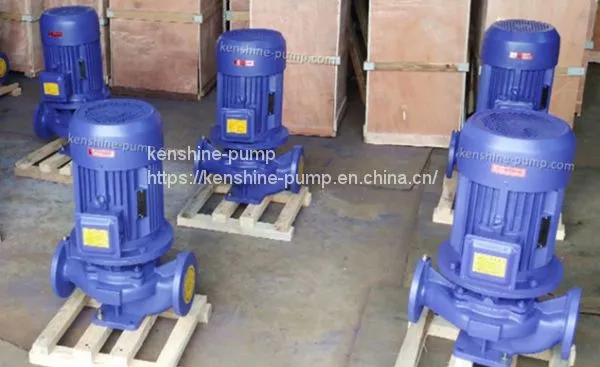

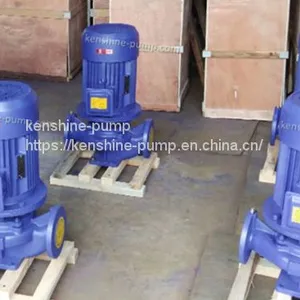

IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump

IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump thumbnail-1
IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump thumbnail-2
IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump thumbnail-3
IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump thumbnail-4
IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump thumbnail-5
IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump photo-1
IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump photo-2
IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump photo-3
IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump photo-4
IRG Vertical Pipeline Centrifugal Hot Water Circulating Pump photo-5
US$ 350 - 6000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
IRG50-125
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number IRG50-125
Application Other, hot water circulating pump
Fuel Other, electric motor
Power Electric
Usage Water
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure



IRG vertical pipeline centrifugal hot water circulation pump

IRG Vertical pipeline centrifugal hot water circulating pump is manufactured on the base of ISG Vertical pipeline pump. The pump meets with ISO2858 and JB/T6878.2-93 etc. standard.



Pumped liquids

IRG type vertical hot water (high temperature) circulating pump is widely used in energy, chemical industry, textile, papermaking, hotels and other boilers and urban heating system circulating pump. Liquid temperature T℃



Features

High efficiency, energy saving, reliable performance

No leakage

Low noise

Small volume

Convenient usage and maintenance

Pump material: cast iron, anti-high temperature mechanical seal, standard motor or explosion proof motor

MODEL
 Q H Efficiency Speed power NPSHr
m3/h l/s m % r/min KW m
25-125 4 1.11 20 36 2900 0.75 2.3
25-160 4 1.11 32 32 2900 1.5 2.3
25-160A 3.7 1.03 28 31 2900 1.1 2.3
32-100(I) 6.3 1.75 12.5 54 2900 0.75 2.3
32-125 5 1.39 20 44 2900 0.75 2.3
32-125A 4.5 1.25 16 43 2900 0.55 2.3
32-160 6.5 5 32 44 2900 1.5 2.3
32-160A 4 1.1 25 34 2900 1.1 2
32-160(I) 6.3 1.75 32 40 2900 2.2 2
32-200 4.5 12.5 50 32 2900 3 2
32-200(I) 6.3 1.75 50 33 2900 4 2
32-200A 4 1.11 44 40 2900 2.2 2
40-125 6.3 1.75 20 46 2900 1.1 2.3
40-125A 5.6 1.56 16 45 2900 0.75 2.3
40-160 6.3 1.75 32 40 2900 2.2 2.3
40-160A 5.9 1.64 28 39 2900 1.5 2.3
40-160B 5.5 1.53 24 38 2900 1.1 2.3
40-200 6.3 1.75 50 33 2900 4 2.3
40-200A 5.9 1.64 44 31 2900 3 2.3
40-200B 5.3 1.47 36 29 2900 2.2 2.3
40-250 6.3 1.75 80 28 2900 7.5 2.3
40-250A 5.9 1.64 70 28 2900 5.5 2.3
40-250B 5.5 1.53 60 27 2900 4 2.3
40-100(I) 12.5 3.47 12.5 62 2900 1.1 2.3
40-100(I)A 11 3.05 10 60 2900 0.75 2.3
40-125(I) 12.5 3.47 20 58 2900 1.5 2.3
40-125(I)A 11 3.05 16 57 2900 1.1 2.3
40-160(I) 12.5 3.47 32 52 2900 3 2.3
40-160(I)A 11.7 3.25 28 51 2900 2.2 2.3
40-160(I)B 10.4 2.89 22 50 2900 1.5 2.3
40-200(I) 12.5 3.47 50 46 2900 5.5 2.3
40-200(I)A 11.7 3.25 44 45 2900 4 2.3
40-200(I)B 10.6 2.94 36 44 2900 3 2.3
40-250(I) 12.5 3.47 80 38 2900 11 2.3
40-250(I)A 11.6 3.22 70 38 2900 7.5 2.3
40-250(I)B 10.8 3 60 37 2900 7.5 2.3
40-250(I)C 10 2.78 52 36 2900 5.5 2.3
50-100 12.5 3.47 12.5 62 2900 1.1 2.3
50-100A 11 3.05 10 60 2900 0.75 2.3
50-125 12.5 3.47 20 58 2900 1.5 2.3
