China Machine Made Super Enamelled Copper Winding Wire Gauge Chart
o. |
Product Name |
Thermal Index |
QZ-1/130 |
Class 130 normal insulation thickness of polyester enameled copper round wire |
130 |
QZ-2/130 |
Class 130 heavy insulation thickness film polyester enameled copper round wire |
130 |
QZ-1/155 |
Class 155 thin insulation thickness of modified polyester enameled copper round wire |
155 |
QZ-2/155 |
Class 155 heavy insulation thickness of modified polyester enameled copper round wire |
155 |
QZY-1/180 |
Class 180 thin insulation thickness of polyester-imide copper round wire |
180 |
QZY-2/180 |
Class 180 heavy insulation thickness of polyester-imide copper round wire |
180 |
Q(ZY/XY)-1/200 |
Class 200 thin insulation thickness of Polyester-imine/polyamide-imide compound enameled copper round wire |
200 |
Q(ZY/XY)-2/200 |
Class 200 heavy insulation thickness of Polyester-imine/polyamide-imide compound enameled copper round wire |
200
|
Performance Features
1) high conductivity, high heat resistance
2) better thermal capacity, good winding performance ,
3) scratch resistance, adhesion, electrical properties and solvent resistance properties.
4) high cut through performance and softening breakdown.

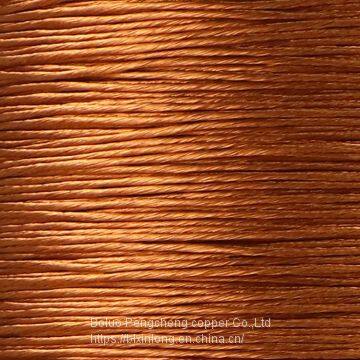

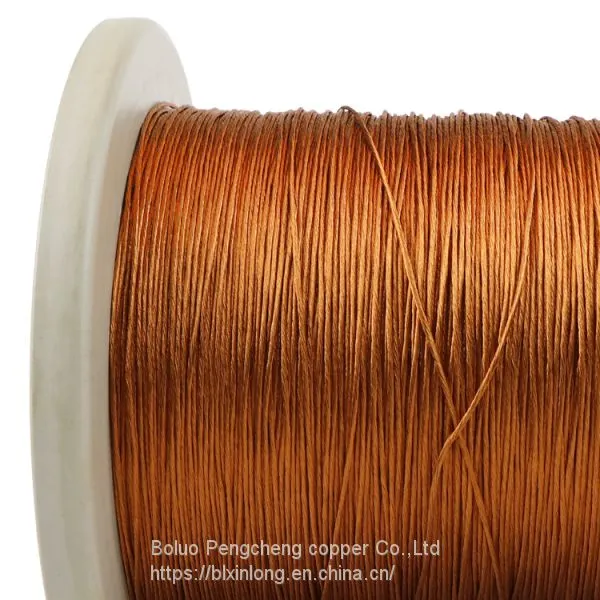

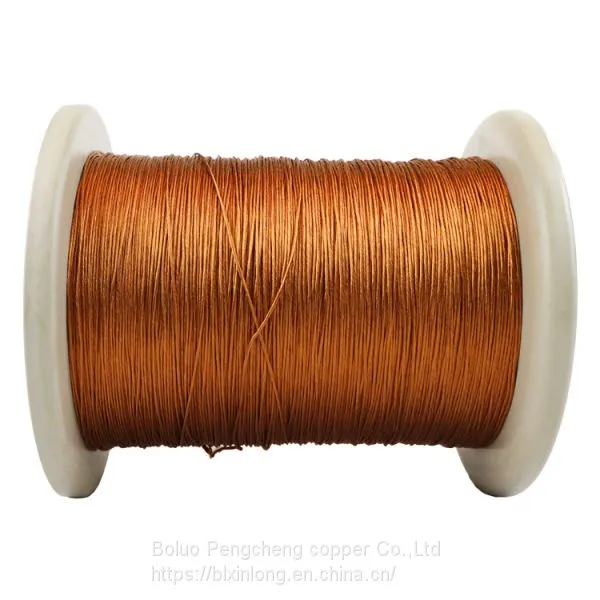

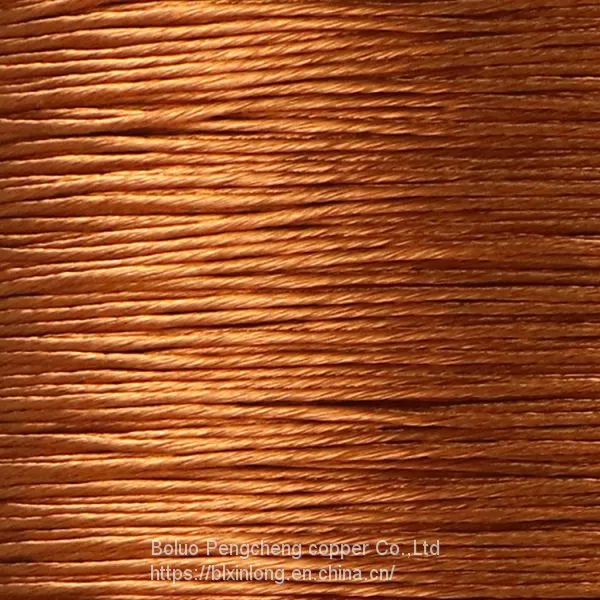

Product pictures show
Main Applications
Various motors and transformers, generator, compressor;
Electrical winding machine include household appliance such as air-condition, washing-machine;
Electric appliance, Audio device, watch, microphone, receiver, etc.
Electric induction coil/miniature electric machine working under high temperature/radiated/over-
loaded environment.
QC Inspection Report
Produce Process
high quality products for reference.
Packaging Details
Reels-- load the wire--bubble paper--cartons--pallet-- hardboard-- ironsheet,
(We also can pack the goods according to the requirements of the clients).
| Reel/spool | PL-2 | PT-2 | PT-4 | PT-10 | PT-15 | PT-25 | PT-60 |
| Carton/buket | 9 reels in 1 carton | 6 reels in 1 carton | 4 reels in 1 carton | 2 reels in 1 carton | 1 reels in 1 carton | 1 reels in 1 carton | 1 reels in 1 buket |
| Pallet | According to the carton size, customer may ask not use pallet | ||||||
Shipping: Shipping by sea, LCL or FCL.
Delivery Detail: 7-25 days after receiced the advance ,mainly according to the size of orders.
Boluo County Xin Long Electrician Data Co., Ltd. since 2004
Area and output: Own 10800 square meter factory area, annual output over 5000 tons.
Cooperating clients: Till now our products are sold to Malaysia, India, Indonesia, Cuba, Russia, Japan, USA, HK, Pakistan, Germany and so on. Have earn good reputation in the industry.
Experience: 10-year export experience and specialized in the field of enameled wire production
We are a 8-years golden memeber of Alibaba with Trade Assurance with $134000USD.
Quality monitoring: 100% check in the whole production process
Executive Standard:
GB6109 ( Enameled round copper wire)
GB3955 ( Enameled round aluminum wire )
SJ/T 11223-2000 ( Enameled round copper clad aluminum wire)
GB 4074 (Test methods of enameled copper winding wire)
NEMA MW 1000
IEC 60317
JIS 3202
Or standard requested by clients
Certificate
ISO9001:2008 Quality Management Systerm
ROHS Certification
SGS Certification
Pass UL (enameled round copper wire and heat resistant electric wire)
[Q]: How do we place an order?
A : Please kindly send us an email specifying item, quantity, size or other
specification you need.
[Q]: What's our MOQ?
A : 500kg
[Q]: Can we supply the sample?
A : Yes, we can supply it for free.
[Q]: What payment terms we prefer?
A : TT,LC,DP,Western Union
More payment terms, we can discuss.
[Q]: What's its HS code?
A : Enameled copper wire--85441100
Enameled aluminum wire--85441900
Enameled copper clad aluminum wire--85441900
[Q]: How many quantity in 20 feet container?
A : Copper--20-22 tons
Aluminum--14-16 tons
Copper clad aluminum--16-18 tons
[Q]: How many types of enameled copper wire? What's their difference?
A : QA(polyurethane)
QZ(polyester)
QZY( polyimide)
SB(self-bounding)
NY(nylon) (Their differences show at several aspect, please contact us directly)
[Q]: What' other products we have?
A : Self Bonding Wire
Enameled Litz Wire
Silk Covered Wire
why choose us
1) Factory Direct and on-time shipment.
2) Free sample are available.
3) Can offer certification of Original, such as FORM E, FORM B, CO by free.
4) Customized sizes, logos and packing are accepted.
5) Goods are sold with rerun or refund guarantee due to quality issue.
6) 24 hours standby, customers can contact us anytime.
7) Near to Dongguan, Guangzhou, Shenzhen, can arrange the car to pick up
customers come to visit.
If you're interested in our products
please send us a message for quotation,thank you~
↓ ↓ ↓
