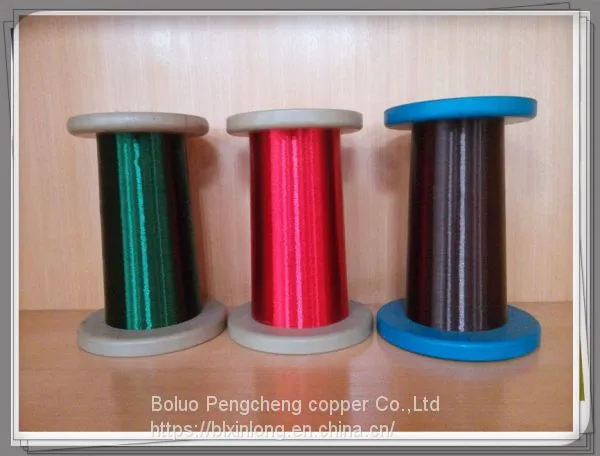

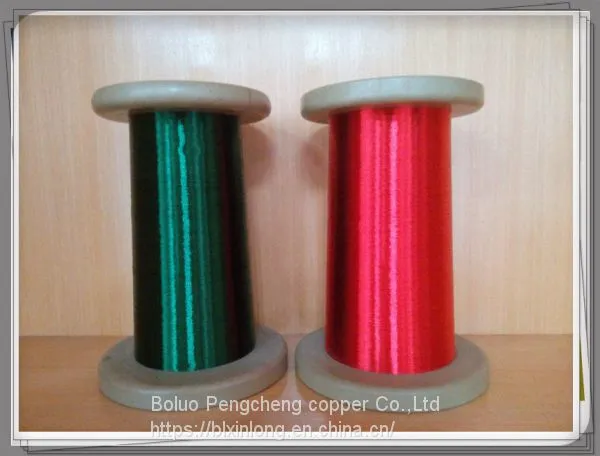

Help Center155 180 200 Class Self-solderable Polyurethane Enamelled Copper Wire
Related Products
-
155 180 200 Class Self-solderable Polyurethane Enamelled Copper WireUS$ 9 - 10.5MOQ: 500 Tons -
High Quality Copper Magnet Wire Supplier in Guangdong for Heat SinkUS$ 9 - 11MOQ: 500 Tons
-
Guangzhou Enameled Copper Wire SuppliersUS$ 6.7 - 9.8MOQ: 500 Kilograms
-
Copper Winding Wire for Welding MachineUS$ 7.5 - 8.9MOQ: 500 Kilograms
-
Hot Sale 42 AWG and 43 AWG Enameled Copper Wire Motor Winding WireUS$ 9.65 - 10.2MOQ: 500 Kilograms

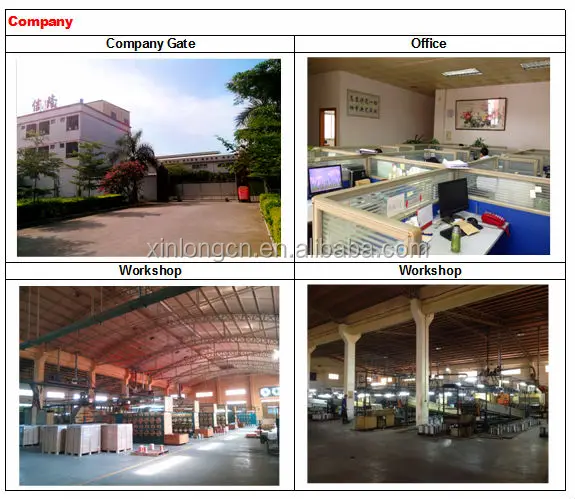

ABOUT FACTORY
Experience: We are factory with 10 years export experience and specialized in the field of wires cargo since 2000.
own 10800 square meter factory area,25 enamelling machines,100 drawing machines,annual output 5000tons.
Our Cooperating Customers:Till now our cargo sells to Malaysia,India,Indonesia,Cuba,Russia,Japan,USA,HK,Pakistan ,Germany and so on.Have earn good reputation on this line.More than 20 countries and own over 100 regular customers
Timely Delivery and Service.
ABOUT PRODUCT
-
Wide Product Range:
Enameled Copper Wires(ECU),Enameled Aluminum Wires(EAL),Enameled Copper Clad Aluminum Wires(ECCA)
Sizes: 0.03~2.80mm(SWG49~SWG10)
1.Solderable Polyurethane Enameled Wire, Class 130/155/180(UEW/130,UEW/155,UEW/180)
2. Polyester Enameled Wire, Class 130/155 (PEW/130/155)
3. Modified Polyester Enameled Wire, Class 155 (MPEW/155)
4. Ployesterimide Enameled Wire, Class 180 (EIW/180)
5.Polyesterimide Overcoated With Polyamideimide Enameled Wire, Class 200 (EI/AIW/200) Do as per your request
1. Heat resistance grades
130,155,180,200,220
2. Performance features
Good performance of high temperature-resistance, cold-resistance, radiation-resistance, softening-resistance, freezing-resistance.As the short point is the cost is high.
3.Model
Model |
Product Name |
Thermal Index |
QZ-1/130 |
Class 130 normal insulation thickness of polyester enameled copper round wire |
130 |
QZ-2/130 |
Class 130 heavy insulation thickness film polyester enameled copper round wire |
130 |
QZ-1/155 |
Class 155 thin insulation thickness of modified polyester enameled copper round wire |
155 |
QZ-2/155 |
Class 155 heavy insulation thickness of modified polyester enameled copper round wire |
155 |
QZY-1/180 |
Class 180 thin insulation thickness of polyester -imide copper round wire |
180 |
QZY-2/180 |
Class 180 heavy insulation thickness of polyester -imide copper round wire |
180 |
Q(ZY/XY)-1/200 |
Class 200 thin insulation thickness of Polyester-imine/polyamide-imide compound enameled copper round wire |
200 |
Q(ZY/XY)-2/200 |
Class 200 heavy insulation thickness of Polyester-imine/polyamide-imide compound enameled copper round wire |
200 |
4.Standards:
GB6109( copper enameled winding wire)
GB4074(Test methods of copper enameled winding wire)
NEMA MW1000-1997
IEC60317
JIS-3202

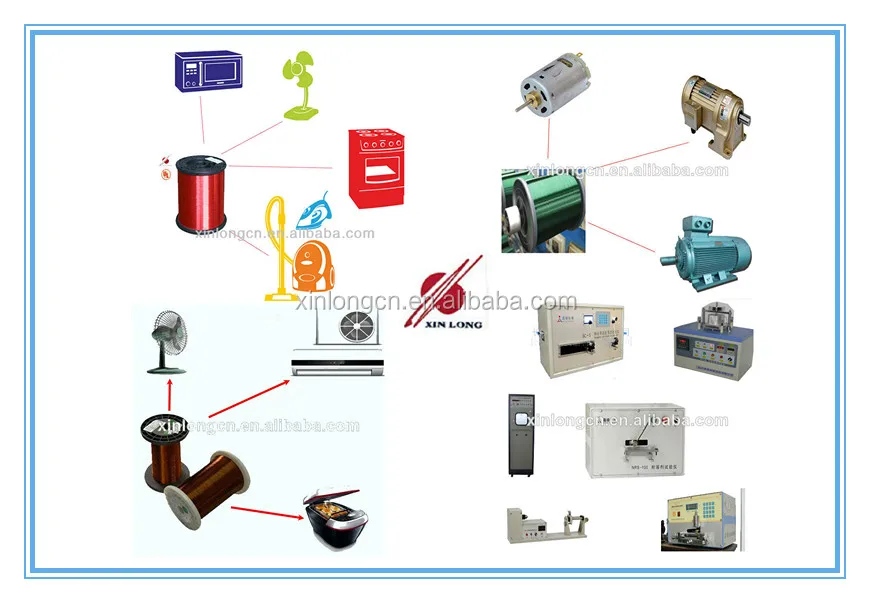

5. Main application
Used as the winding wire of large and medium sized electric machine or electric appliance working under high temperature, severe cold, radiated, over-loaded environment.
| Reel/spool | PL-2 | PT-2 | PT-4 | PT-10 | PT-15 | PT-25 | PT-60 |
| Carton | 9 rools in one carton | 6 rolls in one carton | 4 rolls in one carton | 2 rolls in one carton | 1 roll or 2 rolls in one carton | 1 roll or 2 rolls in one carton | 1 roll in one carton |
| Pallet | According to the carton size,and up to customer's requst | ||||||
IEC Standard Asreference or others.

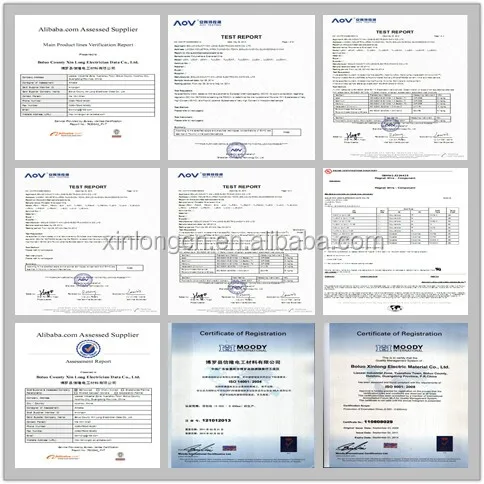

ISO9001: 2008 Quality Management Systerm
Enamelled Copper wire and Enameled Copper Clad Alumimum wire (ECCA) has the ROHT Authentication , passed the UL.
1. What's our MOQ?
500kg
2. Can we supply the sample?
Yes, we can supply it for free.
3. What payment terms we prefer?
(1) TT
(2) LC
(3) DP
(4) Western Union
More payment terms, we can discuss.
4. What's its HS code?
Enameled copper wire--85441100
Enameled aluminum wire--85441900
Enameled copper clad aluminum wire--85441900
5. How many quantity in 20 feet container?
Copper--20-22 tons
Aluminum--14-16 tons
Copper clad aluminum--16-18 tons
6. How many types of enameled copper wire? What's their difference?
(1) QA(polyurethane)
(2) QZ(polyester)
(3) QZY( polyimide)
(4) SB(self-bounding
(5) NY(nylon)
7. What' other products we have?
Enamelled Aluminium Wire
/product-detail/2014-best-sale-UL-SGS-ROHS_1964454420.html
Enamelled Copper Clad Aluminum Wire
/product-detail/UL-copper-coated-aluminum-wire-for_1867327285.html
1.Factory Direct and on-time shipment!
2.Free sample are available!
3.Can offer Certification of Original, such as FORM E, FORM B, CO by free!
4.Customized sizes, logos and packing are accepted,Can OEM.
5.Near to Dongguan, Guangzhou, Shenzhen, can arrange the car to pick up customers come to visit.
6.Goods are sold with rerun or refund guarantee due to quality issue!
7.24 hours standby, customers can contact us anytime.
