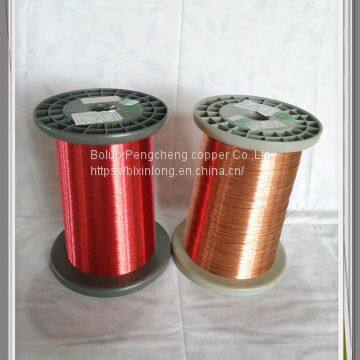

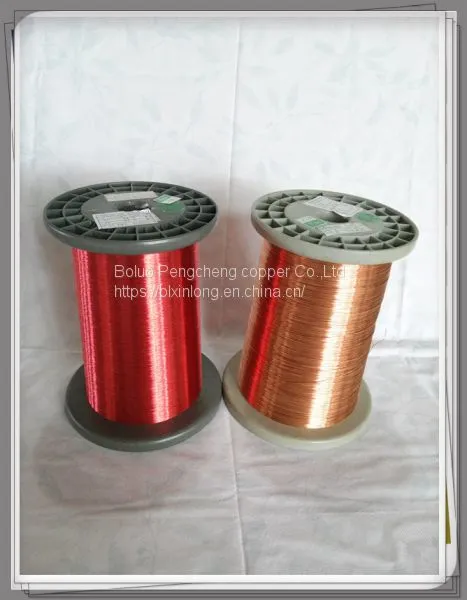

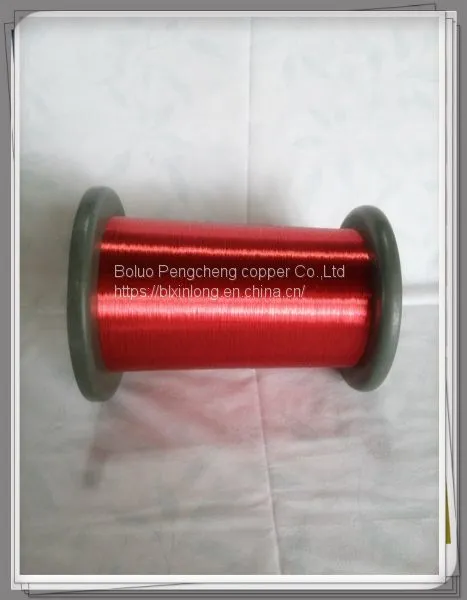

Help CenterRed Polyurethane Copper Wires Manufacturer in Guangdong
Related Products
-
Manufacturing High Conductivity Enameled Coated Cooper WireUS$ 9 - 11MOQ: 500 Kilograms -
(PEW)COPPER ENAMELED ROUND WIRE FOR MOTORS,windlass MachineUS$ 8 - 9MOQ: 500 Tons
-
Enameled Manufacturer Copper Winding Magnet Wire Insulated Winding Copper Wire Cheap Winding Copper WireUS$ 7.8 - 9.3MOQ: 500 Kilograms
-
Good Quality Polyester Enameled Wire PEW QZ Cheap Price Polyester Coating Wire for Motor and TransformerUS$ 8.8 - 10.2MOQ: 500 Tons
-
Custom Copper Litz Wire Stranded Enameled Copper Magnet WireUS$ 8.9 - 11.2MOQ: 500 Kilograms
1. Temperature Class: 130/155/180 centigrades
2. Performance features:
It is easier to make coil from aluminum enameled wire than other enameled wires. Because there is hard oxide film on the its surface, the temperature of heat-resistance is 20 higher than that of copper and insulation effect is excellent, and have a long life range. The biggest advantage is that its weight is 3 times lighter than that of copper so that the production cost can be decreased greatly. It can be soldered directly.

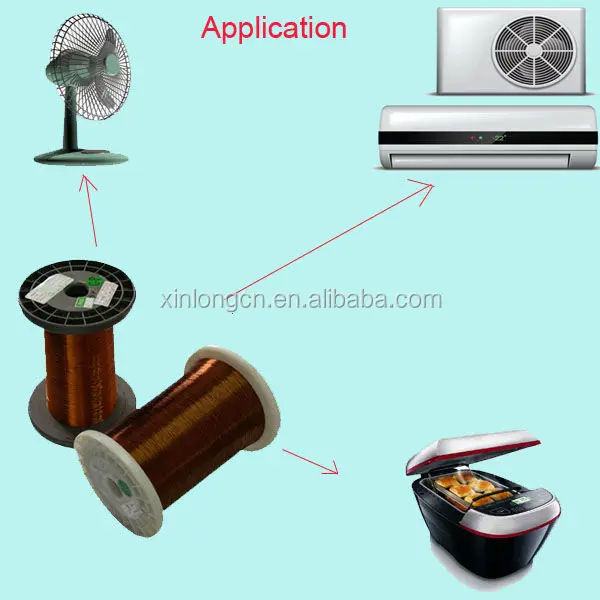

3. Main applications:
This kind of aluminum enameled wire can be used to make winding wire demanding light material, high electricity conductivity and good heat dispersing performance, especially for the winding wire for transferring high frequency signal, such household appliances as degaussing coil, high frequency transformer, common transformer and small electric motor.
4. Specification:
Diameter 0.13-2.80mm (can be made into thin coat, thick coat and coat requested by clients)
5. Packing:
carton, reel, and also can pack the goods according to the requirement of each client.

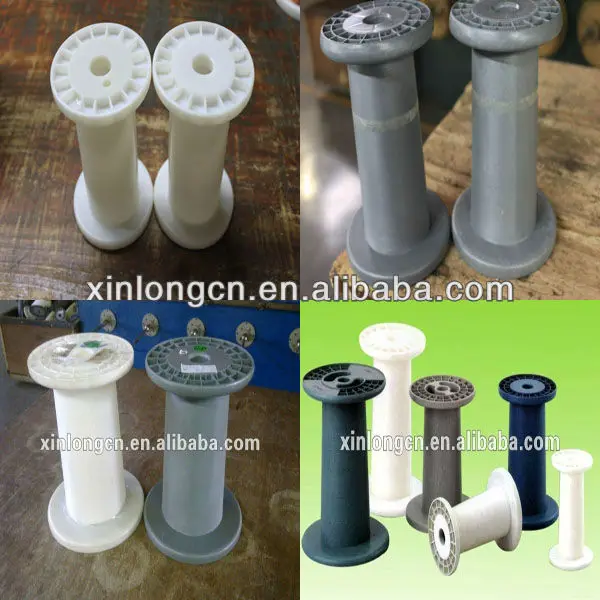

SPOOL |
PL-2 |
PT-4 |
PT-10 |
PT-15 |
PT-25 |
CARTON BOX |
Nature packaging or neutral packing,also can do as client’s design. |
||||
6. Implementation standard:
GB6109( copper enameled winding wire)
GB4074(Test methods of copper enameled winding wire)
NEMA MW1000-1997
IEC60317
JIS-3202
7.ABOUT PRODUCT
Wide Product Range:
Enameled Copper Wires,Enameled Aluminum Wires,Enameled Copper Clad Aluminum Wires(ECCA)
Sizes: 0.04~2.50mm(SWG48~SWG12)
1.Solderable Polyurethane Enameled Wire, Class 130/155/180(UEW/130,UEW/155,UEW/180)
2. Polyester Enameled Wire, Class 130/155 (PEW/130/155)
3. Modified Polyester Enameled Wire, Class 155 (MPEW/155)
4. Ployesterimide Enameled Wire, Class 180 (EIW/180)
5.Polyesterimide Overcoated With Polyamideimide Enameled Wire, Class 200 (EI/AIW/200)Do as per your request
8.ABOUT FACTORY
Experience: We are factory with 9years export experience and specialized in the field of wires cargo since 2000.
Our Cooperating Customers: Till now our cargo sells to Malaysia,India,Indonesia,Cuba,Russia,Japan,USA,HK,Pakistan ,Germany and so on.Have earn good reputation on this line.
Timely Delivery and Service
9.Model name and thermal index:
Model |
Product Name |
Thermal Index |
QZ-1/130 |
Class 130 normal insulation thickness of polyester enameled copper round wire |
130 |
QZ-2/130 |
Class 130 heavy insulation thickness film polyester enameled copper round wire |
130 |
QZ-1/155 |
Class 155 thin insulation thickness of modified polyester enameled copper round wire |
155 |
QZ-2/155 |
Class 155 heavy insulation thickness of modified polyester enameled copper round wire |
155 |
QZY-1/180 |
Class 180 thin insulation thickness of polyester -imide copper round wire |
180 |
QZY-2/180 |
Class 180 heavy insulation thickness of polyester -imide copper round wire |
180 |
Q(ZY/XY)-1/200 |
Class 200 thin insulation thickness of Polyester-imine/polyamide-imide compound enameled copper round wire |
200 |
Q(ZY/XY)-2/200 |
Class 200 heavy insulation thickness of Polyester-imine/polyamide-imide compound enameled copper round wire |
200 |
10.CERTIFICATE ADN STANDARD:
Manufacture standard: IEC Standard Asreference or others.
ISO9001:2000 Quality Management Systerm
Enamelled Copper wire and Enameled Copper Clad Alumimum wire (ECCA) has the ROHT Authentication
Enameled wire (ECCA ,Enamelled copper wire ,EAL ,CCA)has SGS Authentication
Enameled copper wires,enameled aluminum wires passed the UL.

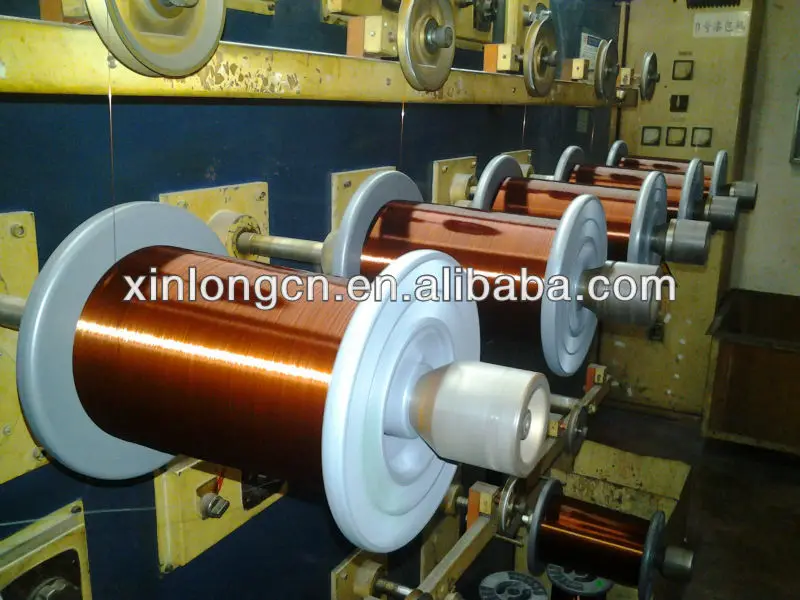

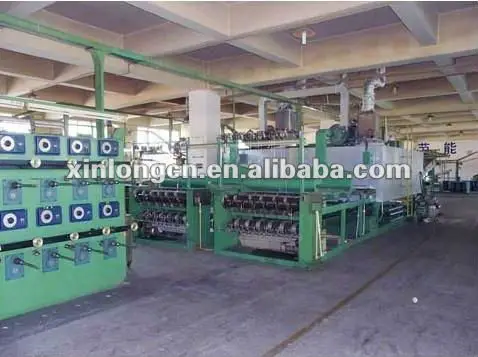

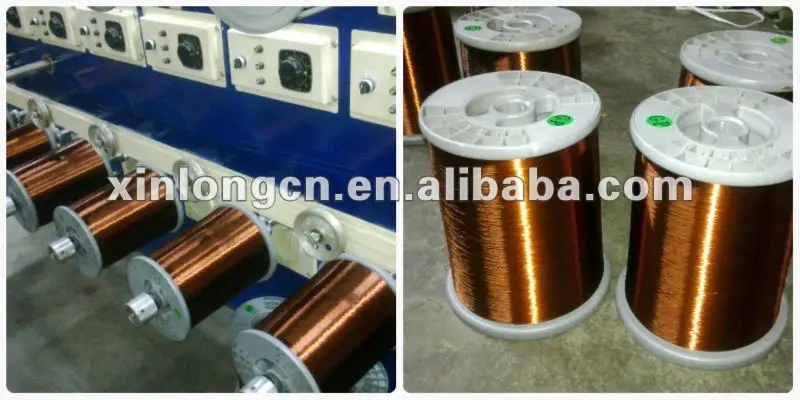

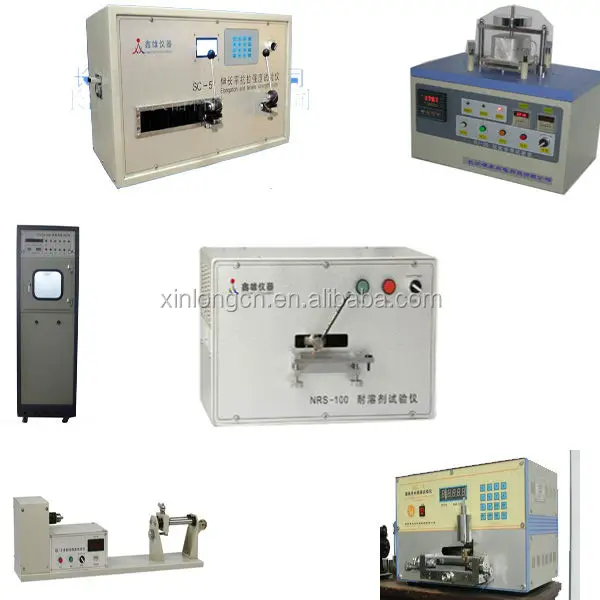

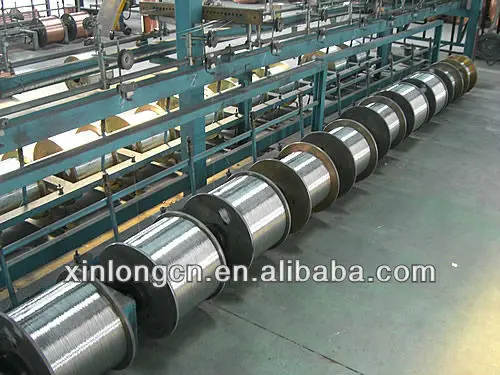

12.Produce and Test Pictures:

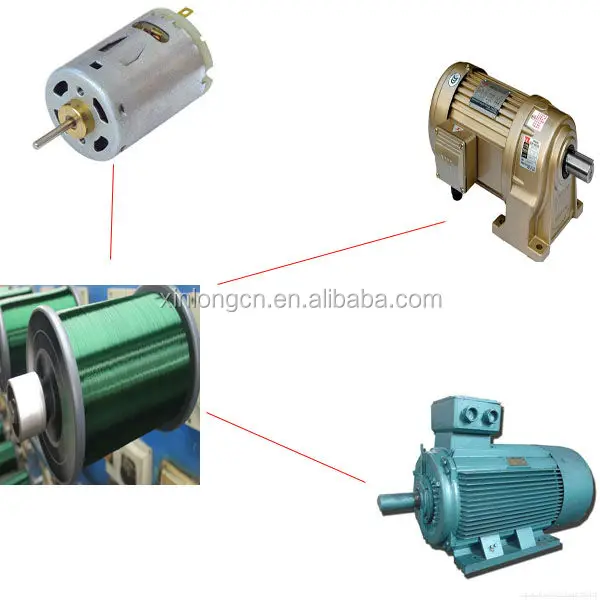

13.Useful:
Dry-type transformer,
High temperature transformer,
Sealed motor,
Power tools motor,
Auto alternators motor,
Magnet coil,
High power motor
14.TECHNOLOGY ITEM:
Insulation material: Polyester,Polyurethane,Polyester-imide
Model:QA(PEW),QZ(UEW)and QZY
Class:130/155/180/220
Insulation Tickness
Core number:one
Shape materials:Round
Elongation
Tensile strength
Paint coating(mm)
15.Service:
A.Free sample is available
B.One 20' container delivery time is 15-20 days
C.If you need certification of china,we can offer free,such as Form E, Form B,CO and so on.
D.Can be OEM.
