Enamemlled copper wires price
1.Advantage for Enamelled copper wire
The enameled copper wire has excellent conductivity ,scratch resistance,adhesion,electrical properties and solvent resistance properties.
2.All the product Diameter
Enameled copper wire(ECu):0.04-1.80mm
Enameled copper clad aluminum wire(ECCA):0.13-1.50mm
Enameled aluminum wire(EAL):0.16-2.5mm
3.TECHNOLOGY SHEET
Insulation material: Polyester,Polyurethane,Polyester-imide
Model: QA(PEW),QZ(UEW)and QZY
Class: 130/155/180/220
Insulation Tickness: 0.035-2.5mm
Shape materials: Round
Elongation: 10%-25%
Packing: Hard Carton,Pallet
4.Application:
Equipment ,step motors , Refrigerator rating compressors .. Ballast , Home appliance product. High heat-resistant electriMainly use to different kinds of Motors,Transformers, Electronic compoment ,instrument windings ,communication cal.
5.Certificate and standard
Manufacture standard: IEC Standard Asreference or others.
ISO9001:2000 Quality Management Systerm
Enamelled Copper wire and Enameled Copper Clad Alumimum wire (ECCA) has the ROHT Authentication
Enameled wire (ECCA ,Enamelled copper wire ,EAL ,CCA)has SGS Authentication
Enameled copper wires,enameled aluminum wires passed the UL
The physical and mechanical performance of copper clad aluminum wire,
copper wire , aluminum wire
|
conductor Performance |
Copper Clad Aluminum Wire |
Copper Wire |
Aluminum Wire |
Volume ratio of copper (%) |
15 |
109 |
0 |
Specific gravity (g/cm3) |
3.63 |
8.89 |
2.70 |
Length ratio in same wire diameter and unit weight |
2.5: 1 |
1: 1 |
3.29: 1 |
Conductivity (IACS) |
70 |
100 |
62 |
Electric resistivity(Ωmm2) |
0.02462 |
0.01724 |
0.02740 |
Tensile strength (M pa ) |
95-135 |
215-266 |
68-107 |
Elongation (%) |
≥10 |
≥20 |
≥8 |
Winding performance |
good |
very good |
good |
Weight |
good |
bad |
very good |
Soldering performance |
very good |
very good |
bad |
Direct current resistance |
good |
very good |
good |

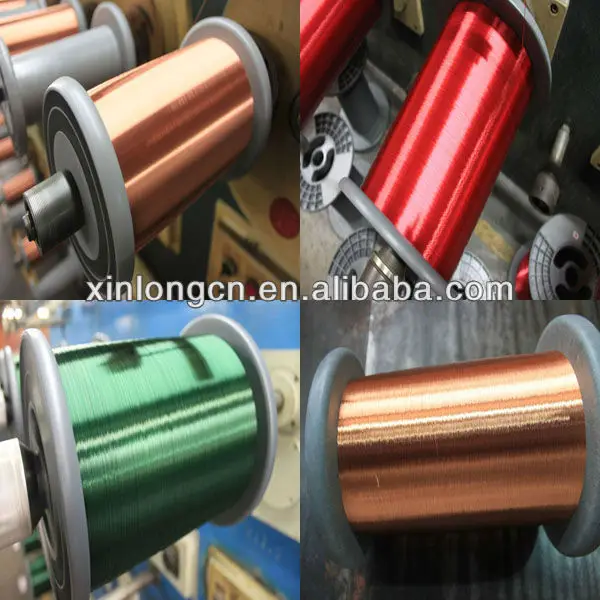

6.Model pictures:

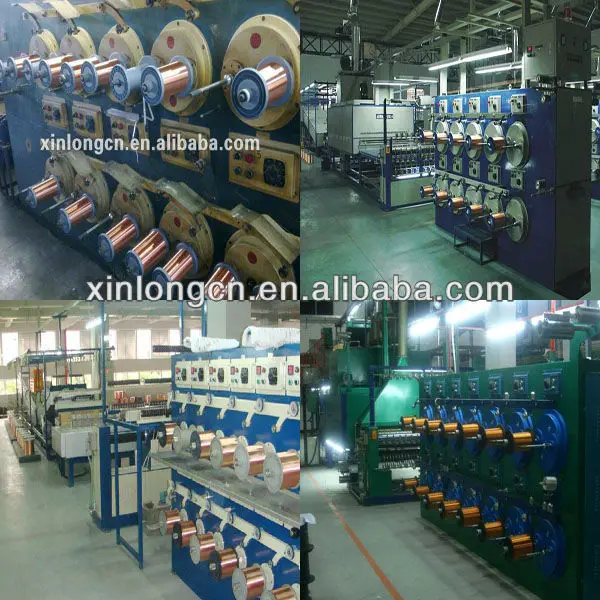

7.Manufacture facility

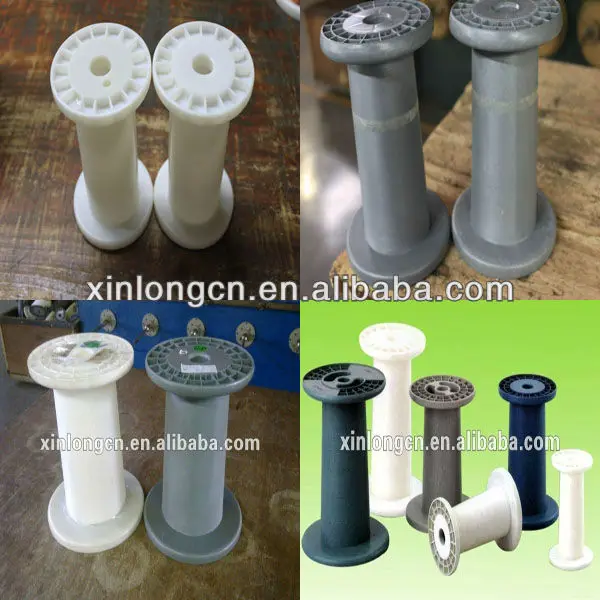

8.Different sizes of spools
Spool size |
Size range (mm) |
Net weight |
PT-2 |
0.05-0.08mm |
2kg |
PT-4 |
0.05-0.08mm |
4.5kg |
0.09-0.12mm |
4.5kg |
|
0.13-0.18mm |
4.5kg |
|
PT-10 |
0.13-0.20mm |
10kg |
0.21-0.25mm |
10kg |
|
PT-15 |
0.21-0.80mm |
15kg |
PT-25 |
0.23-1.00mm |
28kg |
9.Package:
All overseas orders will be carefully packed before sending for shipping.
10.Identification
