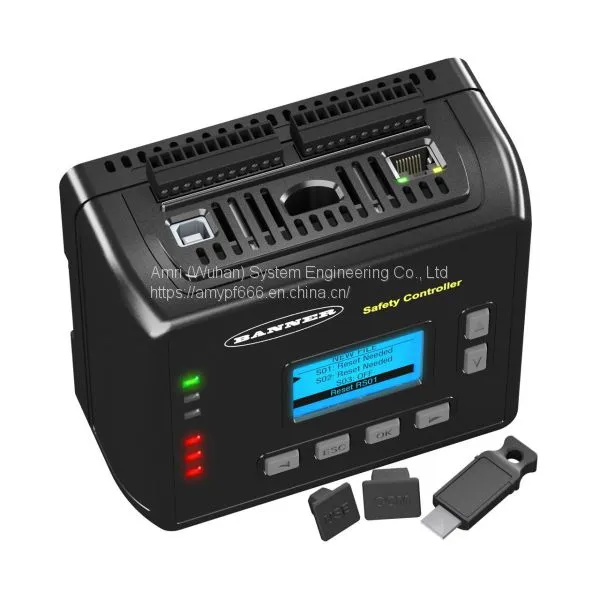

Safety Controller Ethernet Banner SC22-3E-S
Safety Controller Ethernet: 22 Inputs; 3 pairs of PNP Safety Outputs (0.5 Amp each)
10 Status Outputs (1 amp total); 32 Virtual Status Outputs
Kit includes: Removable screw terminals;
Removable external memory card
Part No.： 83367
Device Type Safety Controller
Safety Module Type Base Controller
LCD Display Yes
Expandable No
Dimension (H x W x D in mm) 112 x 131 x 64
Relative Humidity 90% @ 50° C
Max Operating Temperature ( °C) 55
Input Operation Simultaneous or Concurrent
Number of Safe Inputs 22
Input Configuration Configurable
Number of Convertible Inputs 22
Safety Input - Dual Channel (Dry Contact) 8-50 mA @ 24 V dc
Safety Input - Dual Channel (Solid-State) 50 mA @ 15 - 30 V dc
Safety Input - Reset 8-50 mA @ 24 V dc
Independently Controlled Safe Outputs 3
Output Configuration 3 OSSD Pairs
Non Safe Output Configuration 10 PNP
Non Safe Output Rating 0.5 A @ 24 V dc (individual); 1.0 A @ 24 V dc (total of all outputs)
Safe Output Rating OSSD 0.50 A max. @ 24 V dc
Splittable Safe Output No
Power Consumption 0.4 A (controller only); 5.9 A (full load)
Response Time (ms) See Software Configuration Summary
Supply Voltage 24 V dc +/- 20%
Terminal Type Screw
Removable Terminals Yes
Vibration 9-150 Hz at 1g occasional/0.5g continuous
IP Rating IP20
PL Rating e
Safety Category Rating 4
SIL Rating 3
SISTEMA PFHd = 2.3 x 10-9
THC Rating IIIC
Safety Input - Single Channel 8-50 mA @ 24 V dc
Input Resistance 150 Ω max. per lead
