Home > Products > gas cylinder > 1000kg840L CHLORINE ,AMMONIA ,REFRIGERANT GAS cylinder with flange &without with LR,BV CERTIFICATE
1000kg840L CHLORINE ,AMMONIA ,REFRIGERANT GAS cylinder with flange &without with LR,BV CERTIFICATE
USD $200 - $1000
/ Piece
5 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shanghai
- T/T L/C
- 30 days
You May Like
-
1000kg840L CHLORINE REFRIGERANT GAS cylinder with flange &without with LR,BV CERTIFICATE
-
Cheap AAC Block Production Line, AAC Plant, AAC Panel Production Line
-
AAC Autoclave 31m Aerated Concrete Block Flyash BrickSand Lime Brick
-
Fully Automatic Equipments of AAC Autoclaved Aerated Concrete Block Plant Block Machine
-
Chinese cheap Automatic Equipments of AAC Autoclaved Aerated Concrete Block Plant Block Machine
-
Autoclave for Brick Production Line Autoclaved Aerated Concrete
Product Details
| Brand Name | lanyi | Place of Origin | China | |
| Model Number | 40L,100L,400L,800,840L 1000L GAS CYLINDER | Power | Hydraulic | |
| Standard or Nonstandard | Standard | Structure | General Cylinder | |
| Shaft Diameter | 800mm | Maximum Stroke | 1000kg | |
| Body Material | Steel |
Product Description
Product Description

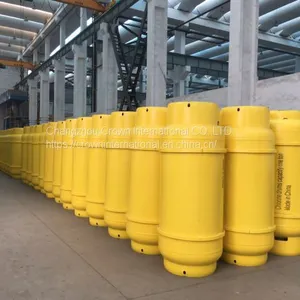

Empty Liquid chlorine gas cylinder is made of high quality steel, which capacity has100L, 400L, 800L, 840L,926L,1000L with GB5100 standard, and its specification as follows:
| Medium | Liquid Chlorine Cylinder | ||
| Nominal capacity | 400 L | 800 L | 840 L |
| Nominal working pressure | 2 Mpa | 2-2.1 Mpa | 3 Mpa |
| Hydraulic test pressure | 3 Mpa | 3-4.5 Mpa | 4.5 Mpa |
| Working temperature | -40-60 ºC | -40~60 ºC | -40-60 ºC |
| Design Wall thickness | 3.8 mm | 5.1 mm | 6.84mm |
| Nominal wall thickness | 6-8 mm | 10-12 mm | 12 mm |
| Filling ratio (kg/L) | 1.25 | 1.25 | 1.25 |
| Max Filling weight | 500 KGS | 1000 KGS | 1150 KGS |
| Design working life | 12 Year | 12 Year | 12 Year |
| Valve | QF-10 | QF-10 | QF-10 |
| Out thread of valve | G3/4 | G 3/4 | G3/4 |
| Height of body | 1800 mm | 2000 mm | 2255 mm |
| Weight | 250 KGS | 445 KGS | 630 KGS |
