Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > 1000kg840L CHLORINE REFRIGERANT GAS Cylinder With Flange &without With LR,BV CERTIFICATE
1000kg840L CHLORINE REFRIGERANT GAS Cylinder With Flange &without With LR,BV CERTIFICATE
US$ 200 - 1000
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
lanyi
Place of Origin:
China
Model Number:
840L 1000KG
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
30 days
Related Products
Brand Name
lanyi
Place of Origin
China
Model Number
840L 1000KG
Power
Hydraulic
Standard or Nonstandard
Standard
Structure
General Cylinder
Shaft Diameter
800mm
Maximum Stroke
1000kg
Body Material
Steel
Product Description
whatsapp:008613775295733

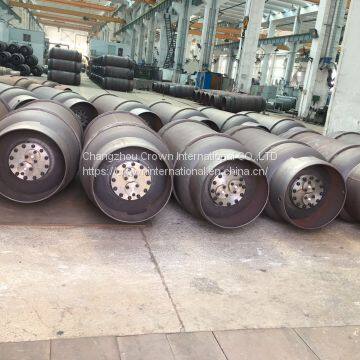

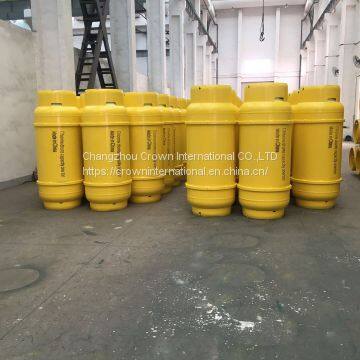

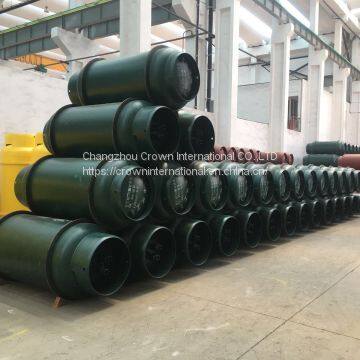

Empty Liquid chlorine gas cylinder is made of high quality steel, which capacity has100L, 400L, 800L, 840L,926L,1000L with GB5100 standard, and its specification as follows:
| Medium | Liquid Chlorine Cylinder | ||
| Nominal capacity | 400 L | 800 L | 840 L |
| Nominal working pressure | 2 Mpa | 2-2.1 Mpa | 3 Mpa |
| Hydraulic test pressure | 3 Mpa | 3-4.5 Mpa | 4.5 Mpa |
| Working temperature | -40-60 ºC | -40~60 ºC | -40-60 ºC |
| Design Wall thickness | 3.8 mm | 5.1 mm | 6.84mm |
| Nominal wall thickness | 6-8 mm | 10-12 mm | 12 mm |
| Filling ratio (kg/L) | 1.25 | 1.25 | 1.25 |
| Max Filling weight | 500 KGS | 1000 KGS | 1150 KGS |
| Design working life | 12 Year | 12 Year | 12 Year |
| Valve | QF-10 | QF-10 | QF-10 |
| Out thread of valve | G3/4 | G 3/4 | G3/4 |
| Height of body | 1800 mm | 2000 mm | 2255 mm |
| Weight | 250 KGS | 445 KGS | 630 KGS |
