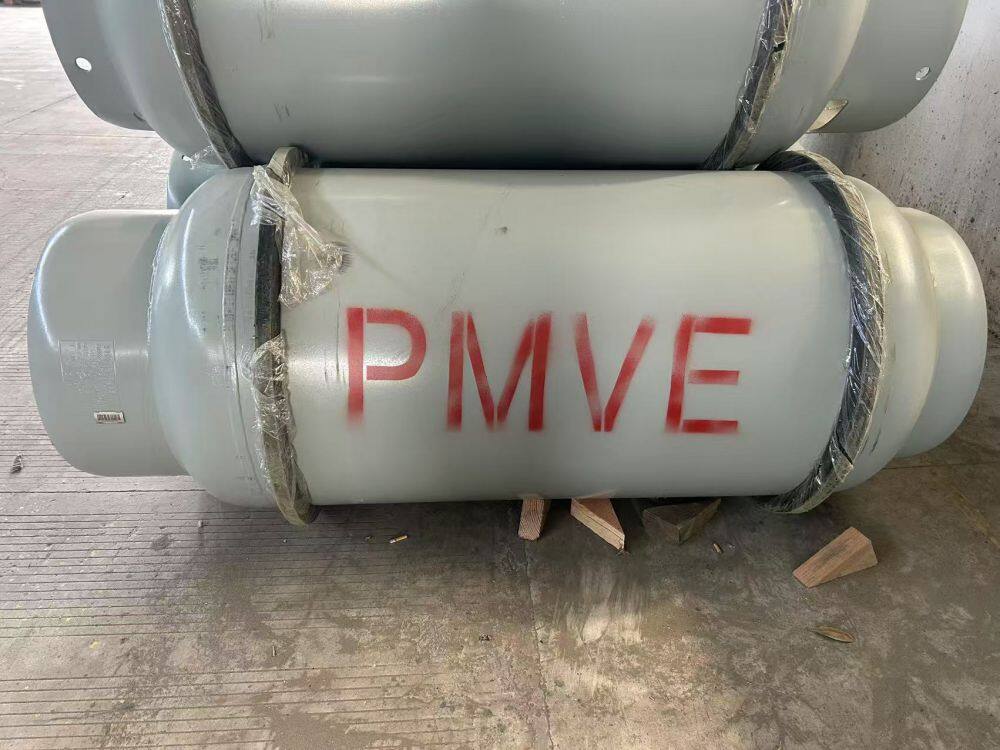

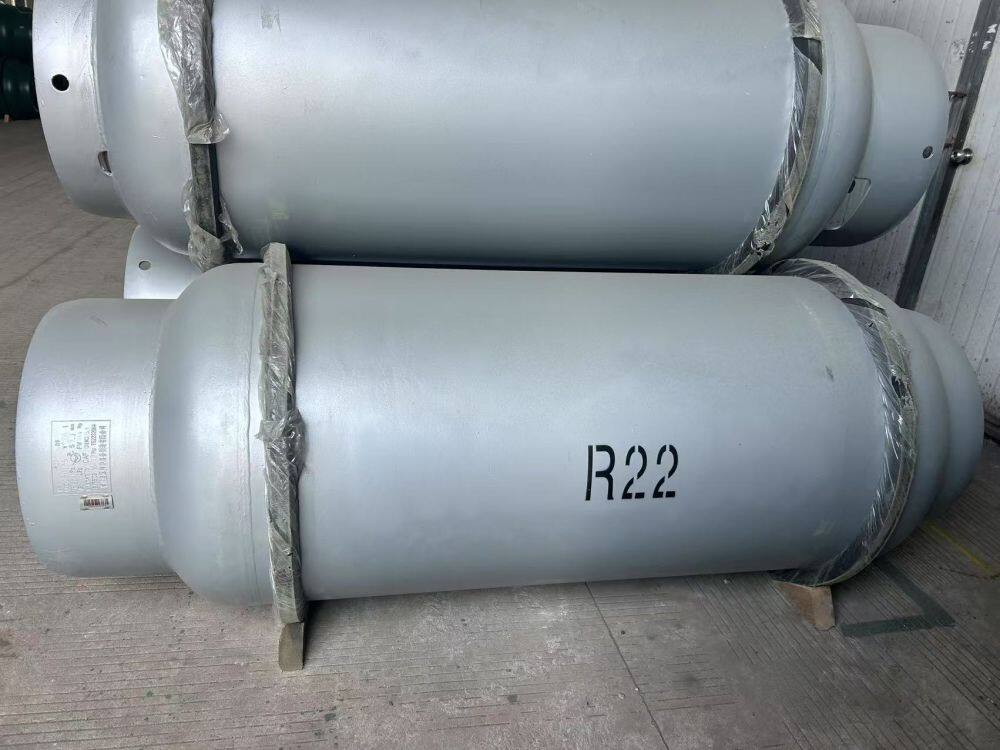

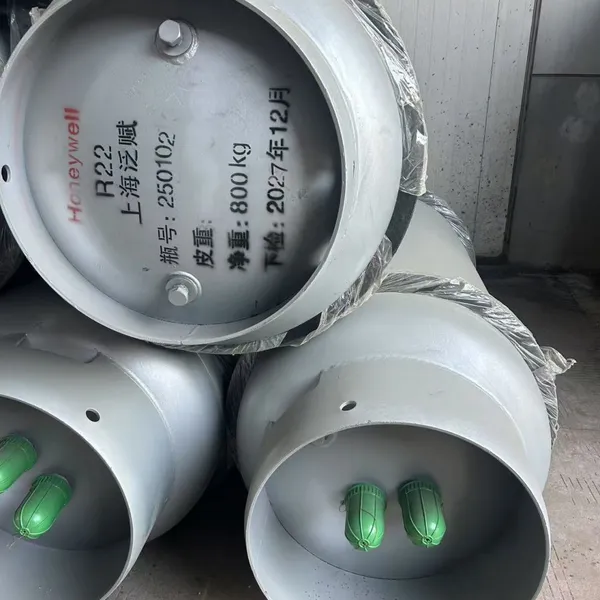

Specification for 1000Lrefrigerant gas Cylinders with valves
The cylinders filled with refrigerant gas , these cylinders will be made of steel which have a good mechanical strength and a good resistance against corrosion. cylinders will be manufactured in accordance with the following technical clauses.
The characteristics and technical specification of the tanks described as below:
Design code : GB/T5100-2011
Material:HP345/Q345R
Liquefied Gas weight: R134a: 1000kg , R152a 770kg ,DME 580kg etc
Water capacity:1000L
Working pressure: 20 bar
Design pressure: 20 bar
Hydraulic pressure: 30 bar
Working temperature:-40~60℃
Melting point of fusible metal: 90 °+5 ℃
Welding coefficient: 0.9
thickness of shell : 10mm(min)
Tare :536kg
Dimension: length: ~2030mm Diameter of shell :900mm

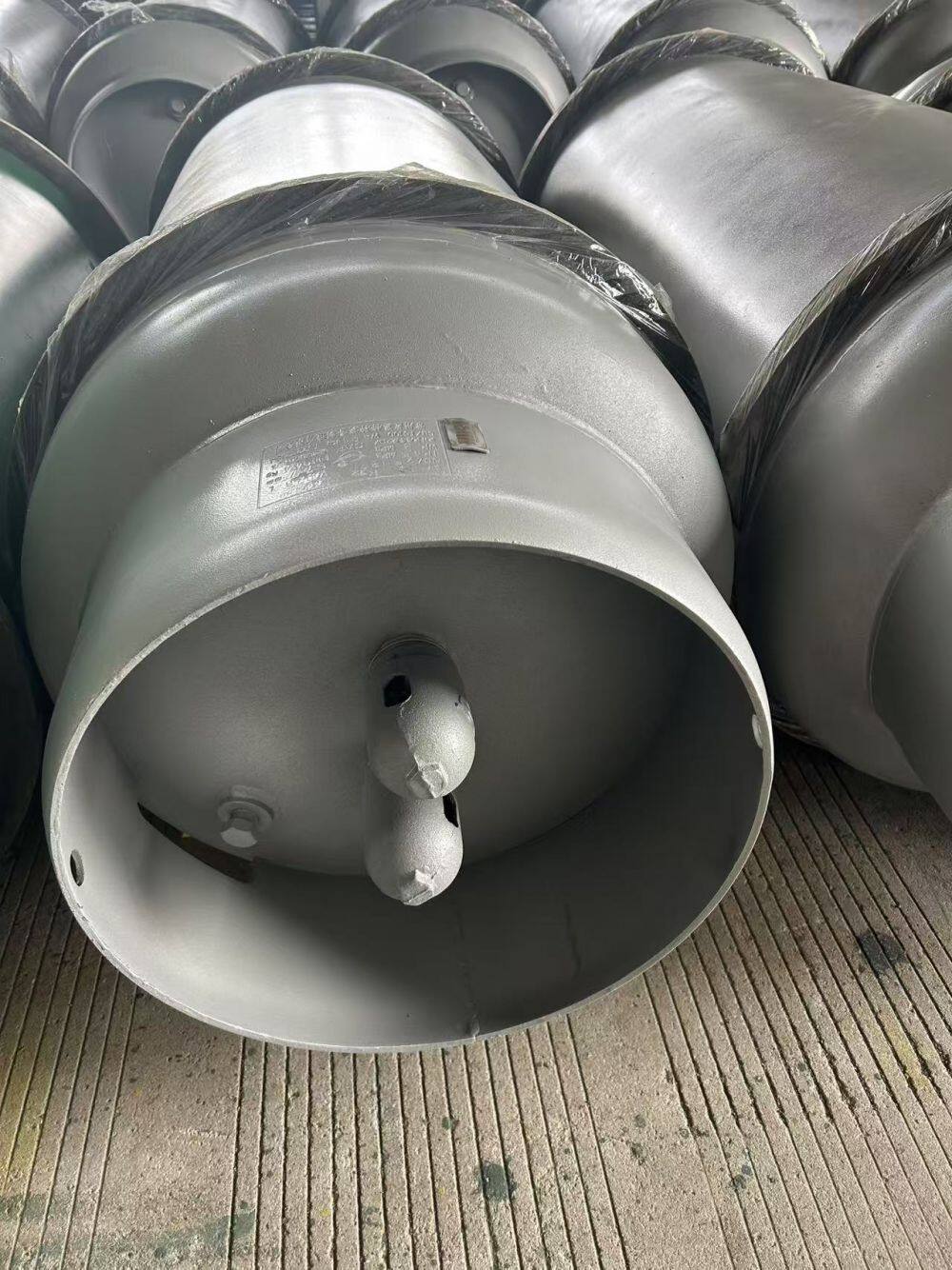

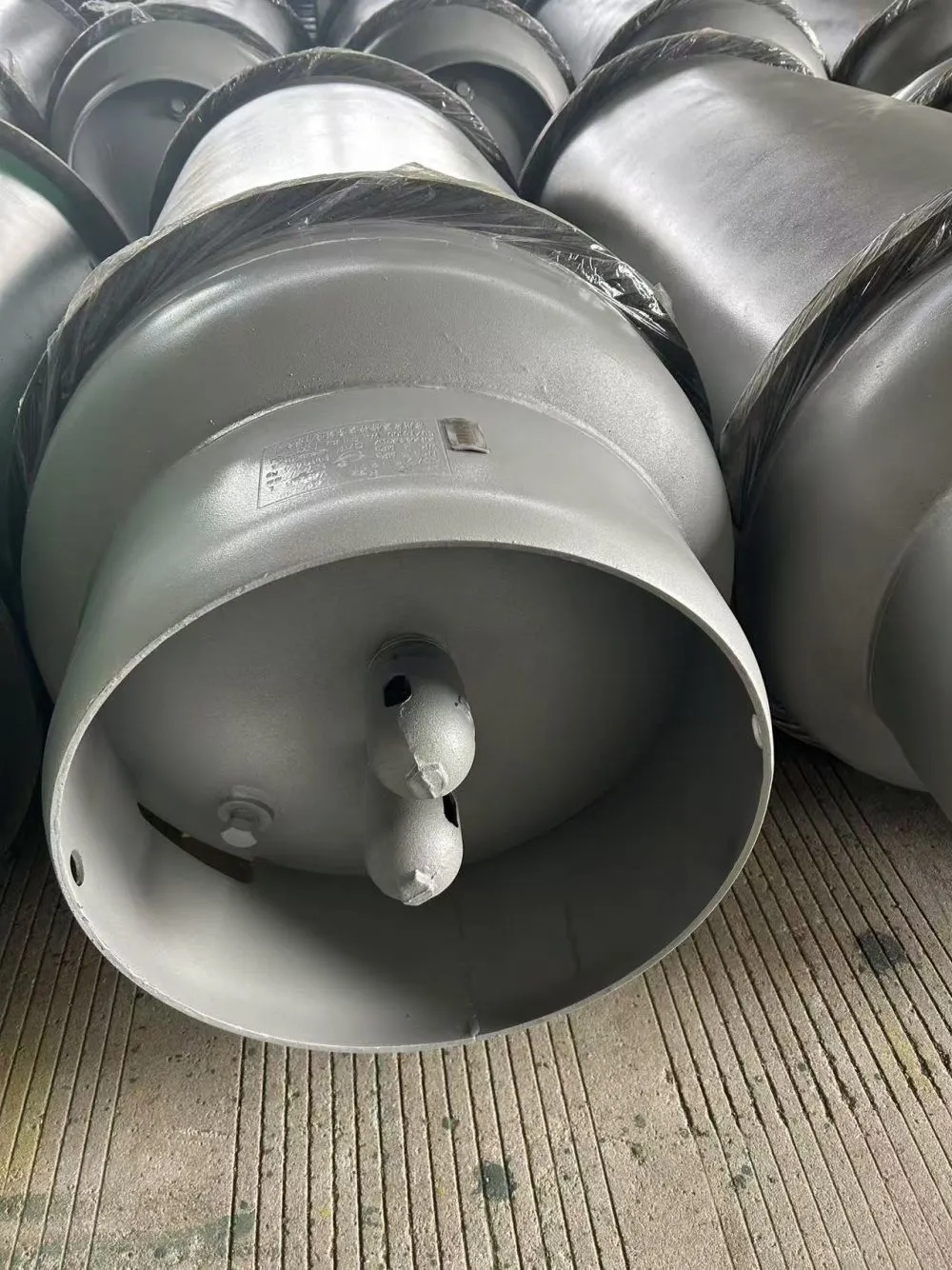

Valves:QF-13
Design life :20 years

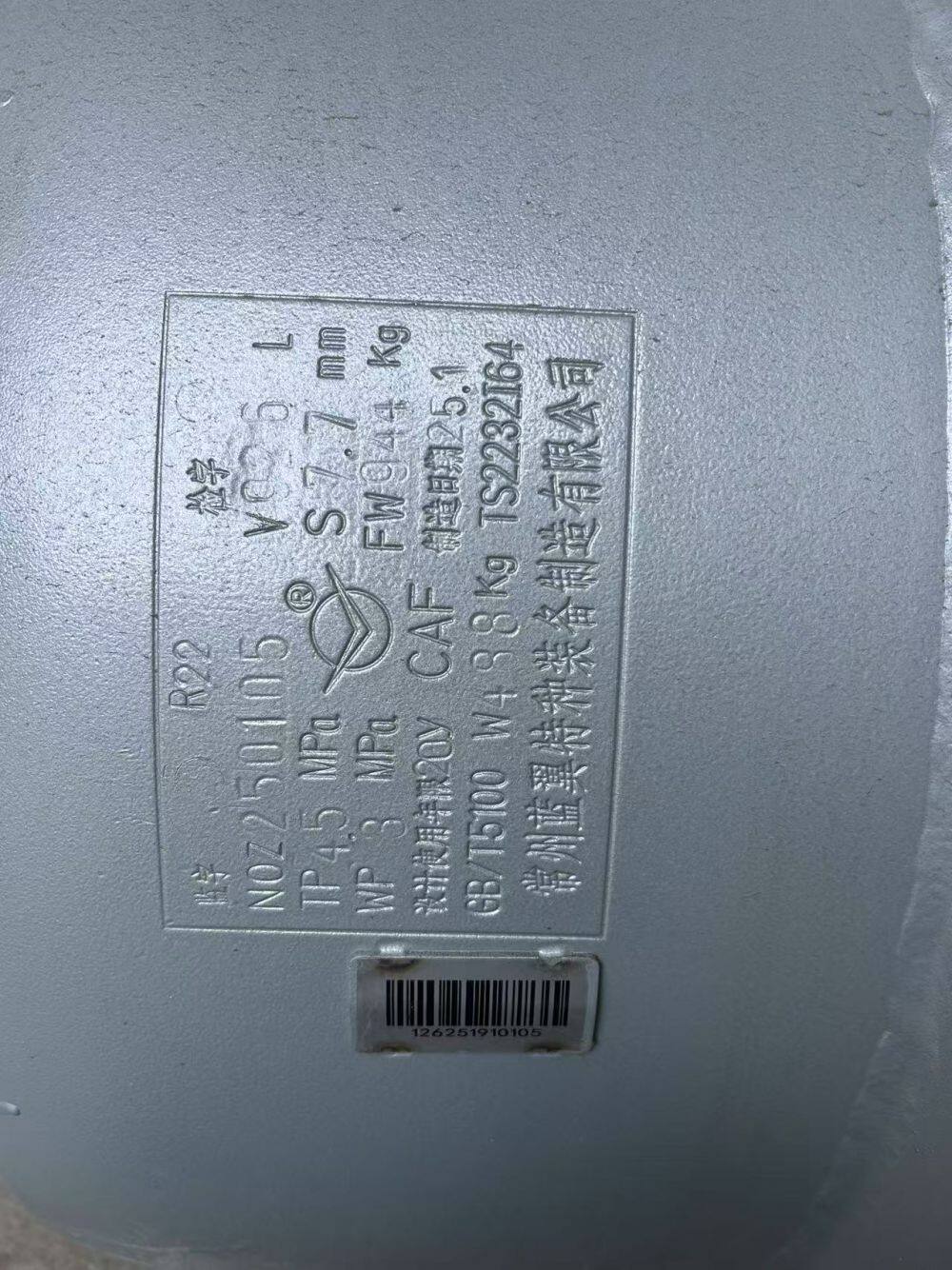

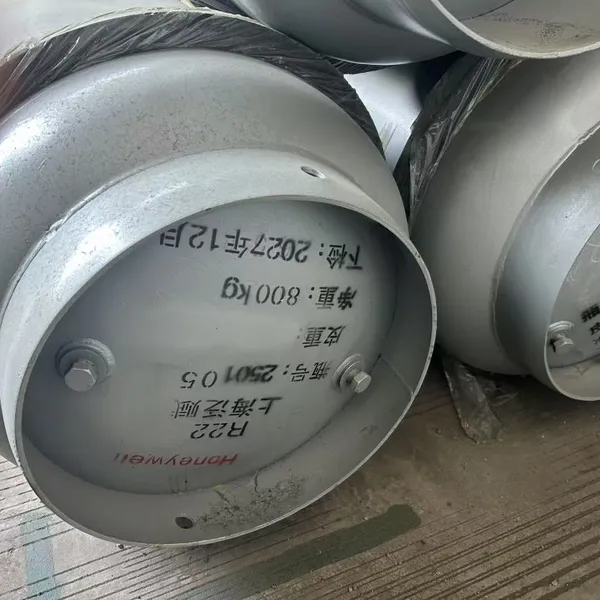

A stainless steel plate can be fixed to each cylinder containing all cylinder data (serial number, working pressure, test pressure, thickness, factory name and logo if needed…)

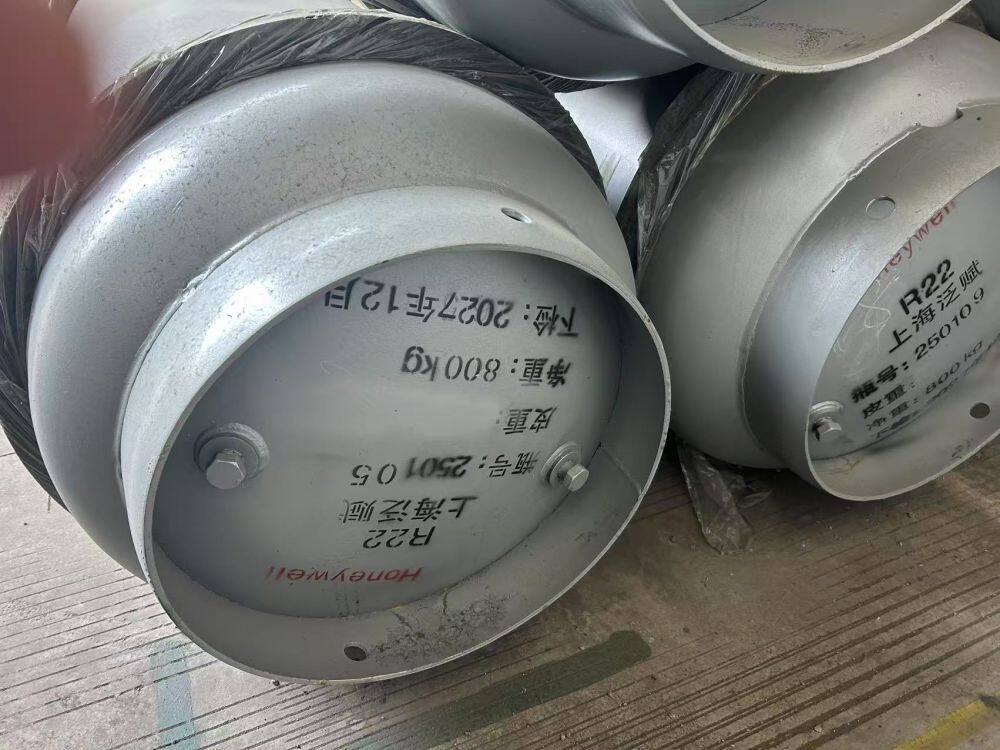

The serial number and first test date will be stamped on the cylinder body.
Materials used:
cylinders are manufactured according to GB5100-2011 with the following special steel plant. The cylinders can be used frequent filling of refrigerant gas under a working pressure of 20bar ,having the following technical date:
Material : Q345R/HP345
Tensile strength 510~620N/mm2
Yield strength ≥345N/ mm2
Impact strength ≥27J
Working temperature -40~+60℃
Elongation ≥21％
