IEC 61730 standard Solar panel component rupture tester/Solar panel impact testing Machine/pv module testing machine
Testing standard
It's conform IEC61730-2:2016 testing standard
Purpose
The purpose of this test is to provide confidence that risk of physical injuries can be minimized if the module is broken in its specified installation
The specifications
Testing frame |

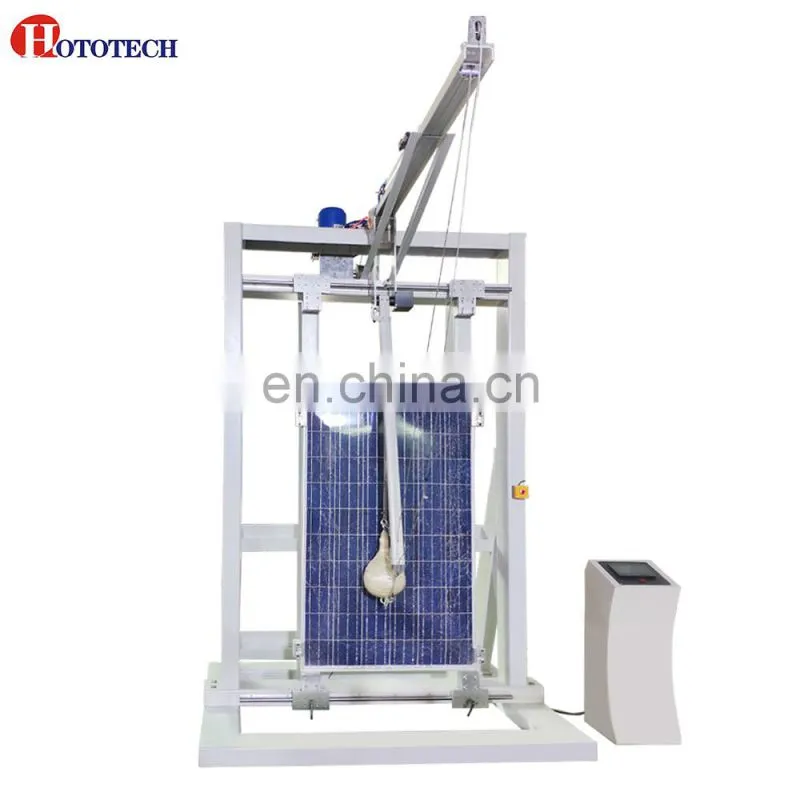

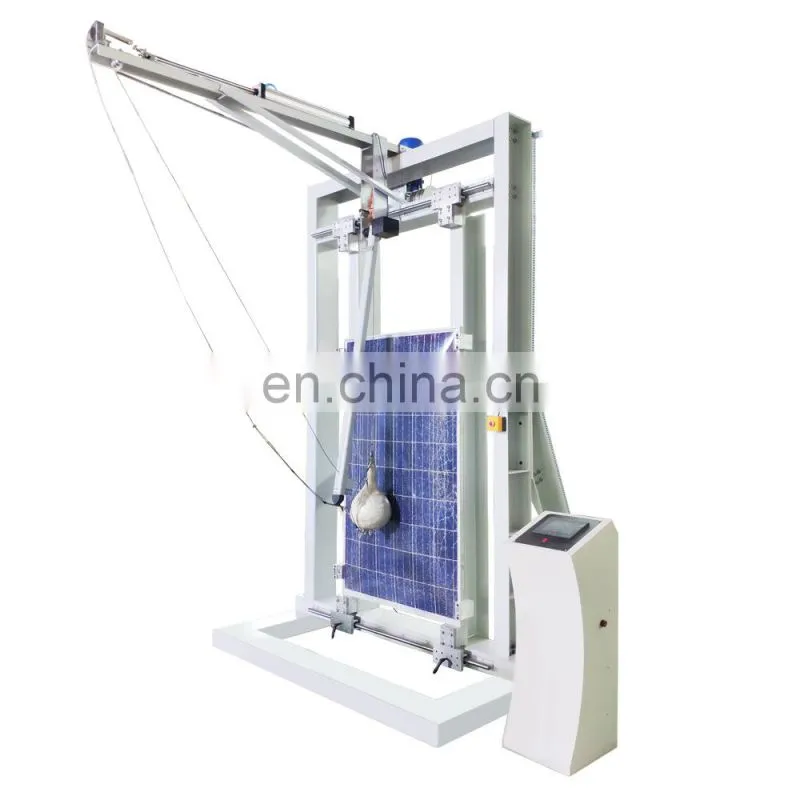

a. The Struction frame raw materials: Steel channel ( approx the width ≥100mm ) b. The frame used welded or securely bolted at the coners to minimize twisting during impact c. It's use the bolted to the floor to prevent movement during impact testing d.The inner dimension of test frame: 2.0×1.0m (It’s adjustable, suit for diffferent dimension of pv modules testing) e. The sample frame with the rubber bar and the thickness is 3mm, wide 15mm, hardness shore A50° |
| Impact Bag |

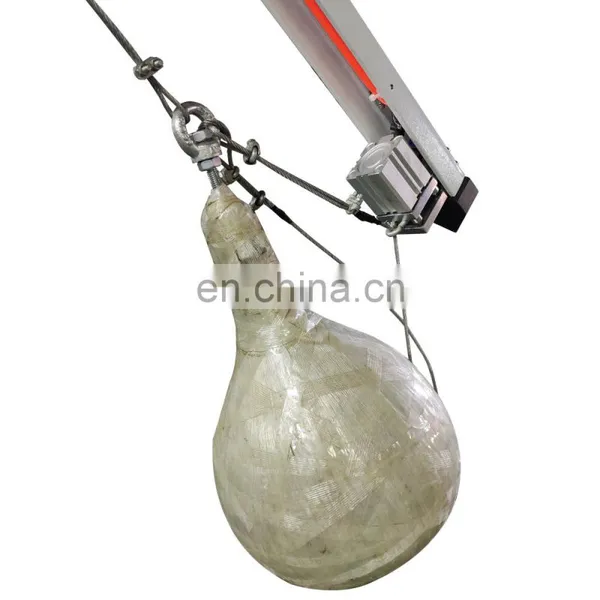

a. The exterior of the bag according to the standard use the wrapped with tape b. The inner filling diameter 2.5-3.0mm ( the material is pellets or steel ball ) c.The mass of impactor :45.5 ± 0.5kg d.The ratio of widest diameter to height is between 1:1,5 to 1:1,4 |
Impact height |
300mm , 450mm, 600mm, 750mm, 900mm, 1200mm |
Impact height display accurate |
0.1mm |
Impactor rise ways |
Automaitc rise/ Jog rise |
Release ways |
arriving predetermined height, the cylinder automatic release |
| Display | Real-time display rise height |
| Control ways | Touch screen control and display |
| Safety Function |
a. Before release delay warning function b. With the safety protection frame c. Anti-secondary impact function |
| Electricity | 220V 50HZ |
Testing procedure
1. At rest the impactor bag shall hang no more than 13mm from the surface of the pv module sample and no more than 50mm from the centre of the pv module sample
2.Lift the impactor to a drop height of 300mm from the surface of the pv module sample, allow the impactor to stabilize and then release it to impact the pv module sample
