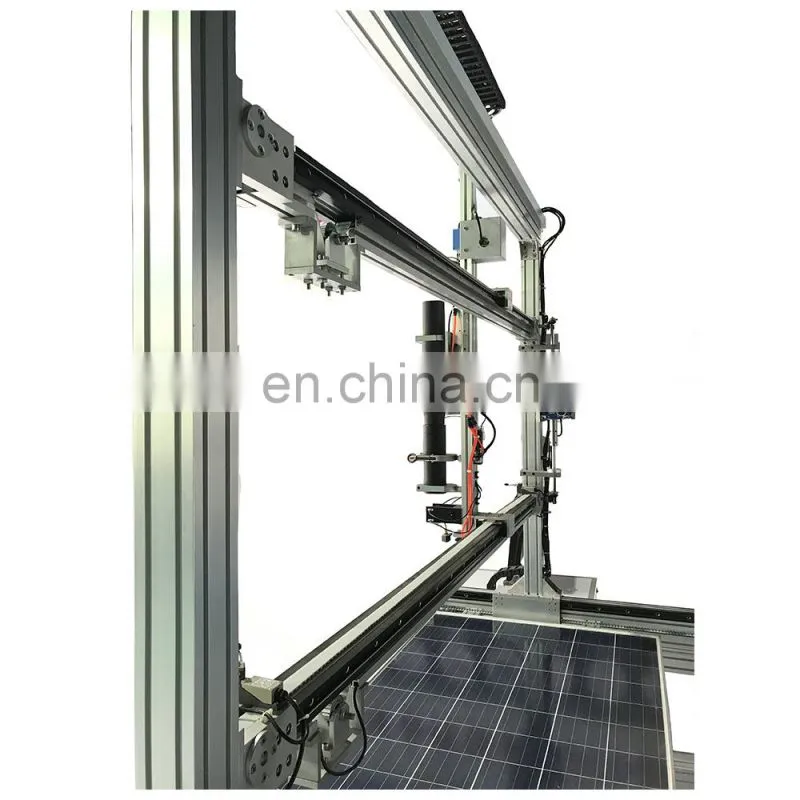

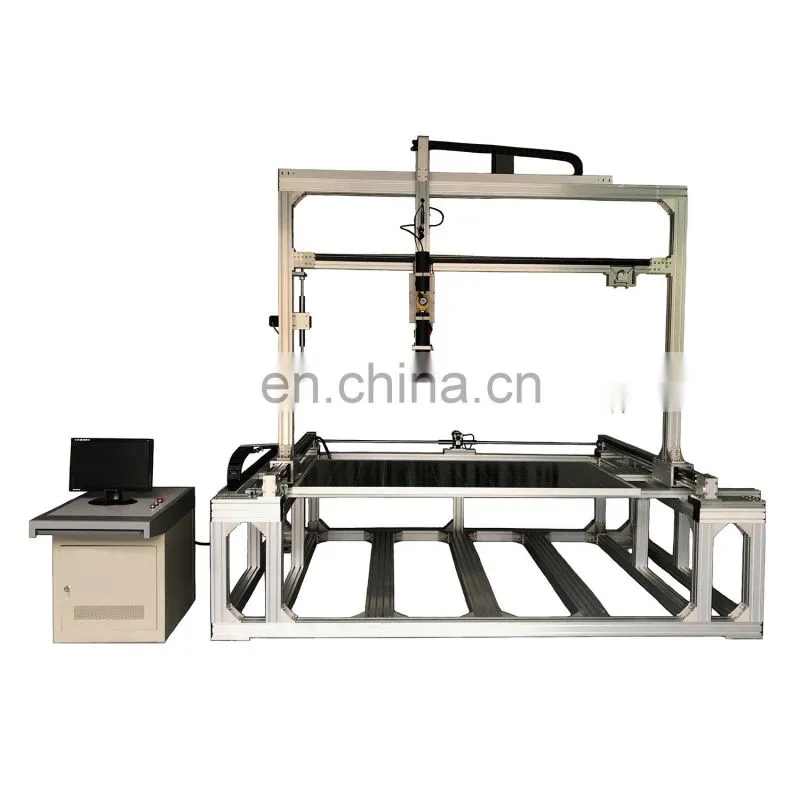

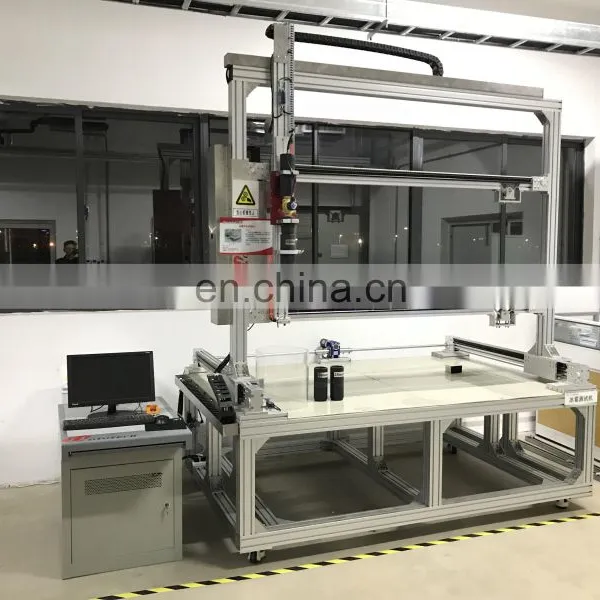

solar panel Hail shock testing machine/ strike testing machine / impact testing equipment
Testing standard
It's conform IEC61215-2:2016 testing standard
Purpose
It's to verify that the module is capable of withstanding the impact of hailstones
The Mainly Specifications

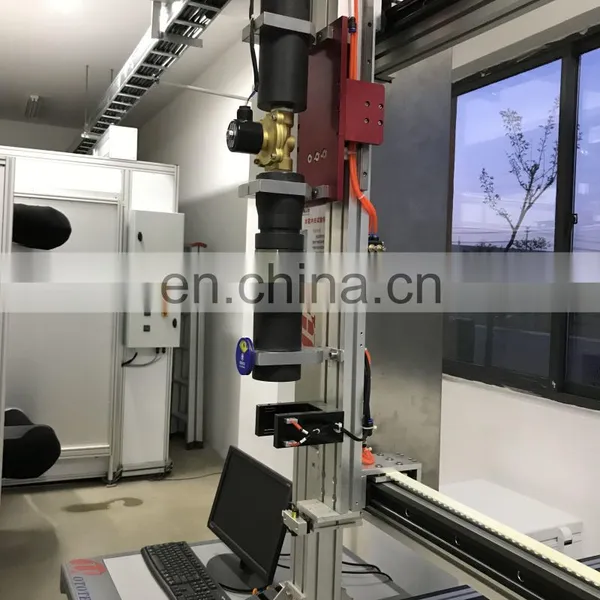

launch device |
a.Power source is air compressor b.Air pressure:6-8bar c.Ice ball single filled by manual d.The barrel length approx 940mm e.The barrel can change |
| Moving locating device |
a.X shaft move distance approx 2200mm b.Y shaft move distance approx 1300mm c.Locating accurate d.Impact area:2000*1000mm (can adjustable) e.Guide ways is high quality import guide rail f.Driving ways adopt import servo motor + synchronous wheel g.Locating control ways is PC control and automatic locating |
| Speed catch range |
0~50 m/s |
| Ice ball speed |

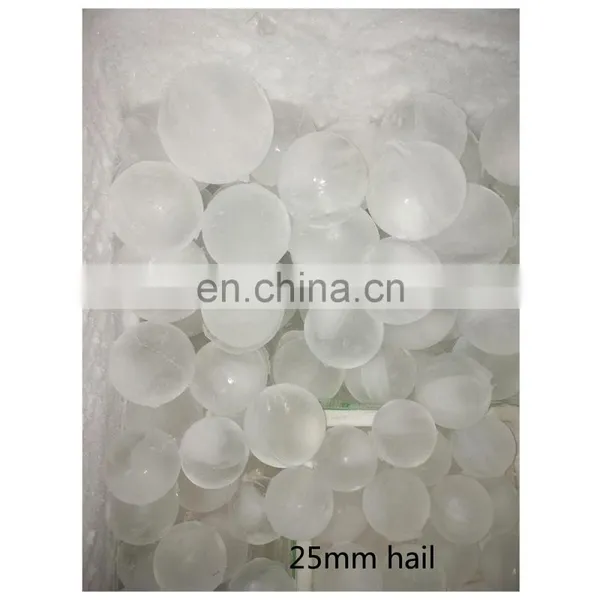

25mm, 35mm, 45mm |
| Ice ball mould | Each diameter ice ball's mould will attched 2sets |
| Control ways | Computer control |
| Electricity | 220V 50HZ |
