Mechanical Testing Machine Cylinder Pressure Test Equipment Cylinder Solar Panel
US$ 1 - 1
/ Set
1 Set(Min. Order)
- SHENZHEN
- T/T Credit Card
You May Like
-
Solar Panel Simulte Load Testing Machine / PV Module Panel Pressure Intensity Testing Equipement/Solar Module Testing Equipment
-
280~400nm Wavelength Ultraviolet Rays Tester /UV Testing Chamber/ UV Environment Chamber for PV Module
-
Hight Quality Solar Panel Conduit Crook Machine / Conduit Tube Bending Testing Equipment/Solar Panel Testing Machine
-
Solar Panel Deformation Testing Machine / Dynamic Mechanical Laod Tester / Static Mechanical Load Testing Equipment
-
PV Moule Solar Panel Testing Machine /Solar Panel Static Mechanical Load Tester With IEC61215-2:2016 Testing Standard
-
Solar Panel PV Module Ice Ball Withstand Impact Testing Machine /Ice Ball Impact Testing Equipment/hail Test
Product Details
| Brand Name | HOTOTECH | Place of Origin | Guangdong, China |
Product Description

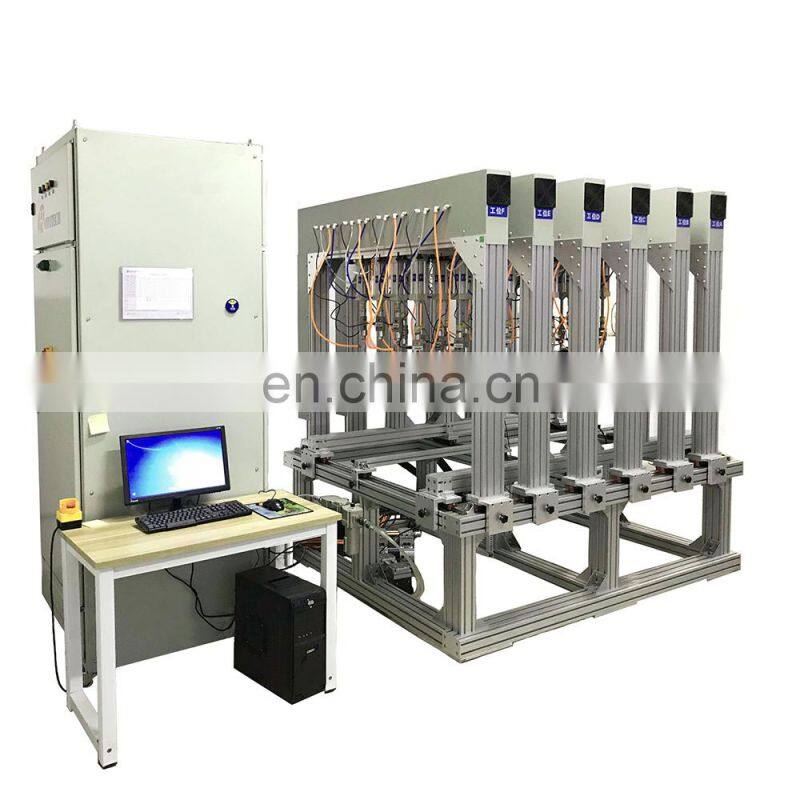

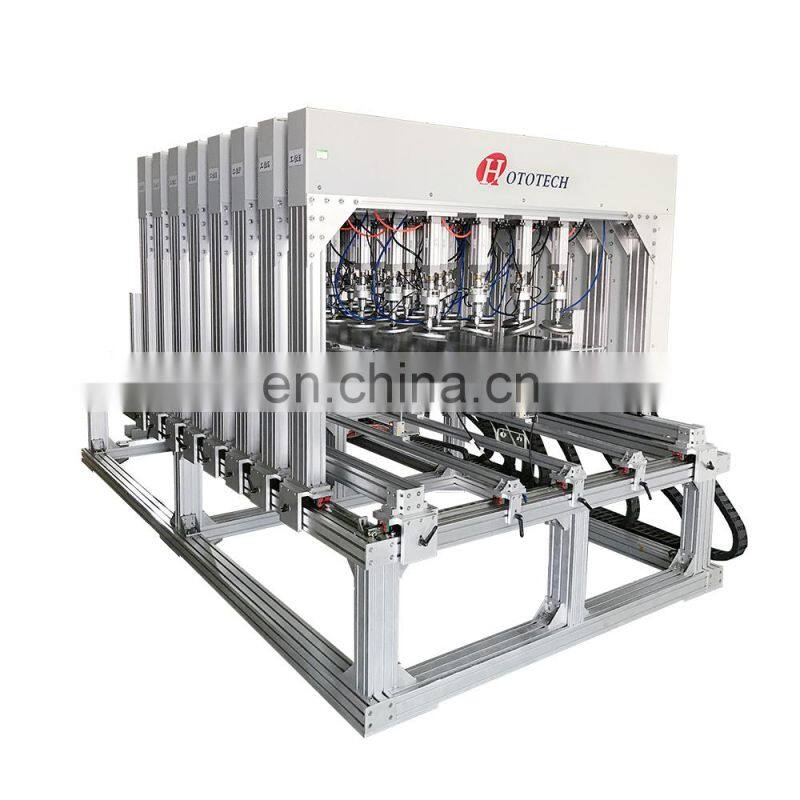

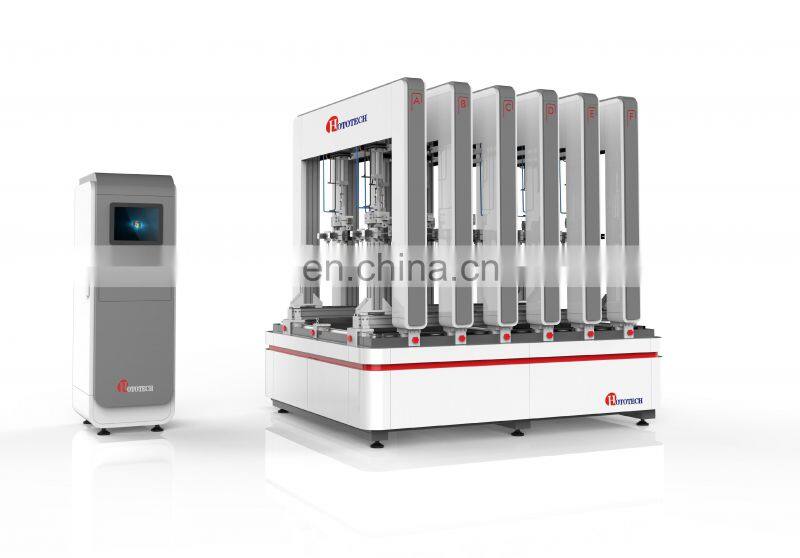

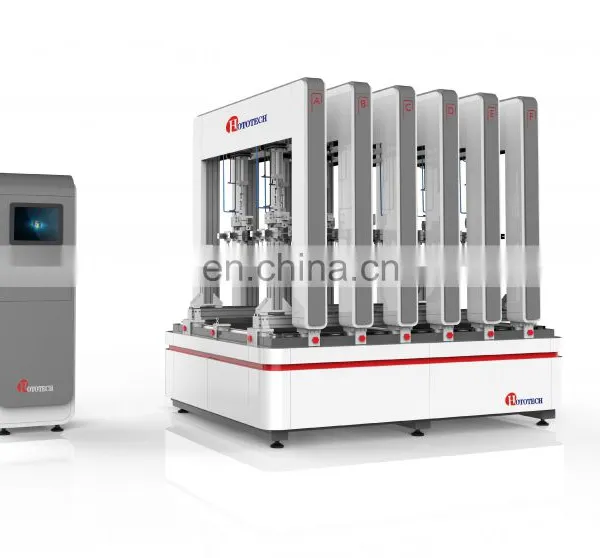

Mechanical testing machine cylinder pressure test equipment cylinder solar panel
HTPV-08 Mechanical Load Tetser
Standard: According to IEC 61215,UL1703,IEC 62782 standard requirement | |||||||||||
Purpose: This test is to determine the ability of the module to withstand wind,snow,static or ice loads. | |||||||||||
| 1.The machine table apperance dimension:L280*D180*H195cm | |||||||||||
| 2.Test Positive load 5400Pa,reverse load:2400Pa(Pressure can setting) | |||||||||||
| 3.Cycle times:free setting | |||||||||||
| 4.Dynamic load test frequency:7s±3s | |||||||||||
| 5.Dynamic load:1000Pa,1000times. | |||||||||||
| 6.Pressure control accurate:5% | |||||||||||
| 7.Pneumatic and force value feedback ways:low friction force cylinder,tensile pressure sensor(accurate 0.1N) | |||||||||||
| 8.Aluminum profile structure feature:platform and support frame arent deformation under suffer force situation | |||||||||||
| 9.The maximum test dimension:2000mm*1000mm(can accoding to customer's requirement to customized) | |||||||||||
| 10.Customization test platform fixture,according to determiand install ways to do adjust | |||||||||||
| 11.Current continuity system:DC power,DC 150V/2A,real-time monitor module inner current continuity | |||||||||||

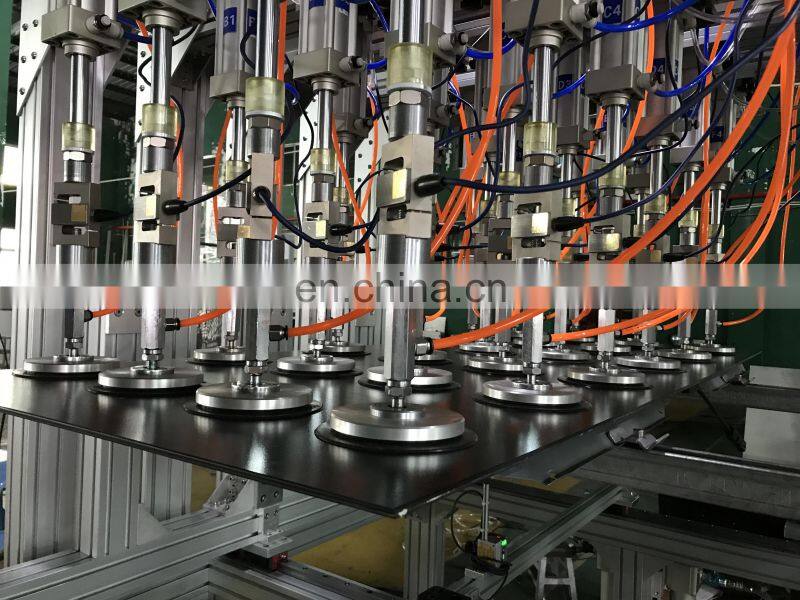

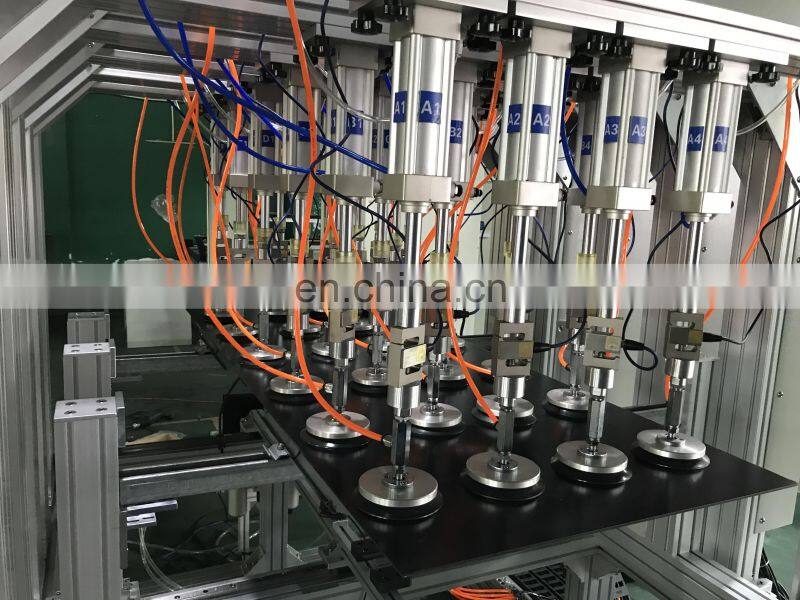

| 12.Cylinder:4 groups,in total 8 pieces Single the maximum output>200kg Telescopic stroke:125mm | |||||||||||
| 13.Sucker:8 groups,in total 32 pieces | |||||||||||
| Sucker diameter:120mm | |||||||||||
| Sucker(with cylinder) | |||||||||||
| Sucker can rotation angle≥15° | |||||||||||
| 14.Operate system | |||||||||||
| 14.1.Computer control software research and development by HOTOTECH,easy operate and stability. | |||||||||||
| 14.2.Software with Chinese and English language,can change each other. | |||||||||||
| 14.3.Real-time show pressure,deformation,test time,cycle times,current continuity | |||||||||||
| 14.4.Real-time draw and show pressure and deformation value. | |||||||||||
| 14.5.Real-time show every cylinder force value and draw force value curve | |||||||||||
| 14.6 Testing data real-time save,inquiry and print | |||||||||||
| 14.7.Testing data export is World,Excel,PDF,JPG etc format | |||||||||||
| 14.8.Fault alarm function |
